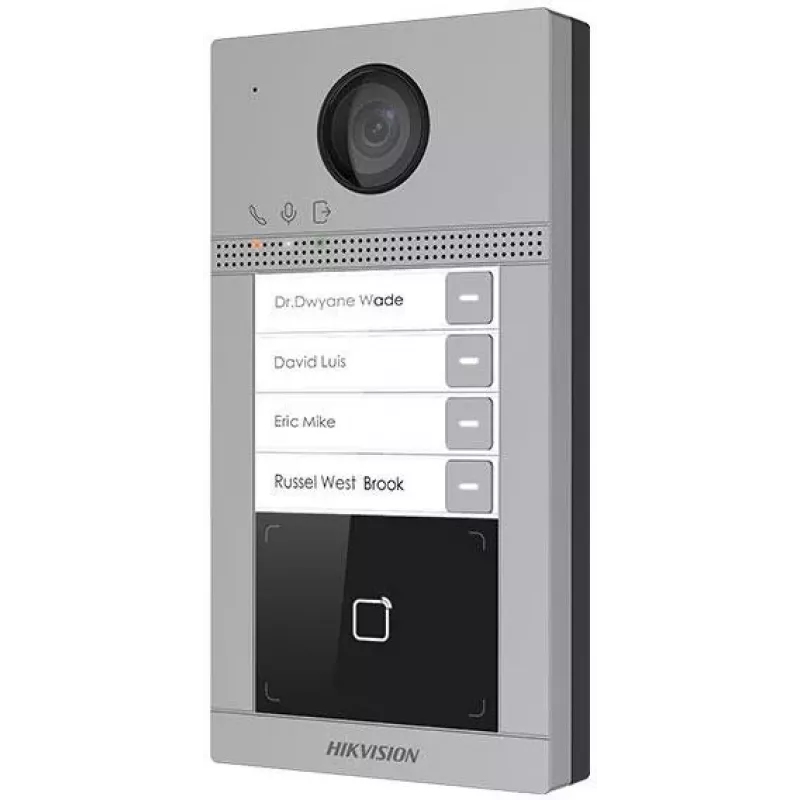

Hikvision DS-KV8413-WME1(C)/Surface videoportero panel de superficie, 2 MP, Wi-Fi, PoE, negro

The Hikvision DS-KV8413-WME1(C)/Surface is a high-performance video doorbell panel designed for residential and commercial access control. Featuring a 2 MP camera with 1920x1080 resolution, wide 129° horizontal field of view, and IR supplement up to 3 meters, it ensures clear video and audio communication day and night. Built with an aluminum alloy housing and rated IP65 and IK08, it withstands harsh outdoor conditions. The panel supports both 12 VDC and PoE power, includes Wi-Fi 2.4 GHz connectivity, and offers 4 alarm inputs and 2 relay outputs for flexible integration.

Advantages

This video doorbell panel combines high-definition video, robust weatherproofing, and versatile connectivity. Its surface-mount design simplifies installation, while the built-in microphone and loudspeaker enable two-way audio. The IR supplement provides clear images even in low light, and the wide field of view covers large entry areas. With support for up to 128 GB TF card storage, you can record events locally. The panel's compatibility with Hikvision systems ensures seamless integration into existing security setups.

Suitable for

• Residential entry points
• Office building entrances
• Apartment complexes
• Small business premises
• Any location requiring secure video door answering

Key specifications

• Camera: 2 MP (1920x1080)
• Field of View: Horizontal 129°, Vertical 75°
• Supplement Light: IR up to 3 m
• Audio: Built-in omnidirectional microphone and loudspeaker
• Video Compression: H.264
• Network: 10/100 Mbps Ethernet, Wi-Fi 2.4 GHz (802.11b/g/n)
• Power: 12 VDC or PoE (IEEE 802.3af), <10 W
• Ingress Protection: IP65, IK08
• Storage: TF card up to 128 GB
• Alarm Input: 4-channel
• Relay Output: 2 (1 main lock, 1 auxiliary)
• RS-485: 1
• Operating Temperature: -40°C to 53°C
• Material: Aluminum alloy
• Mounting: Surface mount

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface is flat and sturdy. Pair with Hikvision indoor stations or NVRs for a complete system. Test Wi-Fi signal strength before installation if using wireless connectivity.
