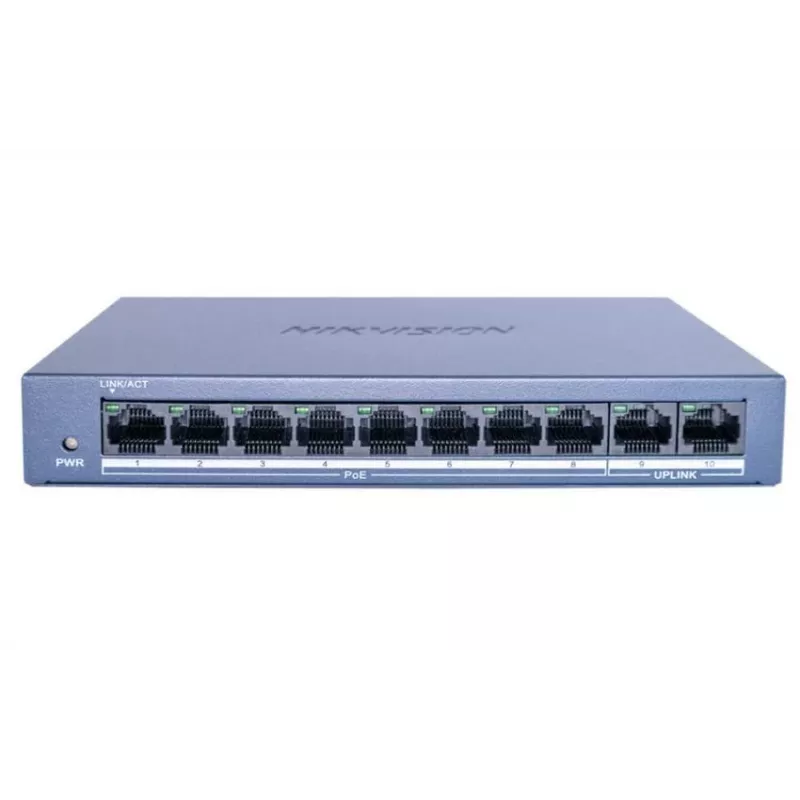

Hikvision DS-XS0110-P Switch PoE+ no gestionado de 10 puertos (8 puertos PoE+, presupuesto 110W)

The Hikvision DS-XS0110-P is a high-performance 10-port unmanaged PoE+ switch designed for small to medium-sized business networks. With 8 PoE+ ports and a total power budget of 110W, it delivers reliable power and data to IP cameras, access points, and other PoE devices. The switch features two additional uplink ports for flexible network expansion, all supporting Gigabit speeds. Its plug-and-play design requires no configuration, making it ideal for quick deployment.

Advantages

This switch offers a cost-effective solution for expanding your network with PoE capabilities. The 110W power budget supports up to 8 devices with up to 30W per port, eliminating the need for separate power supplies. With a switching capacity of 20 Gbps and jumbo frame support, it ensures smooth data transfer for bandwidth-intensive applications. The compact desktop and wall-mountable design saves space, while the 6 KV surge protection enhances reliability in challenging environments.

Suitable for

• Small office/home office (SOHO) networks
• IP surveillance systems (up to 8 cameras)
• Wireless access point deployments
• VoIP phone systems
• Retail and hospitality environments

Key specifications

• Total Ports: 10 (8 PoE+ 10/100/1000 Mbps + 2 uplink 10/100/1000 Mbps)
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 110 W
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K entries
• Jumbo Frame Support: 10 KB
• Management: Unmanaged
• Power Supply: Internal AC 100-240V
• Operating Temperature: 0°C to 40°C
• Mounting: Desktop, Wall-mount

Recommendations

For optimal performance, use high-quality Cat5e or Cat6 Ethernet cables. This switch is ideal for powering Hikvision IP cameras and other PoE devices. Ensure the total power consumption of connected devices does not exceed 110W.
