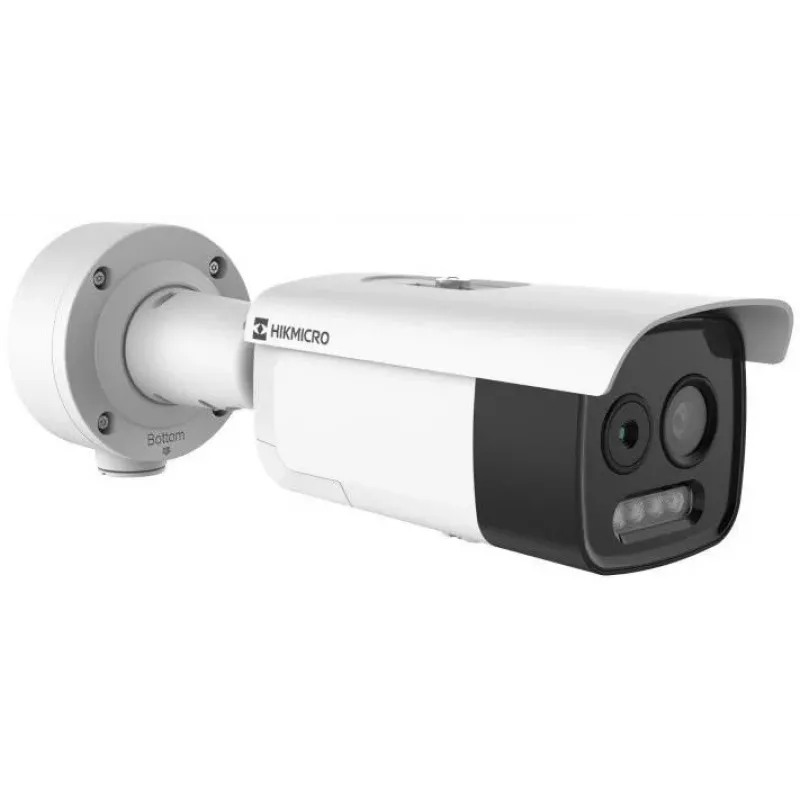

Hikvision HM-TD2618-10/G0/T1A Cámara de red térmica y óptica

The Hikvision HM-TD2618-10/G0/T1A is a dual-sensor network camera combining thermal and optical imaging for reliable perimeter protection and surveillance in challenging environments. With a thermal resolution of 160×120 (upscaled to 320×240) and a 4 MP optical sensor, it delivers clear images day and night. Designed for outdoor use, it features IP66 ingress protection and operates in temperatures from -40 °C to 65 °C.

Advantages

This camera offers the advantage of dual detection: thermal imaging for absolute detection in complete darkness or adverse weather, and optical imaging for detailed visual verification. The built-in IR range of up to 30 m ensures visibility even in zero-light conditions. With H.265 compression, it reduces bandwidth and storage requirements without sacrificing quality.

Suitable for

• Perimeter security for industrial sites, warehouses, and critical infrastructure
• Outdoor surveillance in remote or harsh environments
• Applications requiring 24/7 monitoring with both thermal and visual confirmation

Key specifications

• Thermal sensor: 160×120 resolution, 17 μm pixel pitch, NETD < 40 mK
• Thermal lens: 10 mm, FOV 15.0° × 11.2°
• Optical sensor: 4 MP (2688×1520) 1/2.7" Progressive Scan CMOS
• Optical lens: 4 mm, FOV 84° × 44.8°
• Min. illumination: Color 0.0089 Lux, B/W 0.0018 Lux, 0 Lux with IR
• IR range: Up to 30 m
• Video compression: H.265/H.264/MJPEG
• Storage: MicroSD/SDHC/SDXC slot up to 256 GB
• Network: 1 RJ45 10M/100M Ethernet
• Power: 12 VDC, PoE (802.3af), max 8 W
• Alarm: 1 input, 1 output
• IP66 rated, operating temperature -40 °C to 65 °C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with a clear view of the area to be monitored. The thermal channel is ideal for detecting intrusions at long range, while the optical channel provides detailed identification when needed.
