Hikvision Hybrid HD DS-KIS313-P(B) kit de videoportero

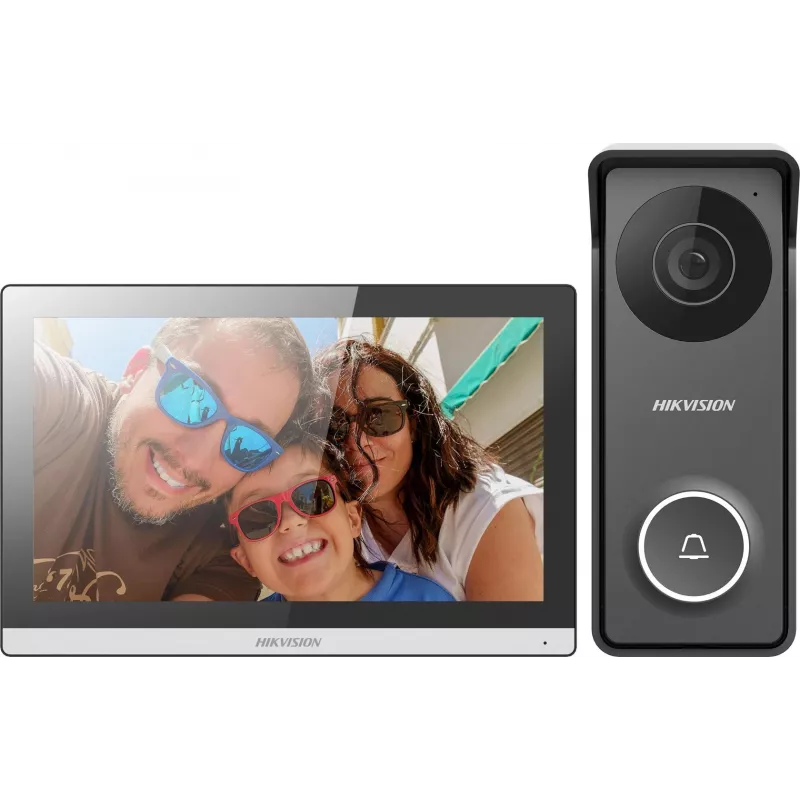

The Hikvision Hybrid HD DS-KIS313-P(B) Video Intercom Kit includes an outdoor door station with a 1280 × 720 resolution camera and IR illumination up to 3 meters, and an indoor monitor with a 7" color TFT LCD touchscreen. The system supports up to 3 monitors and 2 door stations, and the monitor features built-in Wi-Fi for remote access via the Hik-Connect mobile app.

Key features

• High-quality image: outdoor camera with 1280 × 720p resolution and IR illumination up to 3 m
• Rugged construction: door station with IP65 and IK08 ratings
• Wireless connectivity: monitor with built-in Wi-Fi for remote access and control via Hik-Connect app
• Expandable: supports up to 3 monitors and 2 door stations
• microSD card slot: expandable memory up to 128 GB for recording

Specifications

• Brand: Hikvision
• Model: DS-KIS313-P(B)
• Door station camera: color CMOS Low Illumination 2Mpx HD
• Compression standard: H.264
• Resolution: 1280×720 (HD)
• IR range: up to 3 m
• Viewing angle: horizontal 117°, vertical 70°
• Audio: built-in microphone and speaker
• Max sub monitors: 3
• Max sub door stations: 1
• Lock control: 1 relay, 30 V, 1 A
• Debug ports: 1
• 4-wire interface: 1
• Buttons: 1 physical button
• Power: 12 V DC
• Power consumption: ≤4 W
• Operating temperature: -30°C ~ +60°C
• Humidity: 10% ~ 90%
• Alarm: 1 tamper contact
• Ingress protection: IP65
• Impact protection: IK08
• Installation: surface mount
• Material: aluminum, plastic
• Weight: 200 g
• Dimensions (W×H×D): 55 × 145 × 24 mm
• Monitor operating system: Embedded Linux
• ROM: 32 MB
• RAM: 128 MB
• Display: 7" color TFT LCD
• Display resolution: 1024×600
• Brightness: 250 cd/m²
• Display viewing angles: horizontal 160°, vertical 130°
• Touchscreen: capacitive
• Audio compression: G.711 U, G.711 A
• Bitrate: 64 Kbps
• Audio enhancement: noise suppression and echo cancellation
• Max extensions: 2
• Max intercoms: 2
• Max analog cameras: 1
• Wi-Fi: 802.11b/g/n
• Alarm inputs: 2
• microSD slot: 1, max. 128 GB
• Debug ports: 2
• 4-wire interface: 4
• Monitor power: 12 V DC (power supply included)
• Monitor power consumption: ≤5 W
• Monitor operating temperature: -10°C ~ +50°C
• Monitor humidity: 10% ~ 90%
• Monitor installation: wall mount
• Monitor color: black, silver
• Monitor dimensions (W×H×D): 175 × 113.5 × 18.1 mm
• Monitor weight: 260 g
• Languages: Polish, English, German, French, Bulgarian, Hungarian, Greek, Italian, Czech, Slovak, Dutch, Portuguese, Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Mongolian, Ukrainian, Lithuanian, Traditional Chinese
