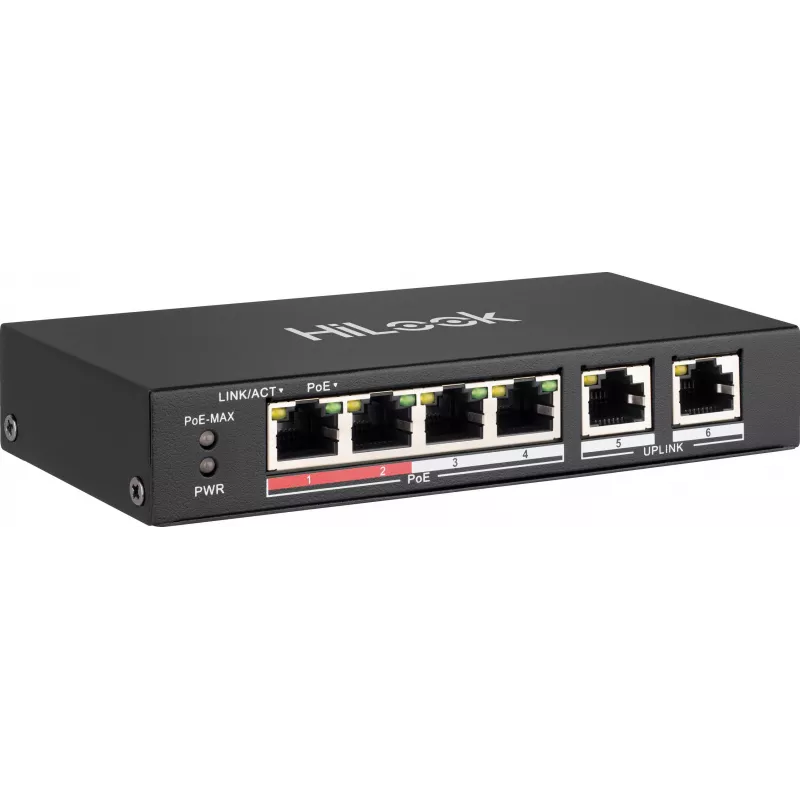

Hilook NS-0106P-35 Switch PoE de 4 puertos, 6 puertos, 10/100 Mbps, presupuesto PoE 35W, no gestionado

The Hilook NS-0106P-35 is a high-performance, unmanaged PoE switch designed for small to medium-sized businesses and surveillance applications. With 4 PoE ports and a total power budget of 35W, it provides reliable power and data transmission for IP cameras, access points, and other PoE devices. The switch features 2 additional uplink ports for flexible network expansion, supporting plug-and-play installation for quick deployment.

Advantages

This switch offers cost-effective network expansion with PoE support, eliminating the need for separate power cables. Its extended mode enables transmission distances up to 250 meters, ideal for remote installations. The robust surge protection of 6 KV on PoE ports ensures device safety in challenging environments.

Suitable for

• IP surveillance systems
• Wireless access points
• Small office/home office networks
• Industrial automation

Key specifications

• Total ports: 6 (4 PoE + 2 uplink)
• Port speed: 10/100 Mbps
• PoE standard: IEEE 802.3af/at
• Total PoE power budget: 35 W
• Max power per PoE port: 30 W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.8928 Mpps
• MAC address table: 2K
• Jumbo frame support: 4K
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• Transmission distance: 100 m (standard), 250 m (extended)
• Power supply: 48 VDC, 0.8 A external adapter
• Operating temperature: -10°C to 55°C (14°F to 131°F)
• Humidity: 5% to 95% RH, non-condensing
• Surge protection: 6 KV for PoE ports
• Management: Unmanaged

Recommendations

For optimal performance, use with IEEE 802.3af/at compliant PoE devices. Ensure adequate ventilation and avoid exceeding the total PoE power budget. The extended mode is recommended for distances beyond 100 meters but may reduce data rate.
