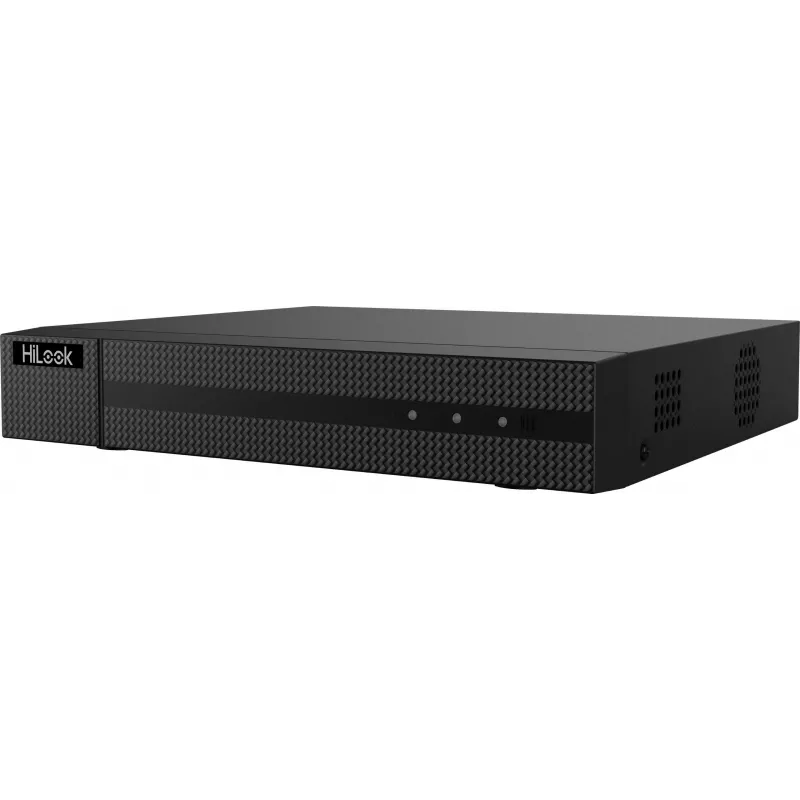

Grabador de vídeo en red HILOOK NVR-108MH-D/8P(D) 8 canales 5MP PoE

Setting up a multi-camera security system often means dealing with a tangle of power adapters and complex wiring. The HILOOK NVR-108MH-D/8P(D) solves this by integrating eight PoE ports directly into the recorder, so each camera gets both data and power over a single cable. This 8-channel NVR supports up to 5MP resolution, delivering sharp, detailed footage for reliable surveillance.

Who is it for

This NVR is ideal for small businesses, retail shops, warehouses, and residential properties that need a dependable multi-camera security solution. It is especially suited for installations with up to eight IP cameras, providing a centralized system for recording, monitoring, and playback.

Main features

• 8-channel video input supporting up to 5MP resolution
• 8 built-in PoE ports with 75W total power budget
• H.265+/H.265 dual codec for efficient storage and bandwidth
• Supports one SATA HDD up to 6TB for long-term recording
• HDMI and VGA outputs with up to 1080p resolution
• Plug-and-play camera connection for quick setup
• 60Mbps incoming and outgoing bandwidth
• 2 USB 2.0 ports for backup and mouse
• Synchronous playback of up to 8 channels

Specifications

• Video Input Channels: 8
• Max Recording Resolution: 5MP
• PoE Ports: 8
• PoE Power Budget: 75W
• Video Compression: H.265+/H.265/H.264+/H.264
• SATA Interface: 1 x SATA (up to 6TB)
• HDMI Output: up to 1920×1080p
• VGA Output: up to 1920×1080p
• Incoming/Outgoing Bandwidth: 60 Mbps each
• Ethernet: 1x RJ45 10/100 Mbps
• USB: 2x USB 2.0
• Power Supply: 48 VDC
• Power Consumption (without HDD): ≤10W
• Decoding Capability: 4-ch@1080p (25 fps)
• Synchronous Playback: 8-ch
• Audio Output: 1-ch, RCA
• Audio Input: 1-ch, RCA
• Operating Temperature: -10 °C to +55 °C

Tips

For optimal performance, use H.265+ compatible cameras to maximize storage efficiency. Ensure the total PoE power consumption of connected cameras does not exceed 75W. When installing, leave adequate ventilation around the NVR to maintain proper operating temperature.
