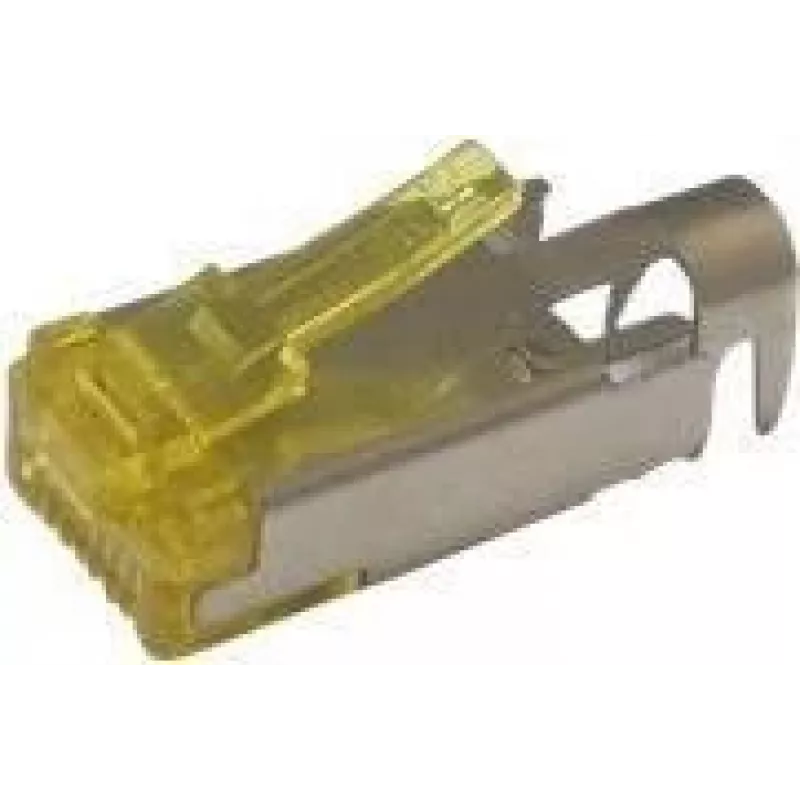

Hirose TM31P-TM-88P(01) conector RJ-45 STP CAT6a field terminable, amarillo transparente

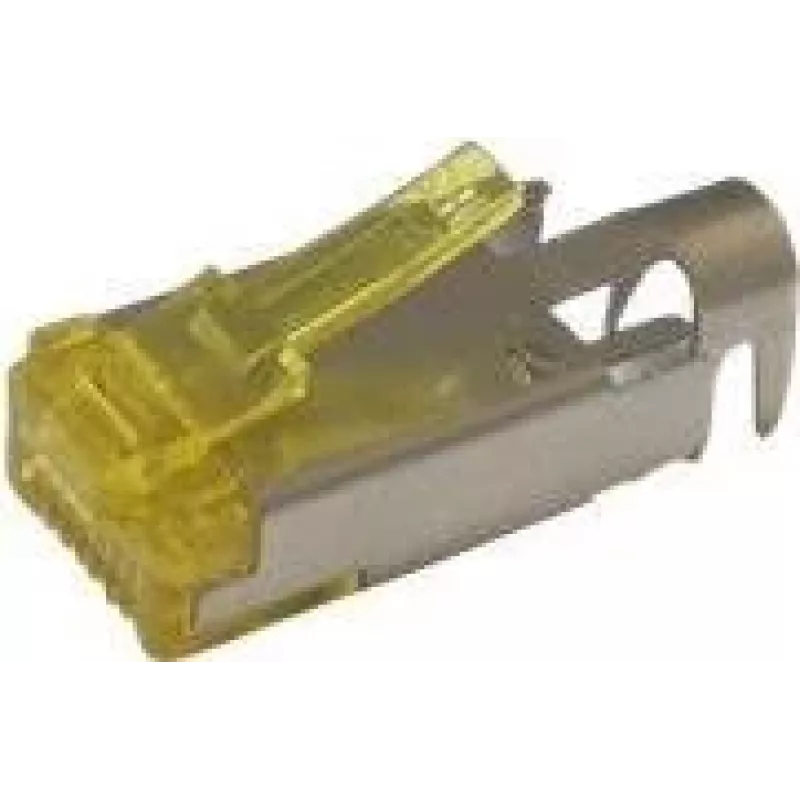

Network technicians and installers who terminate shielded Ethernet cabling in the field will appreciate the Hirose TM31P-TM-88P(01) RJ-45 connector. This male plug is designed for CAT6a shielded twisted pair (STP) networks and supports solid or stranded wire from 22 to 26 AWG. The clear yellow polycarbonate housing allows visual inspection of the termination, while gold-plated contacts ensure reliable signal integrity.

Key specifications

• Connector type: RJ-45 male (plug)
• Category: CAT6a (Category 6a)
• Shielding: STP (Shielded Twisted Pair)
• Termination: Field terminable, no special tool required
• Positions/contacts: 8P8C
• Contact plating: Gold (50µ" over nickel)
• Housing material: Polycarbonate (PC), clear yellow
• Wire compatibility: Solid and stranded, 22-26 AWG
• Impedance: 100 Ohm
• Operating temperature: -10°C to +60°C
• Durability: 750 mating cycles
• Flammability rating: UL94 V-0
• RoHS compliant

Why choose it

The TM31 series connector combines robust shielding with ease of installation. Its field-terminable design saves time on site, and the clear housing helps verify correct wire placement before crimping. Gold contacts resist corrosion and maintain performance over many insertions.

Ideal use cases

• Terminating CAT6a STP cables in patch panels, wall outlets, or equipment connections
• Industrial Ethernet installations requiring reliable shielded connections
• Field repairs or custom cable assemblies where pre-terminated cables are impractical

Good to know

The connector is part of Hirose's TM31 series, known for high-quality network components. It supports 100 Ohm impedance, matching CAT6a cable standards for 10 Gigabit Ethernet up to 100 meters.
