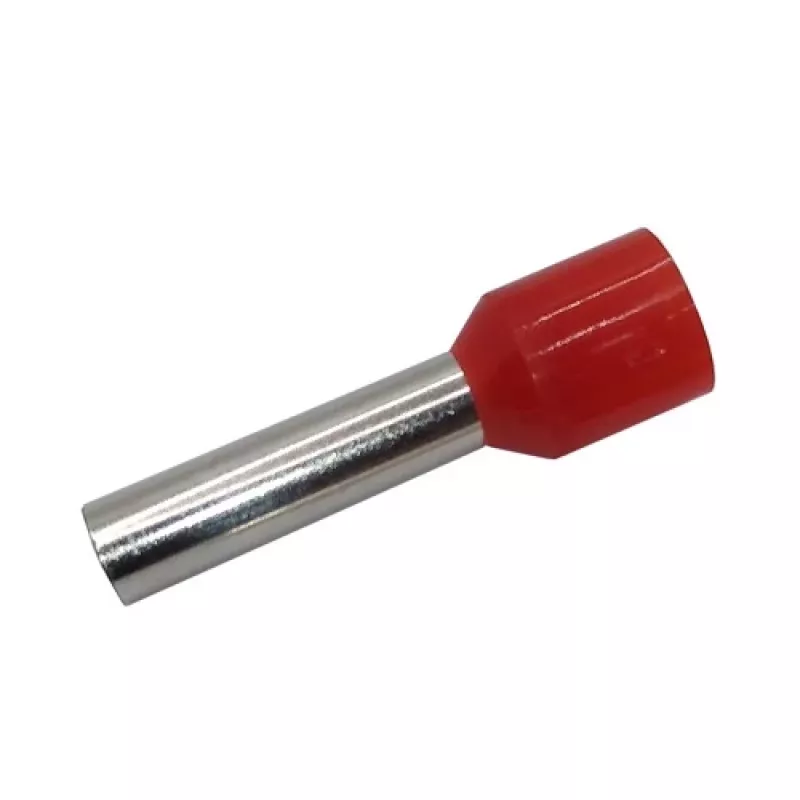

Terminal crimpado aislado 10mm²/7AWG para cable, cobre, rojo, 100 uds.

These crimp insulated terminals are designed for secure and reliable connections on 10.0mm² (7 AWG) stranded copper wire. Each terminal features a pure copper tube with a tin-plated finish for excellent electrical conductivity and corrosion resistance, encased in a durable red vinyl insulation sleeve. The 180° straight entry angle allows for straightforward inline wiring. This pack contains 100 pieces, suitable for connecting copper wires to electrical devices, other wires, or surfaces.

Key features

• Cable cross-section: 10.0mm² / 7 AWG
• Material: Pure copper with tin-plated surface
• Insulation: Red vinyl, color-coded for wire size identification
• Connection angle: 180° (horizontal/straight)
• Total terminal length: 29.2mm; tube length: 18mm
• Inner tube diameter: 4.5mm; outer tube diameter: 4.9mm
• Insulated diameter: 7.8mm; pack quantity: 100 pieces
