Amoladora de disco Holzmann TSM250_230V

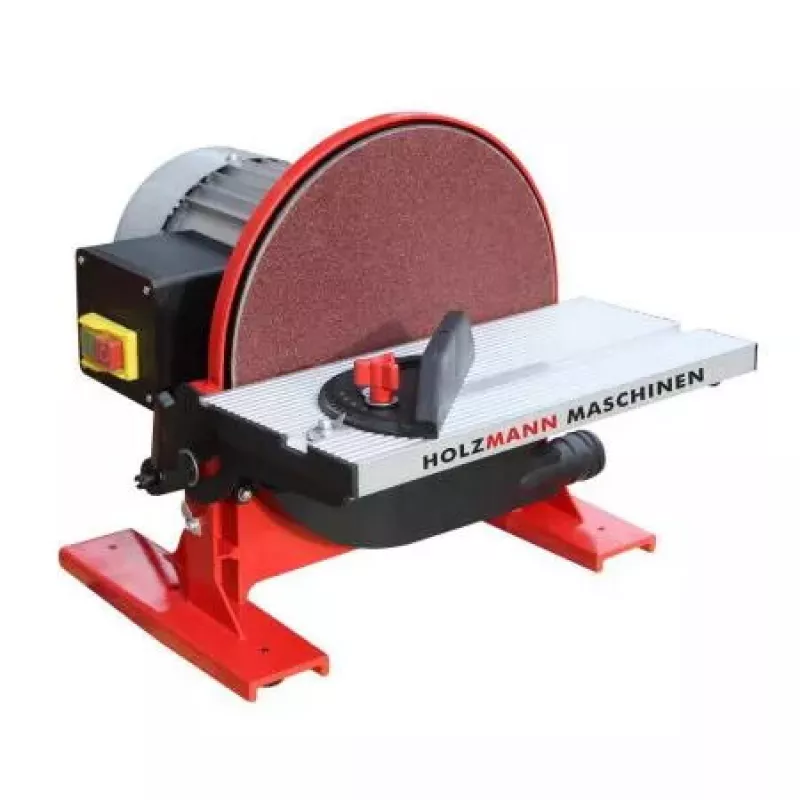

The Holzmann TSM250_230V is a compact disc sander with a 254 mm sanding disc and a 550 W motor. Designed for precision sanding, it features an adjustable grinding table guided in a T-slot miter fence and a Ø35 mm suction port for connection to external extraction. The machine has a cast aluminium frame and an aluminium motor housing, with an aluminium table for stable, corrosion-resistant support. At 230 V and 50 Hz it is suitable for typical workshop electrical supplies and weighs 11 kg.

Advantages

The disc sander offers a sturdy cast aluminium frame and aluminium table for long-term rigidity and reduced vibration. The adjustable grinding table tilts up to 45° and is guided in a T-slot miter fence for accurate angled sanding. A Ø35 mm suction port allows connection to external dust extraction to maintain a cleaner workspace. The motor in an aluminium housing improves heat dissipation during extended use while the compact 11 kg design makes the unit suitable for benchtop or fixed setups.

Suitable for

• Sanding flat surfaces and edges on wood and wood-based materials
• Precision angled sanding up to 45° using the tilting grinding table
• Workshop use with external dust extraction systems

Key specifications

• Brand: Holzmann
• Model: TSM250_230V (MPN: TSM250_230V)
• Sanding disc diameter: 254 mm
• Power: 550 W
• Voltage / Frequency: 230 V / 50 Hz
• Weight: 11 kg
• Suction port diameter: Ø35 mm
• Adjustable grinding table: up to 45°, guided in T-slot miter fence
• Materials: cast aluminium frame, aluminium motor housing and table

How to use

Secure the sander on a stable benchtop or mount it in a fixed position. Fit appropriate abrasive discs to the 254 mm sanding disc following the manufacturer's mounting instructions. Adjust the grinding table angle up to 45° and lock it in place when performing angled sanding operations. Connect a Ø35 mm dust extraction hose to the suction port to reduce dust. Operate the machine at the specified supply 230 V / 50 Hz and feed workpieces steadily against the sanding disc, using the miter fence and table for guidance and support.

Recommendations

Use appropriate personal protective equipment (eye and respiratory protection). Choose abrasive grade and grit size according to material and desired finish. Ensure dust extraction is connected when sanding materials that generate fine dust, and allow the motor to cool during extended continuous use.
