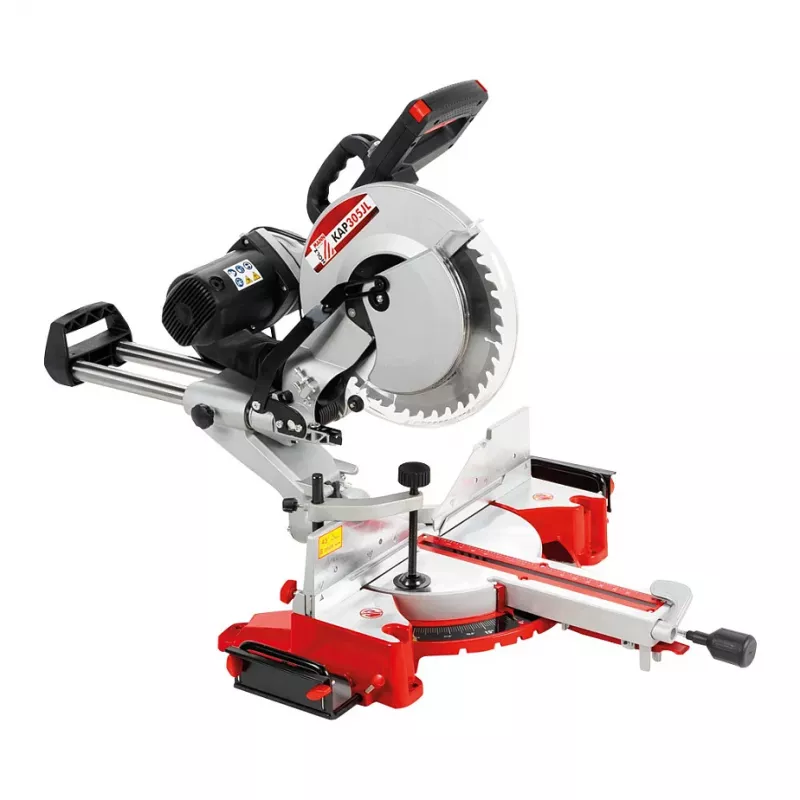

Holzmann KAP305JL 305 mm Sierra de ingletar y tronzar 1600 W 230 V con guía láser

The Holzmann KAP305JL sliding mitre saw combines a powerful 1600 W motor with a large 305 mm blade to deliver clean, accurate cuts in hardwoods, softwoods, and composite materials. Its sliding function extends crosscut capacity to 330 mm at 90°, while the dual bevel and mitre adjustments let you handle compound angles without flipping the workpiece. A laser guide and soft start add precision and control, making this saw a dependable choice for workshops and job sites that demand repeatable results.

Highlights

• 1600 W motor with soft start for smooth acceleration and reduced blade wear
• 305 mm blade with 30 mm bore for deep cutting capacity

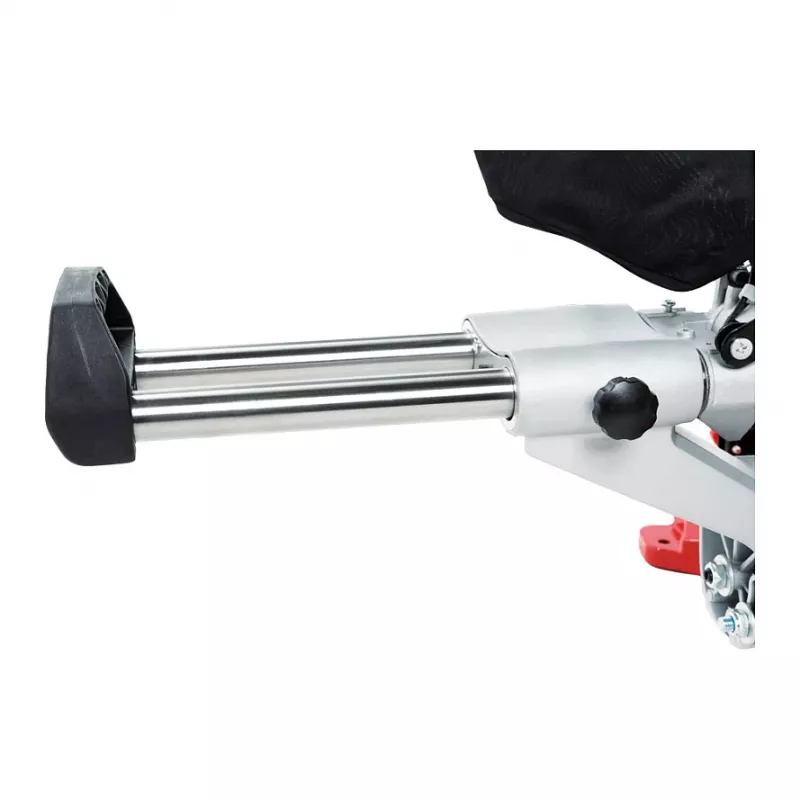

• Sliding rails enable crosscuts up to 330 mm at 90°
• Mitre range -45° to +45° and bevel range 0° to 45° left for versatile angled cuts
• Integrated laser guide for precise cut line alignment
• Die-cast aluminium base for stability and reduced weight
• 35 mm dust extraction port for cleaner work environment

In daily use

The KAP305JL is built for efficiency: the sliding mechanism glides smoothly on precision rails, while the laser projects a clear cutting line, eliminating guesswork. The soft start prevents sudden jerks, protecting both the operator and the material. With a maximum cutting depth of 105 mm at 90°, the saw easily handles thick stock, and the die-cast aluminium base keeps the unit rigid during heavy cuts. The 35 mm dust port connects to standard extraction systems, keeping the workspace clean and the cut line visible.

Full specifications

• Motor power (S1): 1600 W
• Voltage: 230 V / 50 Hz
• No-load speed: 4700 rpm
• Saw blade diameter: 305 mm
• Saw blade bore: 30 mm
• Cutting capacity 90°/90°: 105 x 330 mm
• Cutting capacity 45° mitre / 90° bevel: 105 x 230 mm
• Cutting capacity 90° mitre / 45° bevel: 60 x 330 mm
• Cutting capacity 45° mitre / 45° bevel: 60 x 230 mm

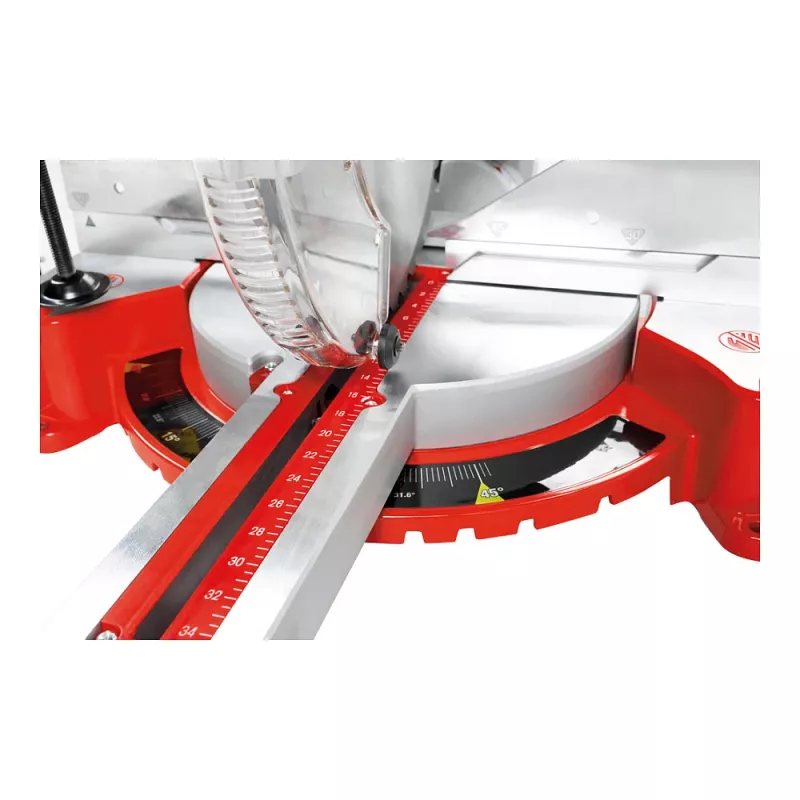

• Mitre angle range: -45° to +45°
• Bevel angle range: 0° to 45° (left)
• Sliding function: Yes
• Laser guide: Yes
• Soft start: Yes
• Dust extraction port diameter: 35 mm
• Base material: Die-cast aluminium
• Sound power level Lwa: 106 dB(A)

Final note

The Holzmann KAP305JL is a robust, feature-rich sliding mitre saw that delivers professional-grade performance for demanding cutting tasks. Its combination of power, precision, and safety features makes it a valuable addition to any serious woodworking setup.
