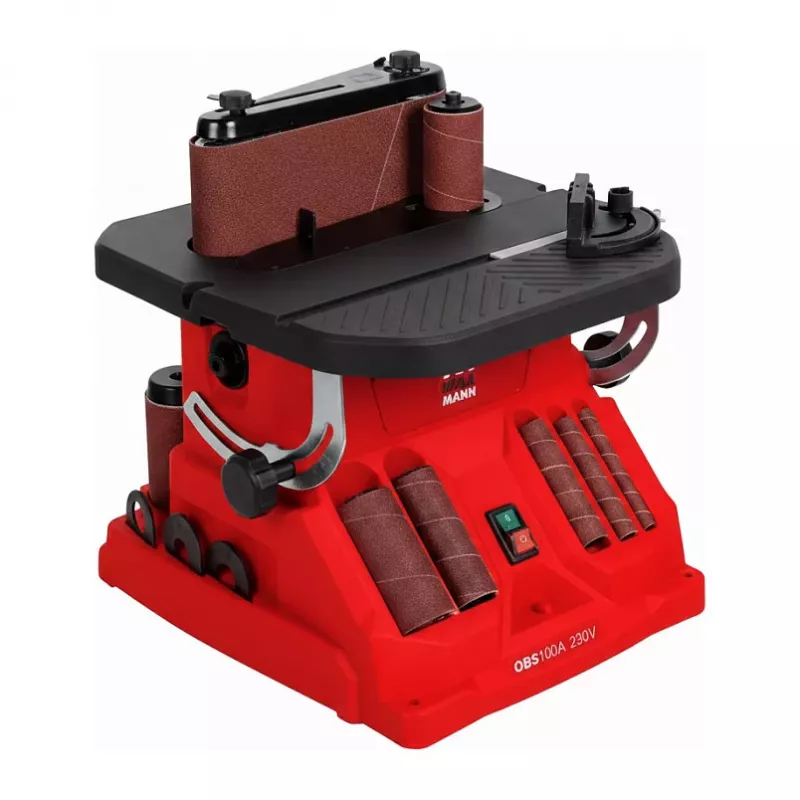

HOLZMANN MASCHINEN OBS100A_230V lijadora de banda y husillo 450 W 230 V

The HOLZMANN MASCHINEN OBS100A_230V is a versatile belt and oscillating spindle sander designed for precise sanding on wood, metal, and plastic. With a powerful 450 W motor and 230 V operation, it delivers consistent performance for workshops and hobbyists. The machine combines a 100 x 914 mm sanding belt with five interchangeable spindle diameters (6, 12, 19, 38, 50 mm) to handle flat surfaces, contours, and curved edges. The cast iron work table tilts from 0° to 45° for angled sanding, and the oscillation function (58 oscillations/min, 16 mm stroke) ensures a smooth finish. A 38 mm dust port keeps the workspace clean.

Advantages

Dual functionality saves space and cost. Oscillation reduces heat and improves surface quality. Cast iron table provides stability and vibration dampening. Quick belt and spindle changes enhance productivity.

Suitable for

• Woodworking: smoothing boards, shaping curves, sanding edges
• Metalworking: deburring, finishing, polishing
• DIY projects: furniture restoration, model making, craftwork

Key specifications

• Motor Power: 450 W (0.6 HP)
• Voltage: 230 V / 50 Hz
• Belt Speed: 8 m/s
• Belt Dimensions: 100 x 914 mm
• Spindle Diameters: 6, 12, 19, 38, 50 mm
• Oscillation Speed: 58 oscillations/min
• Oscillation Stroke: 16 mm
• Work Table: 430 x 410 mm, tilt 0°-45°
• Dust Port: 38 mm
• Includes: 1 sanding belt, 5 sanding sleeves

Recommendations

For best results, use high-quality sanding belts and sleeves. Always connect to a dust extractor. Suitable for continuous light to medium-duty use.
