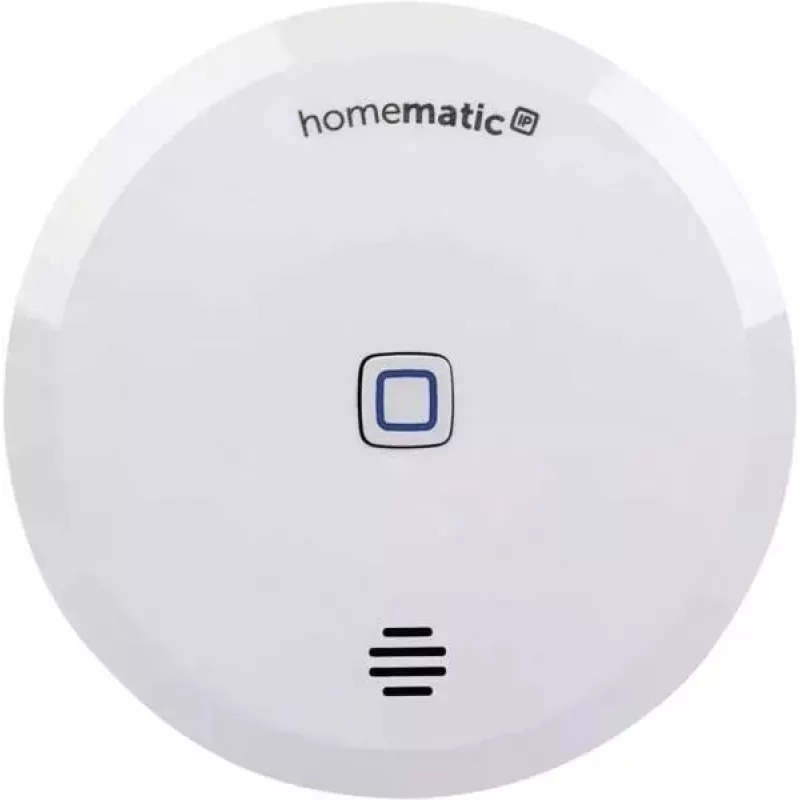

Homematic IP Water Sensor V2 HmIP-SWD-2

The Homematic IP Water Sensor V2 (HmIP-SWD-2) is a reliable water leak detector designed for early detection of water damage in your home. With its conductive water detection method, it alerts you immediately via acoustic siren, visual LED, and app notification when moisture is detected. The sensor also monitors temperature and tilt, providing frost warnings and tilt alerts for added safety.

Advantages

Early detection of water leaks prevents costly damage. The sensor is easy to install and integrates seamlessly into the Homematic IP smart home system. Battery-powered with up to 2 years of life, it offers flexible placement options including wall mount or free-standing.

Suitable for

• Basements, laundry rooms, and bathrooms
• Near washing machines, dishwashers, and water tanks
• Any area prone to water leaks or flooding

Key specifications

• Product Type: Water Leak Detector
• System Compatibility: Homematic IP
• Power Supply: 2x AAA (LR03) 1.5V batteries
• Battery Life: Up to 2 years (typical)
• Detection Method: Conductive water detection
• Additional Sensors: Tilt sensor, Temperature sensor
• Alarm Type: Acoustic siren (approx. 80 dB at 1m), Visual LED, App notification
• Radio Frequency: 868.3 MHz / 869.525 MHz
• Protection Class (Main Unit): IP44
• Operating Temperature: -10 to +55 °C
• Sensor Cable Length: 1.5 m
• Communication Protocol: Homematic IP (868 MHz)
• Mounting Options: Wall mount, Free-standing
• Housing Material: Polycarbonate (PC)
• Functions: Water detection, Tilt detection, Temperature monitoring, Frost warning
• Encryption: AES-128

Recommendations

For comprehensive protection, combine the Water Sensor V2 with other Homematic IP devices such as the Access Point and alarm systems. Place the sensor in critical areas and ensure the sensor cable is positioned where water is likely to accumulate.
