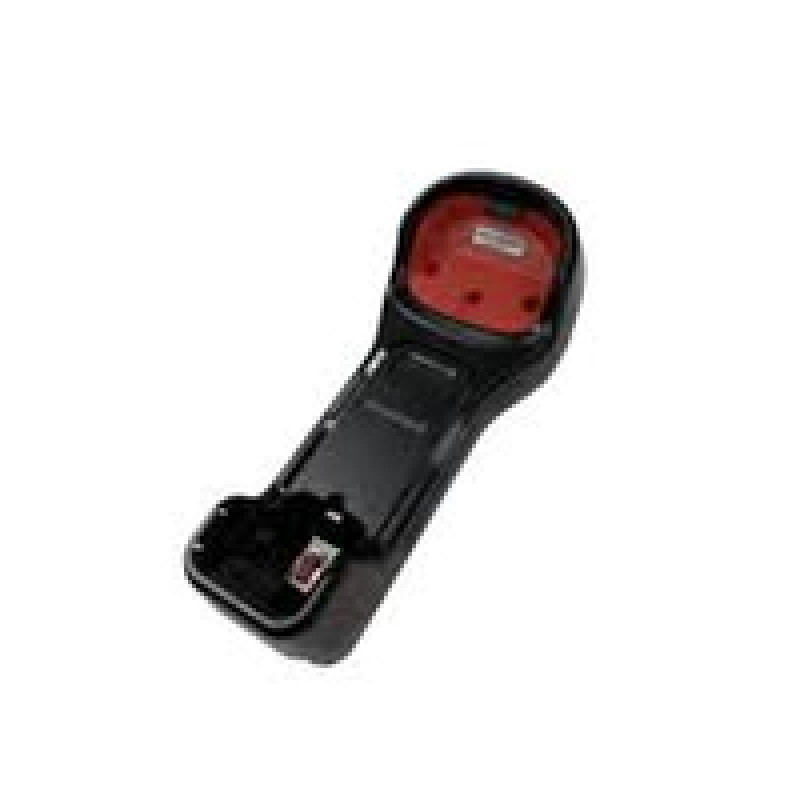

HONEYWELL Granit Ultra Base de carga y comunicación. Clase 1

The Honeywell CCB23-100BT-07N Granit Ultra Base is the dedicated charging and communication cradle engineered specifically for the Granit XP series of ultra-rugged scanners. Unlike generic third-party cradles, this base is built to the same extreme durability standards as the scanners themselves, ensuring reliable performance in the toughest industrial environments. With Class 1 Bluetooth technology, it provides an extended wireless range of up to 100 meters, allowing workers to roam freely without losing connection.

Highlights

• Class 1 Bluetooth for up to 100 m line-of-sight range
• Simultaneous charging and data communication
• Compatible with Honeywell Granit XP 1991iXR, 1991iSR, and 1991iER scanners
• Multiple host interfaces: USB (HID, Serial, IBM SurePOS), RS232, Keyboard Wedge
• IP41-rated enclosure for protection against dust and liquids
• Flexible mounting options: desktop or wall
• Clear LED indicators for power, communication, and charging status

In daily use

Place the base on a workbench or mount it on a wall near the point of use. The scanner simply drops into the cradle for charging, and the Bluetooth link automatically reconnects to the host system. The base handles all data transmission, so no separate dongle is needed. The industrial-grade plastic housing withstands knocks and spills, and the IP41 rating keeps out dust and dripping water. The three LEDs give instant visual confirmation of power, data link, and charge state.

Full specifications

• Product type: Charge and communication base
• Wireless technology: Bluetooth Class 1
• Bluetooth range: up to 100 m (330 ft) line of sight
• Host interfaces: USB (HID Keyboard, Serial, IBM SurePOS), RS232, Keyboard Wedge
• Compatibility: Honeywell Granit XP 1991iXR, 1991iSR, 1991iER
• Power input: 5 VDC (external power supply required, sold separately)
• Indicators: Power LED, Communication Status LED, Charging Status LED
• Mounting: Desktop or wall mount
• Color: Industrial black/grey
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 0% to 95% relative humidity, non-condensing
• Environmental sealing: IP41
• Material: High-durability industrial-grade plastic
• Certifications: CE, FCC, RoHS
• Included accessories: Base unit only (power supply and cables sold separately)
• Connectivity ports: 1x USB Type B, 1x power input jack

Final note

For maximum uptime and seamless integration with your Granit XP scanners, the Honeywell CCB23-100BT-07N is the only cradle that matches the scanner's ruggedness and performance. It is the reliable choice for warehousing, manufacturing, and field mobility applications.
