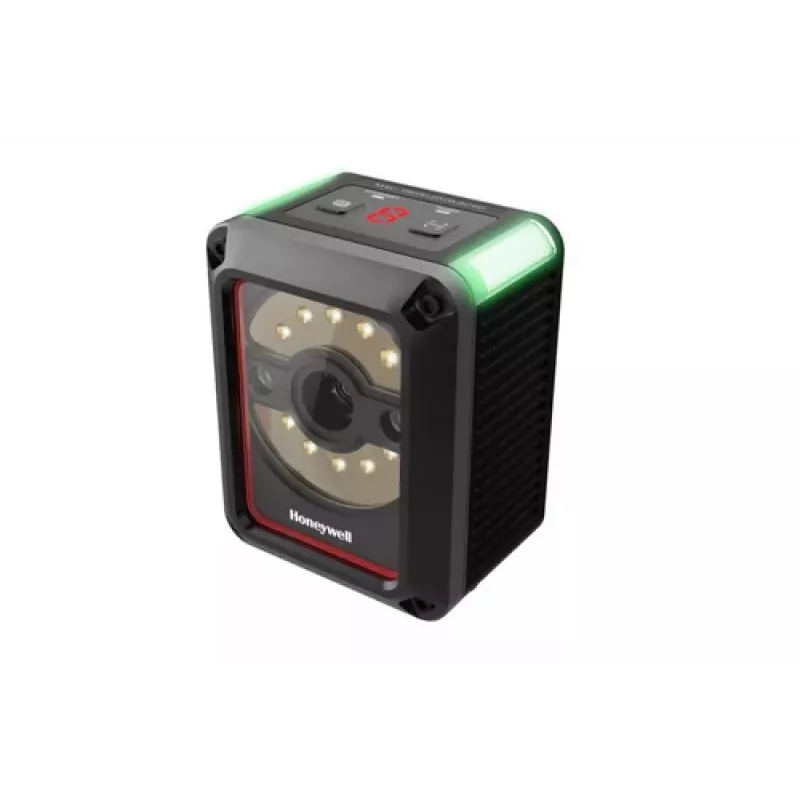

HONEYWELL HF810 gran angular 2D WA escáner de área DPM RS232 Ethernet negro - RS-485

A 1280 x 800 pixel CMOS sensor with wide-angle optics gives the Honeywell HF810 fixed industrial area imager the ability to read 1D, 2D, and Direct Part Marking (DPM) codes with exceptional speed and accuracy. This rugged scanner is built for demanding manufacturing and logistics environments, offering reliable performance even on challenging surfaces.

Overview

The HF810 is a fixed-mount industrial scanner designed for automated reading applications. It combines high-resolution imaging with advanced decoding algorithms to handle a wide range of barcode symbologies, including difficult DPM codes. The wide-angle field of view (60° horizontal, 40° vertical) reduces the need for precise positioning, while white LED illumination and red LED aiming ensure consistent reading in varying light conditions. With RS232, Ethernet, and RS-485 interfaces, it integrates seamlessly into industrial networks and control systems.

What stands out

• High-resolution 1280 x 800 CMOS sensor captures detailed images for reliable decoding.
• Wide-angle optics cover a large area, minimizing the need for multiple scanners.
• Supports 1D, 2D, and DPM codes, making it versatile for traceability applications.
• Rugged IP65-rated housing withstands dust and water jets, suitable for harsh environments.
• Multiple interfaces (RS232, Ethernet, RS-485) provide flexible connectivity options.
• Motion tolerance up to 3.5 m/s allows reading codes on moving parts or conveyors.

Technical details

• Scanner type: Fixed industrial area imager
• Decoding capability: 1D, 2D, Direct Part Marking (DPM)
• Image sensor: 1280 x 800 pixel CMOS
• Field of view: Horizontal 60°, Vertical 40°
• Illumination: White LED
• Aiming: Red LED
• Interfaces: RS232, Ethernet, RS-485, USB
• Input voltage: 5V DC to 30V DC
• Power consumption: 2.5 W (typical operating)
• IP rating: IP65
• Operating temperature: -20°C to 50°C
• Storage temperature: -40°C to 70°C
• Humidity: 5% to 95% RH, non-condensing
• Motion tolerance: Up to 3.5 m/s
• Drop specification: Withstands 1.5m drops to concrete
• Housing material: Industrial-grade plastic/metal
• Colour: Black
• Mounting: Multiple fixed mounting points
• Software features: Advanced data formatting, multi-code reading, OCR support
• Certifications: CE, FCC, RoHS, UL

Our verdict

The Honeywell HF810 is a robust and versatile fixed scanner that excels in industrial automation. Its wide-angle high-resolution imaging and DPM capability make it an excellent choice for traceability in manufacturing, while its rugged design and flexible interfaces ensure reliable operation in demanding environments.
