Honeywell PM45 Impresora de etiquetas compacta Transferencia térmica 203x203 DPI 350 mm/s Con cable

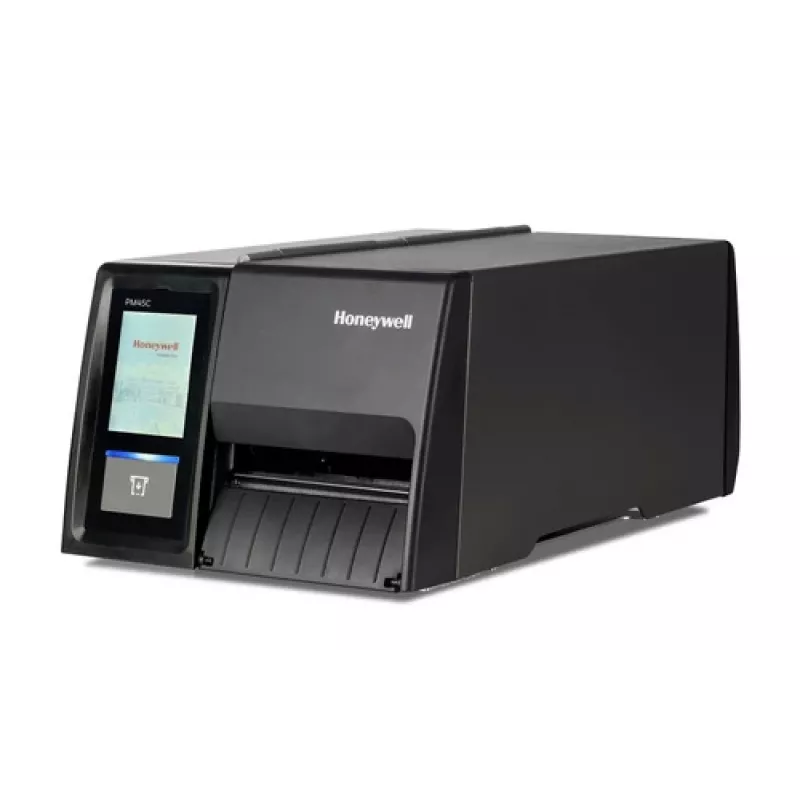

The Honeywell PM45 is a compact industrial thermal transfer label printer designed to support smart label solutions for manufacturing, warehousing and distribution. It delivers up to 203 x 203 DPI print resolution and a print speed of 350 mm/sec (up to 14 ips), with a maximum print width of 108 mm. Built on Honeywell's print platform, the PM45 offers robust all‑metal construction, an LCD display, wired Ethernet connectivity and flexible media support, making it suitable as a replacement for existing Honeywell or mixed printer fleets.

Advantages

The PM45 provides precise print registration (up to ±0.5 mm) for high‑quality barcodes, text and graphics even on small labels, and supports a wide range of media including 1‑inch core ribbons to extend time between resupplies. It includes advanced connectivity options and can be expanded with RFID, parallel, industrial and applicator interfaces. Embedded Smart Parse enables on‑printer label data adjustments without backend changes, while Operational Intelligence allows remote diagnostics and performance monitoring to reduce downtime and maintenance overhead.

Suitable for

• Manufacturing lines requiring high‑volume label printing and track‑and‑trace
• Warehouse and distribution centre labeling and inventory management
• Food & beverage and pharmaceutical labeling where print accuracy is critical
• Replacement of mixed or legacy printer fleets in automated environments

Key specifications

• Print technology: Thermal transfer
• Resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/sec (up to 14 ips)
• Maximum printing width: 108 mm
• Display: LCD
• Connectivity: Wired Ethernet LAN (WWAN options available on some configurations)
• Product colour: Black
• Weight: 12.6 kg

How to use

Install the PM45 on a stable surface and connect it to your network via the wired Ethernet port. Load thermal transfer media and ribbon according to the user manual, set the correct media type and print parameters via the LCD menu or web interface, and send print jobs from your host system using one of the supported print languages or network protocols. Use Smart Parse to adjust label layout, barcode sizing or fonts directly on the printer without modifying backend applications.

Recommendations

For reliable long‑term operation, use manufacturer‑recommended ribbons and media cores (including 1‑inch core ribbons where applicable), schedule routine platen roller and printhead checks, and enable Operational Intelligence for remote monitoring to detect issues early and minimise downtime.
