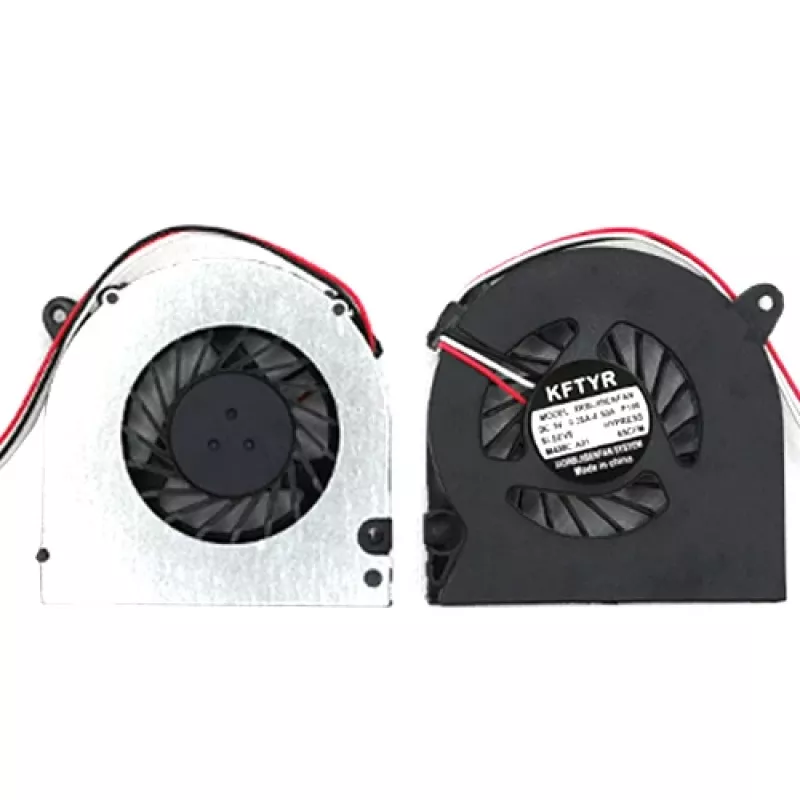

HP Compaq CQ515/CQ516 Ventilador de refrigeración de CPU para portátil

Overheating can cause performance throttling, unexpected shutdowns, and long-term damage to your laptop's processor. This CPU cooling fan is the direct replacement for the HP Compaq CQ515 and CQ516 series, restoring reliable thermal management to keep your system running smoothly.

Who is it for

This fan is for technicians and DIY users repairing an HP Compaq CQ515 or CQ516 laptop that suffers from overheating, fan noise, or fan failure. It replaces the original cooling assembly without the need for a full heatsink swap.

Main features

• Direct fit for HP Compaq CQ515 and CQ516 laptop series
• PWM speed control adjusts fan speed based on CPU temperature
• Hydraulic bearing for quiet operation and long life
• 29-blade design delivers high airflow for effective cooling
• 4-pin connector for power and speed feedback

Specifications

• Product Type: CPU Cooling Fan
• Intended Use: Laptop Internal Cooling
• Compatible Laptop Series: HP Compaq CQ515 Series, HP Compaq CQ516 Series
• Replaces OEM Part Numbers: KSB06105HA, UDQFRHR01CCM, 538302-001, 6043B0070001
• Connector Type: 4-Pin (4-Wire)
• Rated Voltage: DC 5V
• Rated Current: 0.28A
• Fan Speed Control: PWM (Pulse Width Modulation)
• Bearing Type: Hydraulic Bearing
• Material: High-grade Plastic, Copper
• Condition: New
• Installation Location: Internal CPU Heatsink Assembly
• Thermal Solution: Active Cooling
• Cable Length: Approx. 50mm
• Number of Blades: 29

Tips

Before installation, clean the old thermal paste from the heatsink and apply fresh paste for optimal heat transfer. Ensure the fan connector is securely seated to avoid intermittent operation.
