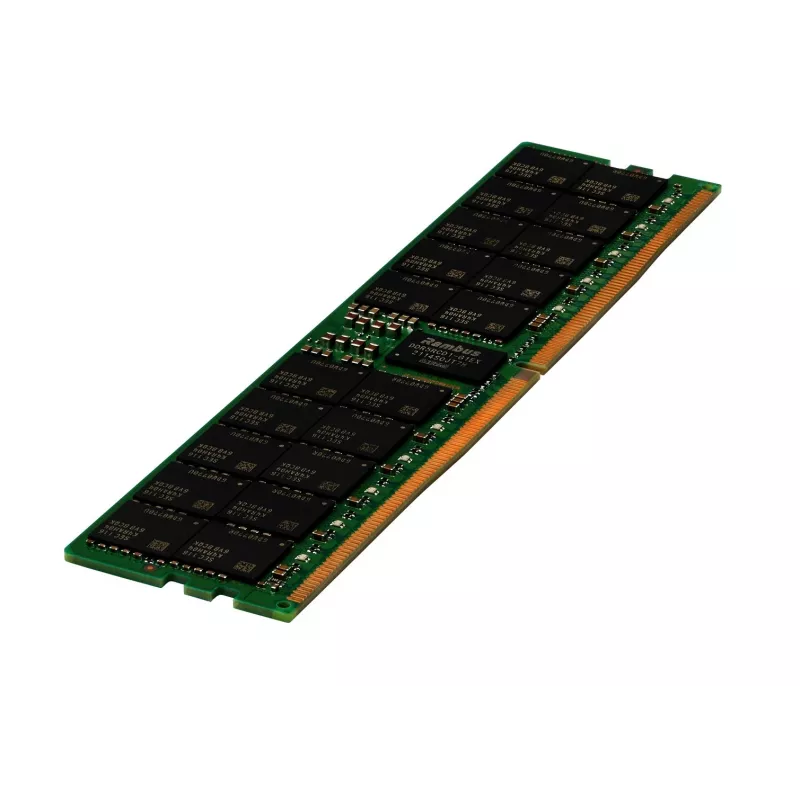

HP HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52 EC8 Registered DIMM 288-Pin

HP HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52 EC8 Registered DIMM is a server memory module designed for enterprise and data-center environments that require registered ECC memory. This 288-pin DIMM provides 32 GB capacity in a Dual Rank x8 configuration and operates at DDR5-6400 speed with CAS-52 latency. The module is intended for use in servers and compatible platforms where high throughput, reliability and memory capacity are essential for multitasking, virtualization and heavy database workloads.

Advantages

This HP HPE registered memory module delivers predictable performance and error-correcting reliability through ECC and registered buffering. It is qualified and tested to meet server-class requirements and to operate at DDR5-6400 throughput, offering a balance of speed and power efficiency suitable for dense memory configurations. Compatibility with HPE server memory management features enables optimized memory behavior when used in supported systems.

Suitable for

• Enterprise servers and rackmount systems requiring registered ECC memory
• Virtualization hosts running multiple VMs and containers
• Database servers and analytics platforms with large memory footprints
• Compute nodes in cloud and on-premises data centers

Key specifications

• Memory type: DDR5-6400
• Capacity: 32 GB (single module)
• Module configuration: Dual Rank x8
• Form factor: 288-pin DIMM (registered)
• CAS latency: CAS-52 (52-52-52 timing)
• Error correction: Registered ECC (EC8)

How to use

Install the module into a compatible server DIMM slot according to the platform vendor’s memory population rules and anti-static handling procedures. Ensure the system firmware supports DDR5-6400 registered ECC memory and follow the server manual for recommended slot order and mixing rules when adding modules. After installation, verify that the system recognizes the full 32 GB and check firmware/BIOS settings to confirm memory speed and ECC operation.

Recommendations

For optimal performance and reliability, use this HP HPE registered DDR5 memory in systems listed as supported by the server vendor and populate channels evenly. When upgrading, match ranks and speeds across modules where possible and update server firmware to the latest recommended release to ensure compatibility and to enable HPE-specific memory features.
