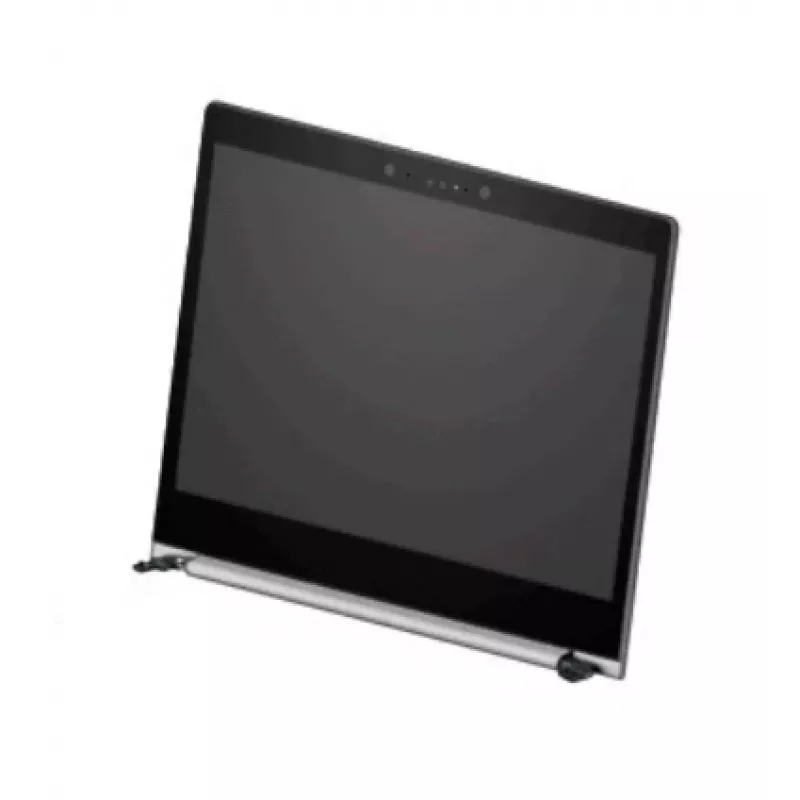

HP L02255-001 pantalla de repuesto para portátil

HP L02255-001 is a replacement LCD for the HP EliteBook 1040 G4. This display features a 14-inch UHD panel with anti-glare (AG) coating, integrated LED backlighting, WWAN capability, and an infrared camera with HDC support, providing clear images and compatibility with biometric and connectivity options of the original device.

Advantages

The panel delivers high resolution and anti-glare properties to reduce reflections and improve readability in bright environments. Integrated LED backlighting ensures uniform brightness and long service life. WWAN compatibility preserves mobile data connectivity options, while the built-in infrared camera with HDC enables secure facial recognition and video conferencing without additional modules.

Suitable for

• Repairing or replacing a damaged or faulty display on HP EliteBook 1040 G4
• Restoring WWAN and infrared camera functionality
• Users who need a 14-inch UHD anti-glare screen with LED backlight

Key specifications

• Manufacturer: HP
• Model / MPN: L02255-001
• EAN: 5706998895509
• Size: 14-inch
• Resolution: UHD
• Panel finish: Anti-glare (AG)
• Backlight: LED
• Features: WWAN capability, HDC and infrared camera

How to use

Power off the laptop and disconnect all cables and the battery according to HP service instructions. Remove the bezel and the existing display assembly carefully, then install the L02255-001 panel into the laptop frame, reconnect the display cable, camera and WWAN connectors as applicable. Reassemble the bezel and battery, then power on the laptop and verify display, camera and WWAN functions.

Recommendations

Handle the LCD by its edges to avoid pressure on the panel, use an anti-static wrist strap during installation, and follow HP service manual steps for the EliteBook 1040 G4 to ensure correct connector seating and to prevent damage.
