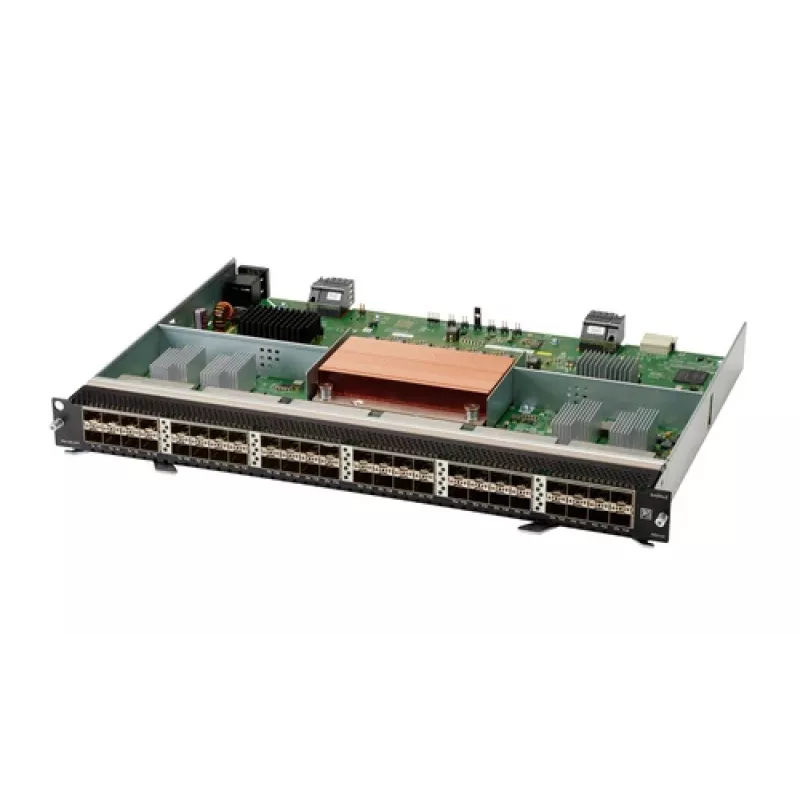

HPE Aruba Networking CX 6400 Módulo de tablas extendidas 48 puertos 1G/10G/25G SFP28 v2

The HPE Aruba Networking CX 6400 48-Port 1G/10G/25G SFP28 v2 Extended Tables Module is a high-performance line card designed for the Aruba 6400 Series switches. It provides 48 SFP28 ports supporting 1GbE, 10GbE, and 25GbE speeds, plus 8 QSFP28 ports for 100GbE uplinks, delivering a total switching capacity of 2.8 Tbps. This module is ideal for data center and campus aggregation deployments requiring high-density, low-latency connectivity.

Advantages

High port density with 48 SFP28 and 8 QSFP28 ports enables flexible network scaling. Hot-swappable design minimizes downtime during maintenance. Supports advanced Layer 2 and Layer 3 features with AOS-CX operating system, ensuring robust security and manageability.

Suitable for

• Enterprise data centers requiring high-speed server and storage connectivity
• Campus network aggregation layers
• Service provider edge deployments

Key specifications

• Product Type: Network Switch Module (Line Card)
• Compatibility: Aruba 6400 Series Switches
• Port Configuration: 48 x 1/10/25GbE SFP28 + 8 x 100GbE QSFP28
• Switching Capacity: 2.8 Tbps
• Forwarding Rate: 2100 Mpps
• Packet Buffer: 32 MB
• Jumbo Frame Support: Up to 9198 bytes
• Hot Swappable: Yes
• Layer Support: Layer 2, Layer 3
• Maximum Power Consumption: 250 W
• Minimum OS Version: Aruba AOS-CX 10.06

Recommendations

For optimal performance, pair this module with an Aruba 6400 chassis and ensure the switch is running AOS-CX 10.06 or later. Use compatible SFP28 and QSFP28 transceivers for best results.
