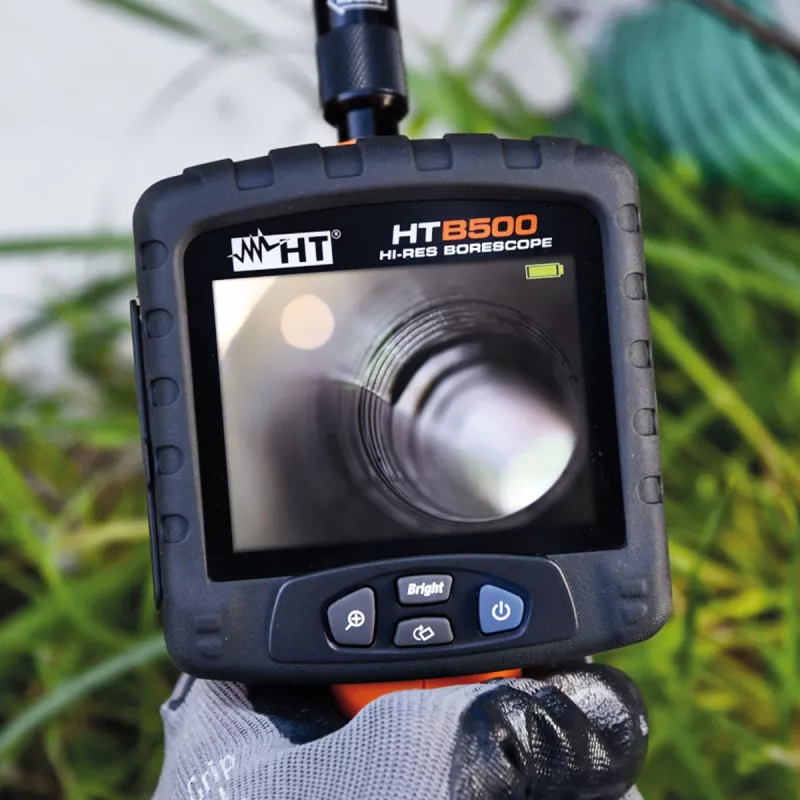

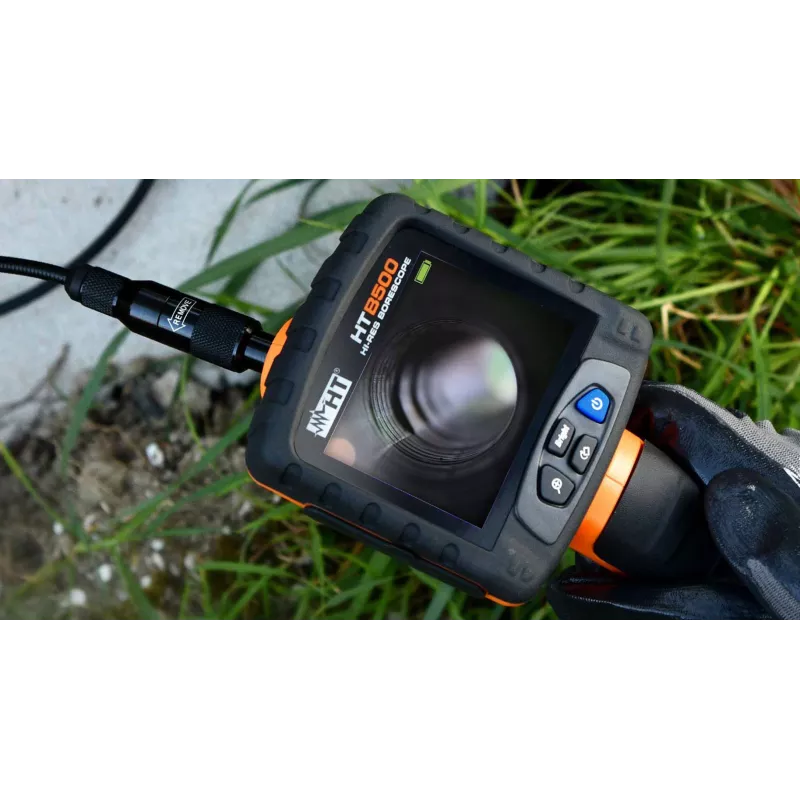

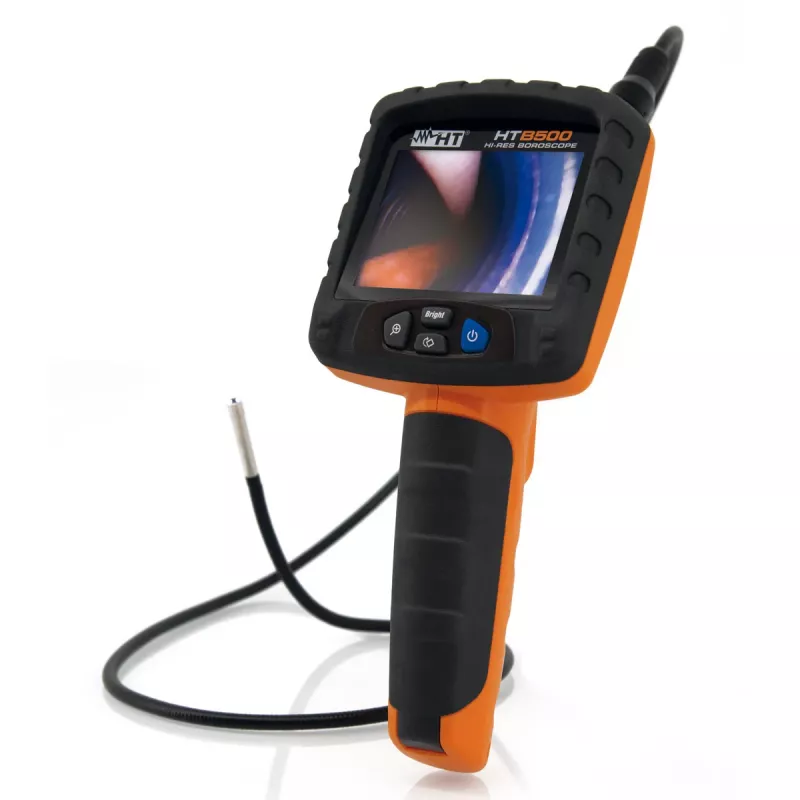

HT Instruments 1010950 Cámara de inspección con sonda de 6 mm y 100 cm de longitud

The HT Instruments 1010950 stands out with its compact 6 mm camera head and flexible 100 cm probe, making it suitable for inspecting tight spaces where larger endoscopes cannot reach. The 3.5-inch TFT LCD display provides a clear view, and the probe's IP67 rating means it can withstand dusty or wet environments.

Highlights

• 6 mm camera head diameter for narrow access
• 100 cm semi-rigid probe with 45 mm minimum bending radius
• 3.5-inch TFT LCD display with 640 x 480 resolution
• Four adjustable LEDs for illumination
• IP67 water-resistant probe
• Photo and video recording to MicroSD card (up to 32 GB)

In daily use

The camera head's 60° field of view and 30–80 mm depth of field deliver sharp images of pipes, engine compartments, or wall cavities. Powered by four AA batteries, it runs for approximately four hours, and the RCA video output allows viewing on an external monitor. Images are saved as JPEG, videos as AVI.

Full specifications

• Display: 3.5-inch TFT LCD, 640 x 480 pixels
• Camera resolution: 640 x 480 pixels (VGA)
• Field of view: 60°
• Depth of field: 30–80 mm
• Probe diameter: 6 mm
• Probe length: 100 cm
• Minimum bending radius: 45 mm
• Illumination: 4 adjustable LEDs
• Water resistance: IP67 (probe)
• Power: 4x AA batteries, approx. 4 hours battery life
• Storage: MicroSD card up to 32 GB
• Image format: JPEG; Video format: AVI
• Video output: RCA (AV Out)
• Operating temperature: 0 to 45 °C
• Operating humidity: 15 to 85% RH

Final note

The HT Instruments 1010950 combines a slim probe with a built-in display, eliminating the need for a smartphone or computer during inspections.
