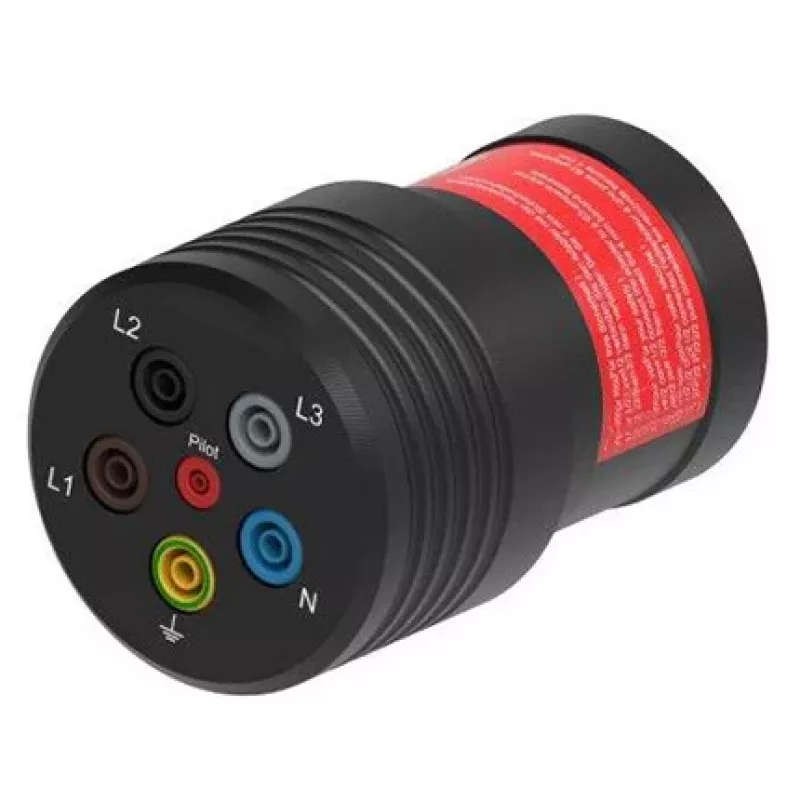

HT Instruments DAA-63 adaptador de medición para HT7051/HT7052 pinzas de corriente de fuga - negro (2002955)

Measure AC/DC voltage up to 1000V and resistance up to 40MΩ with the HT Instruments DAA-63 measuring adapter. This passive adapter connects to HT7051 or HT7052 leakage current clamps, adding voltage, resistance, continuity, and diode test functions.

Overview

The DAA-63 is a dedicated measuring adapter for HT Instruments HT7051 and HT7052 leakage current clamps. It provides 4mm safety banana sockets for test leads and a proprietary connector for the clamp meter. The adapter is powered by the connected clamp meter, requiring no batteries.

What stands out

• Expands clamp meter functionality to include AC/DC voltage, resistance, continuity, and diode tests.
• High safety rating: CAT III 1000V / CAT IV 600V.
• Continuity test with acoustic indicator for quick checks.
• Durable ABS plastic housing in black.

Technical details

• Adapter type: Measuring adapter
• Compatible devices: HT Instruments HT7051, HT7052 leakage current clamps
• Measurement capabilities: AC/DC voltage, resistance, continuity, diode test
• Maximum AC voltage: 1000V AC
• Maximum DC voltage: 1000V DC
• Maximum resistance: 40 MΩ
• Continuity test: Yes, with acoustic indicator
• Diode test: Yes
• Safety rating: CAT III 1000V / CAT IV 600V
• Input connection: 4mm safety banana sockets
• Output connection: Proprietary connector for HT7051/HT7052
• Power source: Passive (powered by connected clamp meter)
• Housing material: Durable ABS plastic
• Colour: Black
• Operating environment: Indoor use, Pollution Degree 2
• Standards compliance: EN 61010-1

Our verdict

The HT Instruments DAA-63 is an essential accessory for HT7051/HT7052 users needing voltage and resistance measurements. Its passive design and high safety rating make it a reliable addition to your toolkit.
