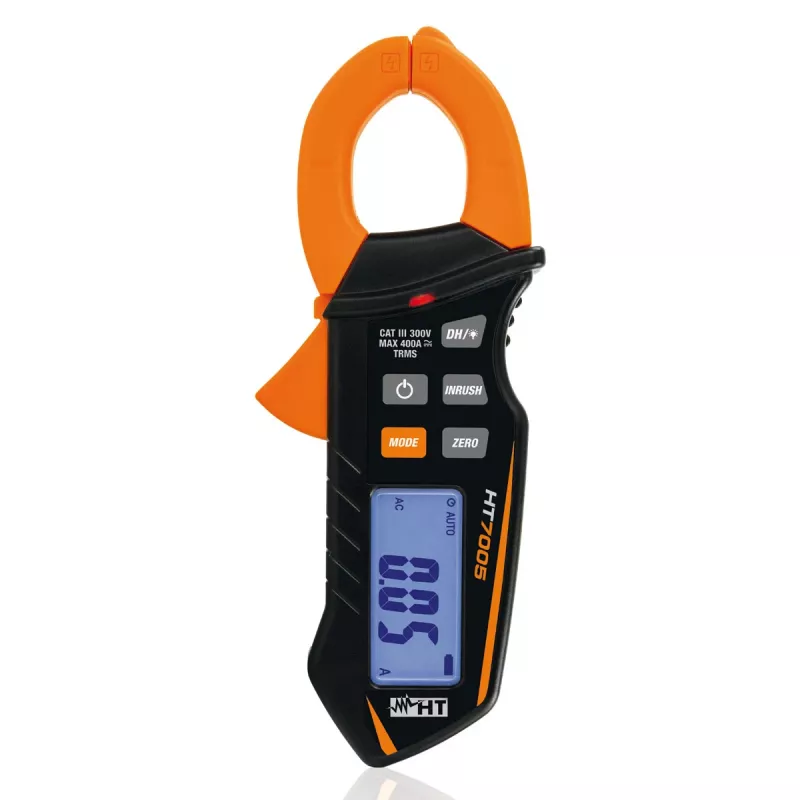

HT Instruments HT7005 pinza amperimétrica digital corriente AC/DC 0,01A a 400A True RMS CAT III 600V 1010192

The HT7005 stands out with its True RMS capability and wide 400A AC/DC current range, making it a reliable choice for accurate measurements in demanding electrical environments. Its 30.5 mm jaw opening accommodates large conductors, while the 4000-count backlit display ensures clear readings even in low light.

Highlights

• True RMS AC measurements for accurate readings on non-linear loads
• Measures AC/DC current up to 400A, AC/DC voltage up to 600V, resistance up to 40MΩ, frequency, capacitance, and temperature
• Jaw opening of 30.5 mm for clamping around large cables
• CAT III 600V safety rating for industrial applications
• Includes continuity buzzer, diode test, data hold, auto power off, and backlight
• Powered by 2x 1.5V AAA batteries

In daily use

This clamp meter is built for electricians and technicians who need a versatile tool for troubleshooting and maintenance. The K-type thermocouple input extends its functionality to temperature measurements from -20°C to 760°C, while the auto power off preserves battery life during long work sessions.

Full specifications

• AC Current Range: 0.01A to 400A
• DC Current Range: 0.01A to 400A
• AC/DC Voltage Range: 0.1V to 600V
• Resistance Range: 0.1Ω to 40MΩ
• Frequency Range: 0.001Hz to 10kHz
• Capacitance Range: 0.001nF to 40mF
• Temperature Range: -20°C to 760°C
• Display: LCD, 4000 counts
• Jaw Opening: 30.5 mm
• True RMS: Yes
• Safety Rating: CAT III 600V
• Continuity Test: Yes, with buzzer
• Diode Test: Yes
• Data Hold: Yes
• Auto Power Off: Yes
• Backlight: Yes
• Power Supply: 2x 1.5V AAA batteries

Final note

The HT7005 combines essential measurement functions in a rugged, portable design, making it a practical addition to any professional toolkit.
