HT INSTRUMENTS KIT TLS-5 set de cables de medición de seguridad, 5 cables, 2 m, conectores banana de 4mm con protección de contacto, CAT IV 600V / CAT III 1000V, 16 A, silicona, rojo/negro/azul/verde/amarillo 2008250

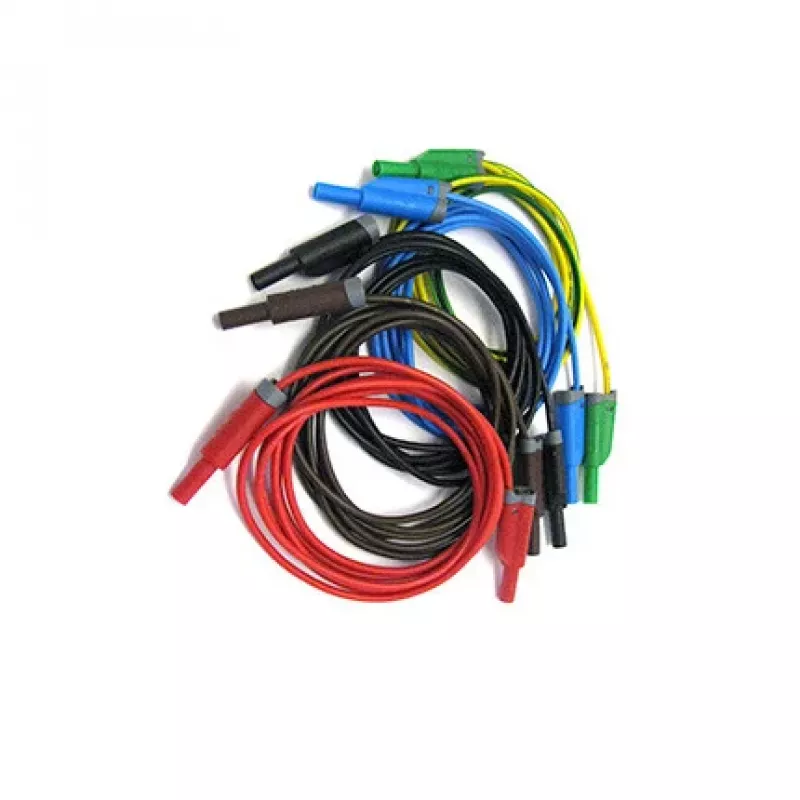

Electricians and maintenance technicians rely on the HT INSTRUMENTS KIT TLS-5 when performing measurements on multimeters, clamp meters, insulation testers, and RCD testers. This set includes five 2-meter silicone test leads with 4mm shrouded safety banana plugs, color-coded red, black, blue, green, and yellow for easy identification.

Key specifications

• Number of leads: 5
• Lead length: 2 m each
• Connector type: 4mm shrouded safety banana plugs
• Voltage rating: CAT IV 600V / CAT III 1000V
• Current rating: 16 A
• Insulation material: Silicone
• Lead colors: Red, black, blue, green, yellow
• Conductor material: Copper
• Plug material: Nickel-plated brass
• Insulation category: Double insulation
• Resistance per lead: < 0.05 Ω
• Operating temperature range: -15°C to +70°C
• Safety standard: IEC/EN 61010-031

Why choose it

The silicone insulation remains flexible even in cold environments, and the double insulation provides an extra layer of protection during high-energy measurements.

Ideal use cases

• Electrical troubleshooting and maintenance
• Testing and verification of electrical installations
• Laboratory and field measurements with compatible instruments

Good to know

The leads are rated for use up to CAT IV 600V and CAT III 1000V, making them suitable for a wide range of measurement tasks.
