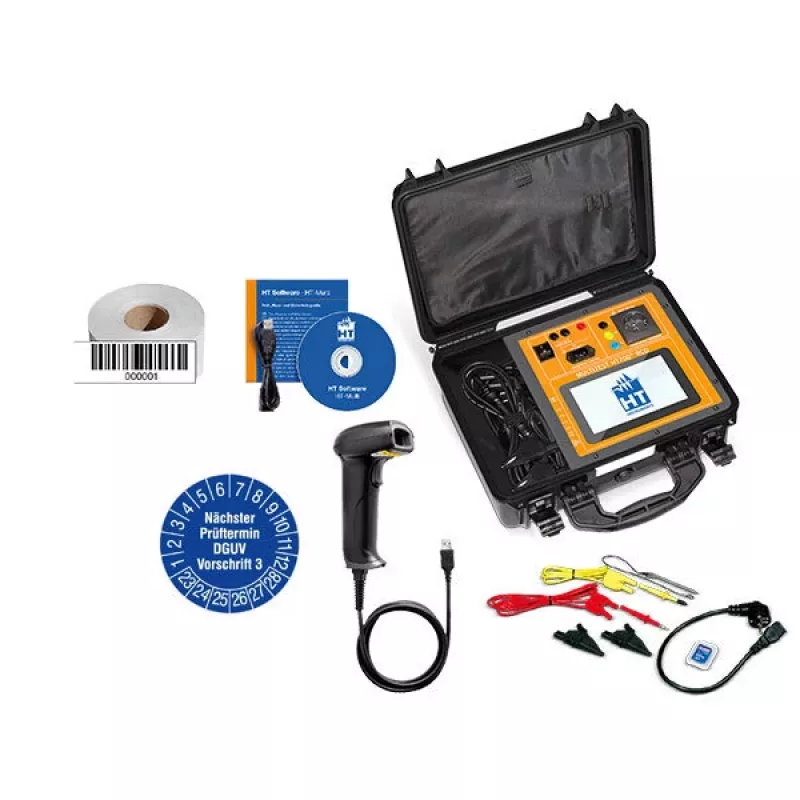

HT Instruments Multitest HT700+ RCD Set comprobador de aparatos portátil 2010110

Electrical safety inspectors and maintenance technicians can streamline their testing routines with the HT Instruments Multitest HT700+ RCD Set. This portable appliance tester is built for verifying the safety of electrical equipment in workshops, construction sites, and industrial facilities, delivering reliable measurements for protective conductor resistance, insulation resistance, and leakage current.

Key specifications

• Protective conductor resistance test at 200mA and 10A
• Insulation resistance test at 250V and 500V
• Leakage current measurement: substitute, differential, and touch current
• RCD testing for Type A, AC, F, B, and B+ (trip time and trip current)
• PRCD testing for S, S+, K, K+, and K- types
• TRMS AC/DC voltage and current measurement
• Functional test parameters: voltage, current, active power, apparent power, reactive power, power factor
• Internal memory for up to 999 measurements
• USB interface for PC connection
• Backlit graphical LCD display
• Rechargeable NiMH batteries
• Safety category: CAT II 300V, CAT III 150V
• Automatic and programmable test sequences
• Barcode scanner support for DUT identification
• Printer support for on-site report printing
• TOPVIEW PC software included for data management and report generation

Why choose it

The HT700+ combines comprehensive testing capabilities with user-friendly operation. It supports a wide range of RCD types and offers automatic test sequences, reducing testing time and minimizing human error. The large backlit display and barcode scanner support enhance efficiency in busy environments.

Ideal use cases

• Periodic safety inspections of portable appliances in industrial settings
• Testing electrical equipment after repair or maintenance
• Verification of RCDs and PRCDs in temporary installations
• On-site testing with immediate report printing

Good to know

The device is powered by rechargeable NiMH batteries, allowing cordless operation. The included TOPVIEW software facilitates data management and report generation, ensuring compliance with documentation requirements.
