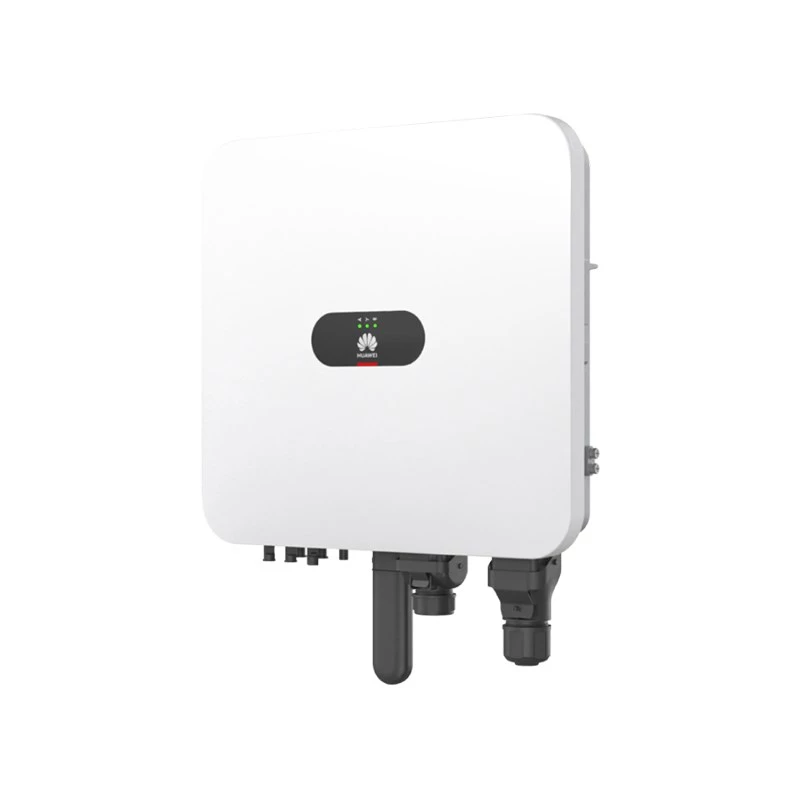

Huawei Inversor 1-Fase, RS485, WLAN, 3,68 kW

The Huawei inverter 1-phase, RS485, WLAN, 3.68kW is a high-efficiency single-phase hybrid inverter designed for residential solar systems. It supports grid-tied operation with battery readiness, enabling energy storage integration. With a maximum AC output of 3.68 kW and dual MPPTs, it optimizes energy harvest from solar panels. The inverter features WLAN and RS485 communication for monitoring and control, and is compatible with Huawei LUNA2000 batteries.

Advantages

High efficiency up to 98.4%, compact design with natural convection cooling, IP65 protection for outdoor installation, and advanced safety features including arc fault protection and surge protection.

Suitable for

• Residential single-phase solar systems
• Systems requiring battery backup with Huawei LUNA2000
• Installations needing remote monitoring via WLAN

Key specifications

• Max. AC Output Power: 3680 W
• Max. AC Apparent Power: 3680 VA
• Rated AC Output Voltage: 220/230/240 V
• Number of MPPTs: 2
• Max. Input Voltage: 600 V
• Communication: WLAN, RS485
• Ingress Protection: IP65
• Operating Temperature: -25°C to +60°C

Recommendations

For optimal performance, pair with Huawei LUNA2000 battery and use the FusionSolar app for monitoring. Ensure proper installation by a certified electrician.
