Solplanet ASW08kH-T2 Inversor híbrido 8kW 3 fases 2 MPPT interruptor DC WLAN/LAN/RS485 compatible con baterías LiFePO4 de alta tensión 10 años de garantía

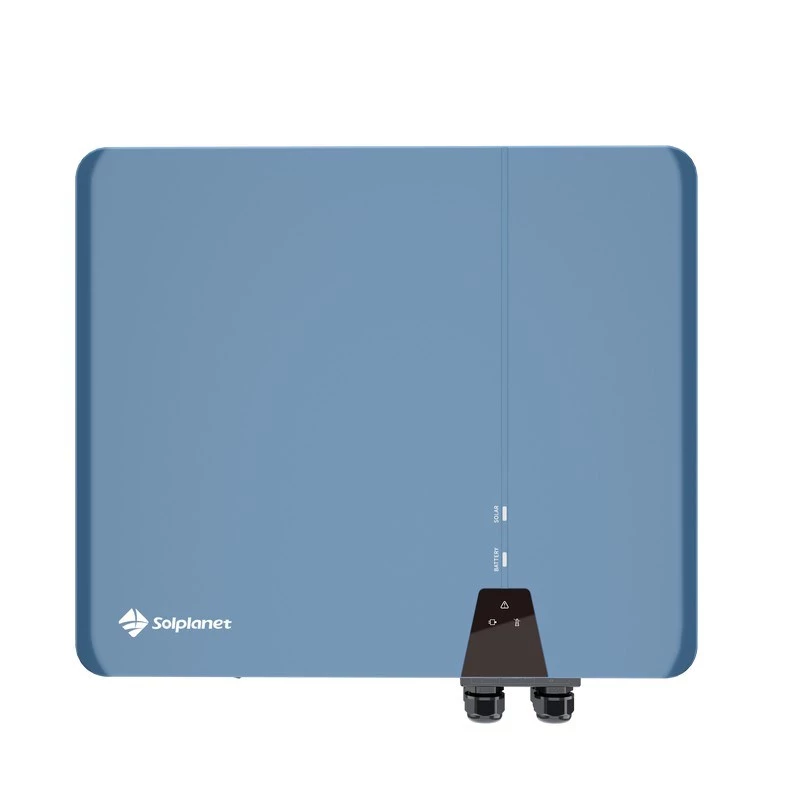

The Solplanet ASW08kH-T2 is a high-performance hybrid inverter designed for residential and commercial solar energy systems. With 8kW rated AC output power and 3-phase operation, it efficiently converts solar energy into usable electricity while supporting high-voltage LiFePO4 batteries for energy storage. The inverter features 2 MPPT trackers, an integrated DC disconnector, and multiple communication interfaces including WLAN, LAN, and RS485 for easy monitoring and control. Backed by a 10-year warranty, it ensures reliable and long-lasting performance.

Advantages

High efficiency up to 98.2% ensures maximum energy harvest. The hybrid design allows seamless integration with battery storage, enabling energy independence and backup power. Natural convection cooling ensures silent operation and long lifespan. IP65 protection rating makes it suitable for outdoor installation.

Suitable for

• Residential solar systems with battery storage
• Commercial installations requiring 3-phase power
• Off-grid or grid-tied applications with high-voltage LiFePO4 batteries
• Projects needing remote monitoring via WLAN or LAN

Key specifications

• Rated AC Output Power: 8 kW
• Number of MPPT Trackers: 2
• Phase: 3-Phase
• Max. DC Input Power: 12000 W
• Max. DC Input Voltage: 1000 V
• MPPT Voltage Range: 150 - 850 V
• Nominal AC Output Voltage: 3/N/PE, 230/400 V
• Max. AC Output Current: 13.1 A
• Max. Efficiency: 98.2%
• Euro Efficiency: 97.5%
• Battery Voltage Range: 80 - 495 V
• Max. Charge/Discharge Current: 25 A
• Communication Interfaces: WLAN, LAN, RS485
• DC Switch: Integrated DC Disconnector
• Protection Degree: IP65
• Operating Temperature Range: -25°C to +60°C
• Warranty: 10 Years
• Cooling: Natural Convection

Recommendations

For optimal performance, pair with compatible high-voltage LiFePO4 batteries and ensure proper installation by a certified electrician. Use the Solplanet monitoring app for real-time system tracking.
