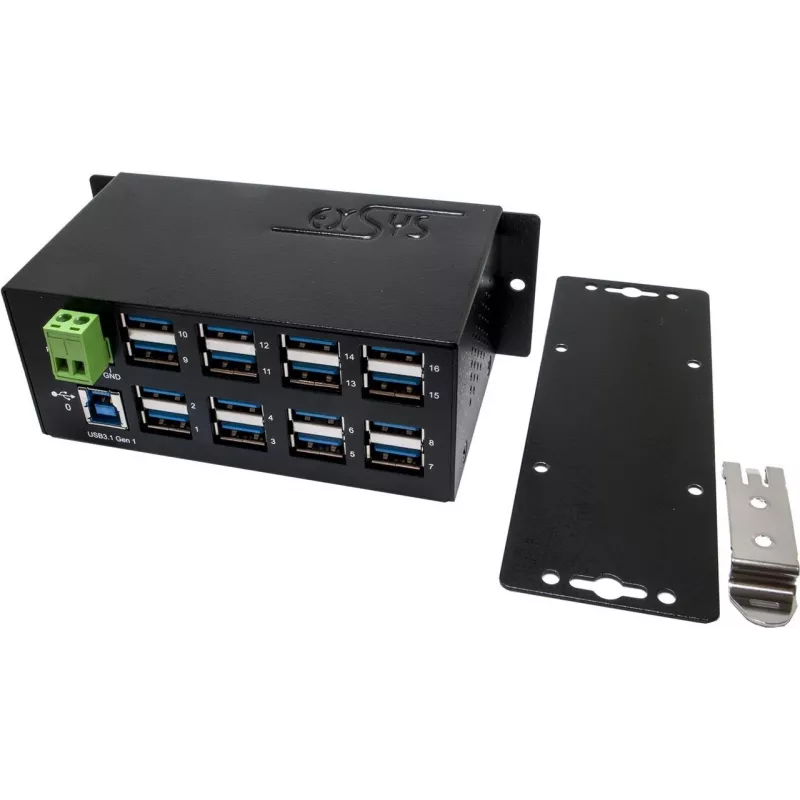

Hub USB EXSYS EX-1113HMS

The EXSYS EX-1113HMS is a compact 16‑port USB hub that provides USB 3.2 Gen 1 (USB 3.1 Gen 1) Type-A downstream interfaces with a Type-B host connection. It supports data transfer rates up to 5000 Mbit/s and is compatible with a wide range of Windows and macOS systems. With 15 kV ESD surge protection and a slim black metal housing (132.5 × 65 × 48.2 mm), the hub is suitable for rack installations and general office or automation connectivity where multiple USB 3.0 devices must be connected reliably.

Advantages

The EX-1113HMS offers sixteen USB 3.0/3.1(Gen1) downstream ports in a single unit, allowing centralised connection of many high-speed peripherals. Integrated 15 kV ESD surge protection helps safeguard connected devices against electrostatic discharge. Its USB-powered design and compatibility with common Windows and Mac operating systems simplify deployment without requiring additional drivers in most setups. The compact form factor and black finish make it practical for 19‑inch rack or desktop use in office and industrial environments.

Suitable for

• Connecting multiple USB 3.0 peripherals in offices
• Automation systems requiring numerous USB endpoints
• 19-inch rack installations with limited space
• Workstations that need high-speed data transfer to many devices

Key specifications

• Model: EXSYS EX-1113HMS
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
• Hub interfaces: 16 × USB 3.2 Gen 1 (3.1 Gen 1) Type-A downstream ports
• Maximum data rate: up to 5000 Mbit/s
• ESD protection: 15 kV
• Power source: USB
• Dimensions: 132.5 × 65 × 48.2 mm
• Weight: 1.1 kg
• Colour: Black

How to use

Connect the hub's Type-B host port to a computer or host device using a compatible USB 3.0/3.1 cable. Plug peripherals into the Type-A downstream ports; the hub supports high-speed data transfers up to 5 Gbit/s per port when the host and devices support USB 3.0/3.1 speeds. In many systems no additional drivers are required—connectivity is typically established automatically by the operating system. For rack use, position the hub in an appropriate 19‑inch shelf or tray and route cables to maintain airflow and cable management.

Recommendations

To ensure stable high-speed performance, use certified USB 3.0/3.1 cables and connect devices that comply with USB 3.2 Gen 1 specifications. Avoid overloading the hub with power-hungry devices if the host USB port cannot supply sufficient current; use externally powered hubs or powered ports where necessary. Regularly check cable and connector condition to maintain ESD protection effectiveness.
