Hypertec 129151-HY Adaptador de cable de vídeo 1,8 m VGA (D-Sub) 5 x BNC Negro, Azul, Verde, Rojo, Blanco

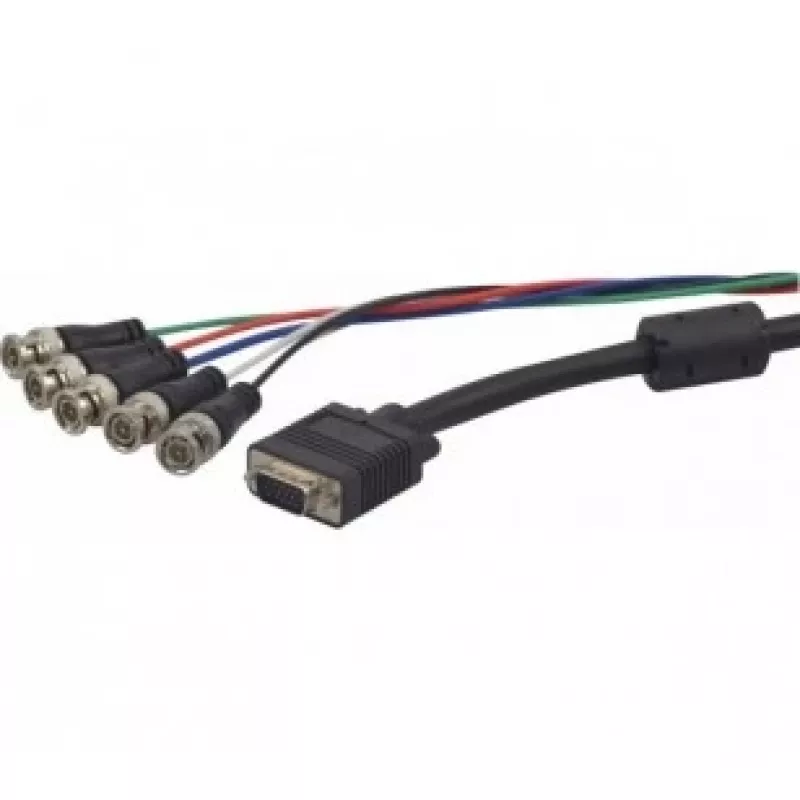

The Hypertec ProConnectLite VGA to 5 x BNC cable (1.8 m) provides a simple wired connection between a VGA (D-Sub) video source and displays or equipment with five BNC inputs. The cable includes a standard 15-pin VGA connector on one end and five colour-coded BNC connectors (black, blue, green, red, white) on the other end to support component and composite signal wiring where required.

Advantages

This 1.8 m adapter cable offers a direct, passive conversion from VGA to multiple BNC connections without requiring external power. Colour-coded BNC plugs simplify installation and reduce the risk of miswiring. The cable is suitable for installations that need a compact, flexible connector solution between VGA video outputs and professional or legacy BNC-equipped displays.

Suitable for

Key specifications

How to use

Connect the VGA (D-Sub) plug to the VGA output of the source device and secure the connector if required. Plug the five BNC connectors into the corresponding BNC inputs on the display or signal processor, observing colour coding for correct signal mapping (for example, component or composite assignments). Ensure both devices are powered off when making connections to avoid signal issues, then power them on and select the appropriate input on the display.

Recommendations

Use this cable for short to medium length runs (1.8 m) in AV setups or where passive VGA-to-BNC wiring is acceptable. For long distances or where signal conversion (active scaling or level shifting) is required, consider an active converter or signal amplifier.
