i-PRO WV-QWL500-B soporte de pared - negro - 1 ud.

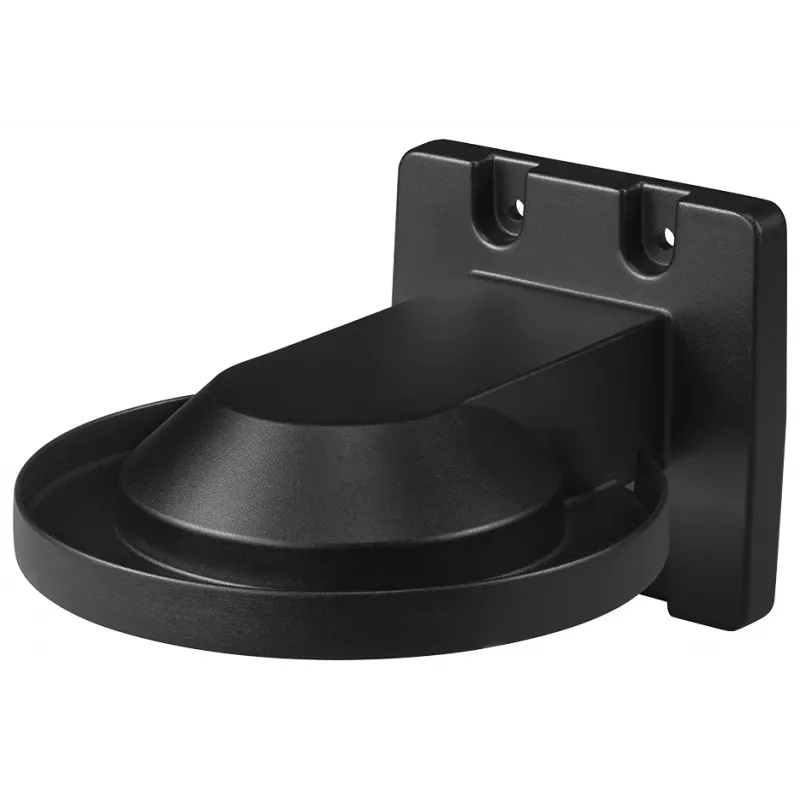

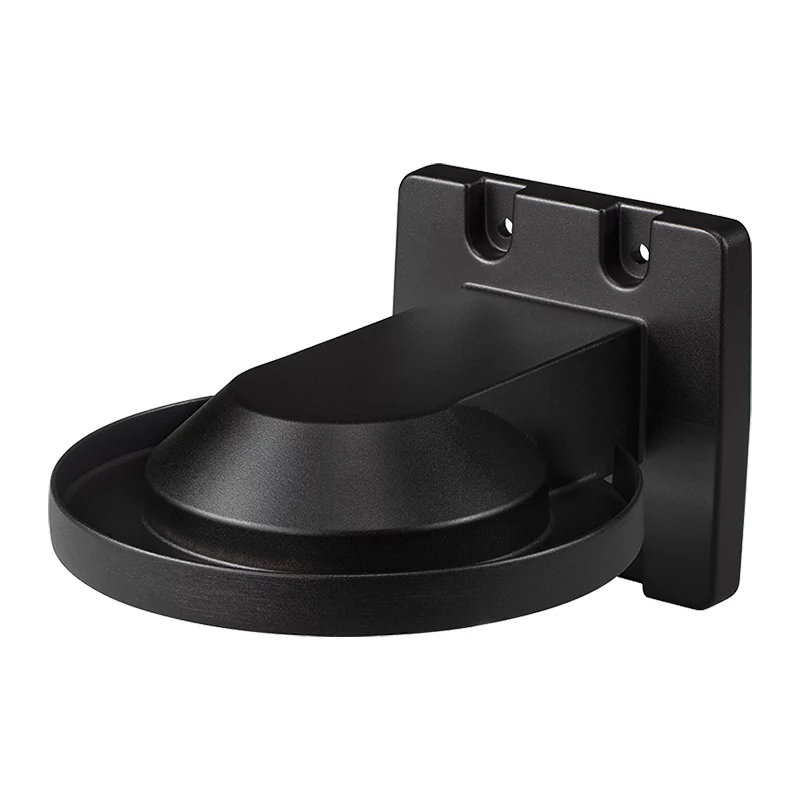

The i-PRO WV-QWL500-B is a robust wall mount bracket designed for outdoor installation of i-PRO S-series, U-series, and other compatible network cameras. Crafted from aluminum die-cast with a black powder-coated finish (RAL 9005), this bracket ensures durability and corrosion resistance in harsh environments. It features integrated cable routing for a clean installation and supports a load capacity of up to 2 kg. The package includes mounting screws and an installation template for easy setup.

Advantages

This wall mount bracket offers reliable support and weather resistance, making it ideal for outdoor surveillance applications. Its integrated cable management helps maintain a tidy installation, while the included accessories simplify the mounting process.

Suitable for

• i-PRO S-series network cameras (e.g., WV-S1110V, WV-S1130V)
• i-PRO U-series network cameras (e.g., WV-U1110A, WV-U1530A)
• Other compatible i-PRO cameras

Key specifications

• Product Type: Wall Mount Bracket
• Material: Aluminum die-cast
• Color: Black (RAL 9005)
• Mounting Location: Wall
• Indoor/Outdoor Use: Outdoor
• Cable Management: Integrated cable routing
• Load Capacity: Up to 2 kg (4.4 lbs)
• Operating Temperature: -50 °C to +60 °C (-58 °F to +140 °F)
• Operating Humidity: 10% to 100% (no condensation)
• Finish: Powder coating
• Installation Method: Screw-fixed
• Included Accessories: Mounting screws, installation template
• Dimensions (W x H x D): 160 mm x 120 mm x 200 mm
• Unit Quantity: 1 piece

Recommendations

For optimal performance, ensure the mounting surface is solid and capable of supporting the bracket and camera weight. Use the provided template for accurate screw placement.
