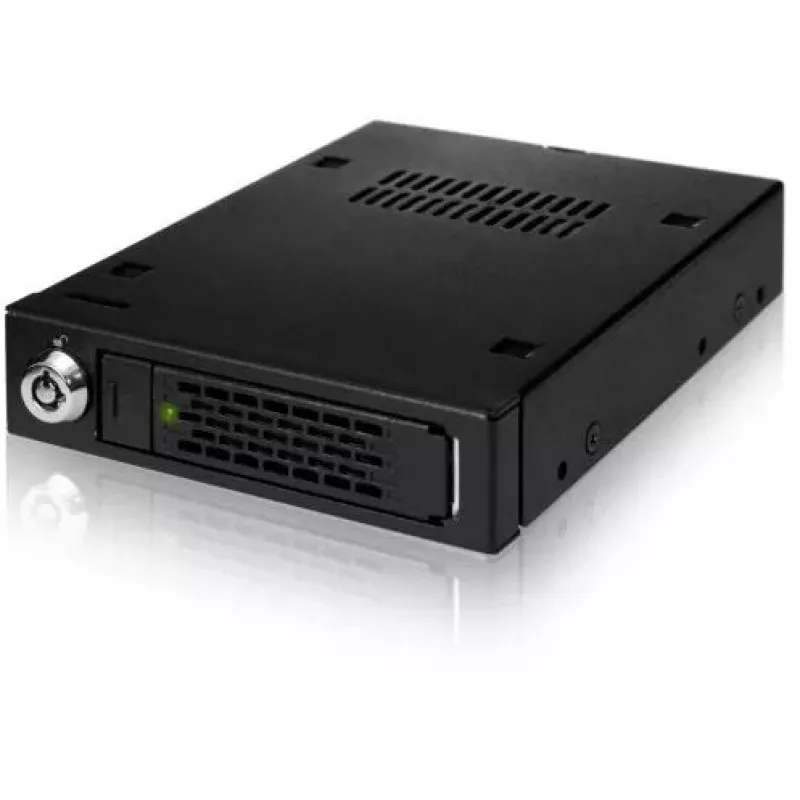

ICY BOX Marco de intercambio de disco duro MB991IK-B, 6,40cm (2.5), SAS - SATA, alta calidad, marco de aluminio negro para discos duros de 6,40cm (2.5) con S

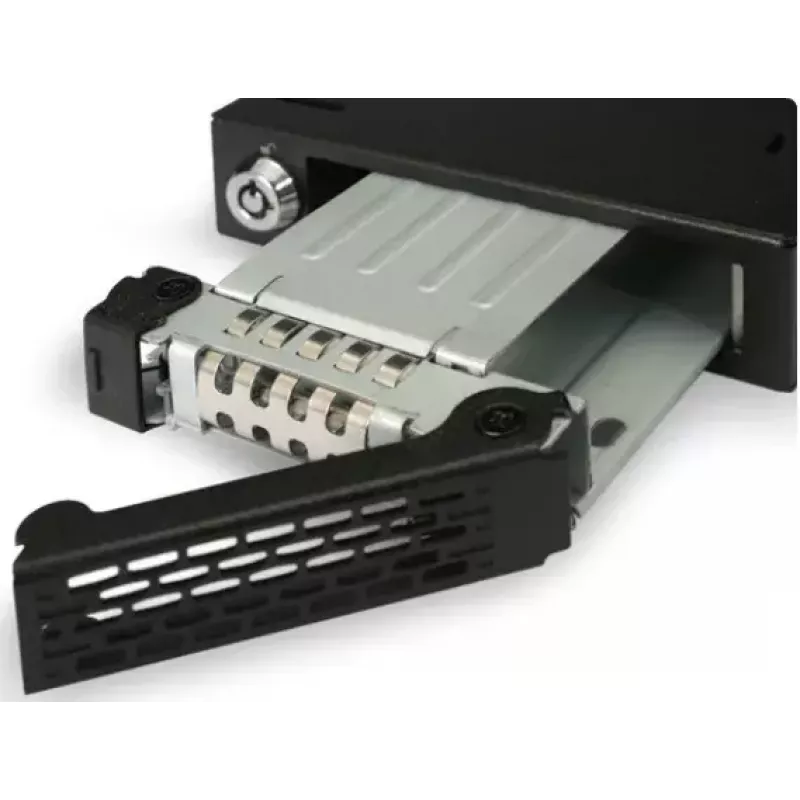

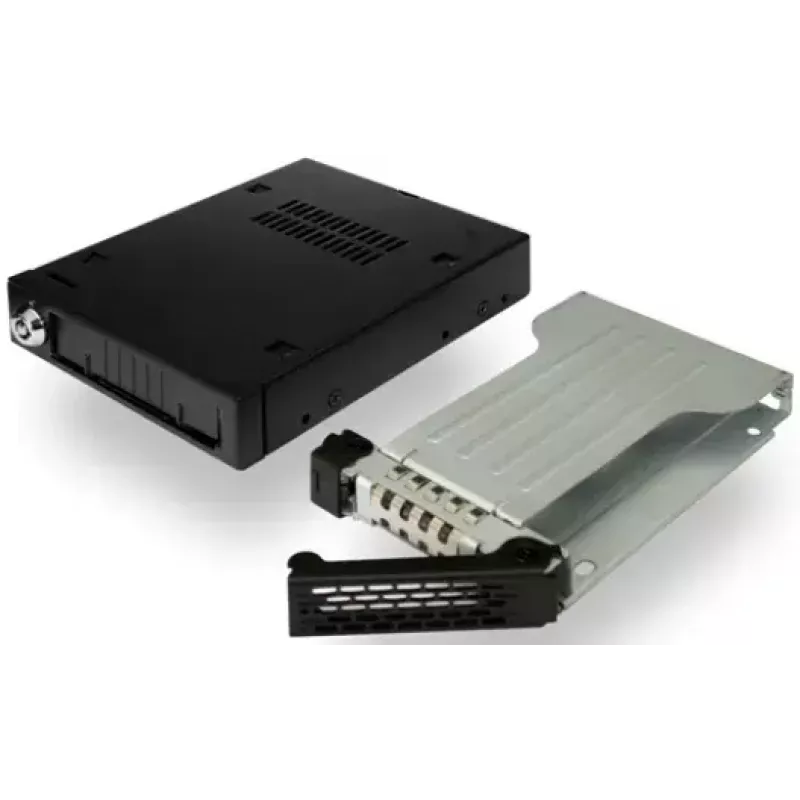

The Icy Dock MB991IK-B is a 2.5" SATA/SAS mobile rack designed to fit into a 3.5" device bay. Constructed from heavy-duty SECC metal and finished in black, the unit supports 2.5" SATA I/II/III and SAS HDD/SSD drives up to 15 mm in height. Ventilation slots on the front, rear, top and bottom and a front status LED help maintain drive cooling and provide visual drive activity indicators. The tray system uses full-metal EZ Slide Mini Trays with a full-cage top cover for extra drive protection and easy interchangeability.

Advantages

The MB991IK-B combines robust full-metal construction with a compact form factor suited for industrial and mobile environments. Its EZ Slide Mini Trays allow quick hot-swap of 2.5" drives while the top cover and full-cage design increase mechanical protection during transport. Broad compatibility with SATA and SAS drives, support for 15 mm drive heights and multiple ventilation openings ensure reliable, cool operation in demanding conditions. A front-mounted status LED and an integrated key lock provide straightforward status feedback and basic physical security.

Suitable for

• Industrial PCs and embedded control systems
• Mobile DVR and fleet recording systems
• Factory automation and manufacturing equipment
• Rugged or mobile deployments requiring hot-swap 2.5" drives

Key specifications

• Supported drives: 2.5" SATA I/II/III and SAS HDD/SSD
• Maximum drive height: 15 mm
• Host bay: 3.5" device bay
• Material: SECC (full metal construction)
• Product colour: Black
• Dimensions (W×D×H): 101.5 × 135 × 25.6 mm
• Weight: 0.4 kg
• Data interface support: SATA up to 6 Gbps

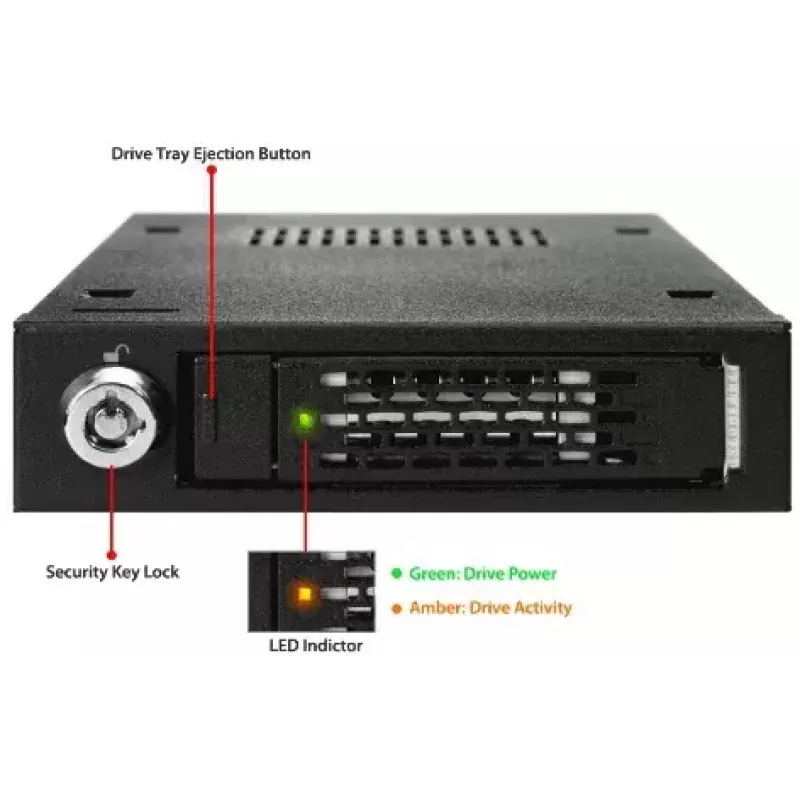

• Front status LED; ventilation slots on front/rear/top/bottom; EZ Slide Mini Tray with top cover; key lock

How to use

Install the MB991IK-B into a standard 3.5" device bay and secure it according to your chassis instructions. Slide a compatible 2.5" SATA or SAS drive into the full-metal EZ Slide Mini Tray until it seats and the drive connector engages. Close the tray cover for added protection and, if required, lock the tray using the integrated key lock. The front LED indicates drive status; ensure proper seating and chassis power before accessing the drive from your operating system.

Recommendations

For reliable operation, use drives no taller than 15 mm and allow unobstructed airflow around the ventilation slots. In mobile or industrial installations, periodically check tray retention and the key lock to maintain data security and mechanical integrity. Avoid exposing the unit to environments outside the drive and chassis manufacturer’s specified operating conditions.
