IIYAMA ProLite TF1534MC-B8X monitor táctil XGA TN de 15 pulgadas, HDMI, DP, VGA, USB

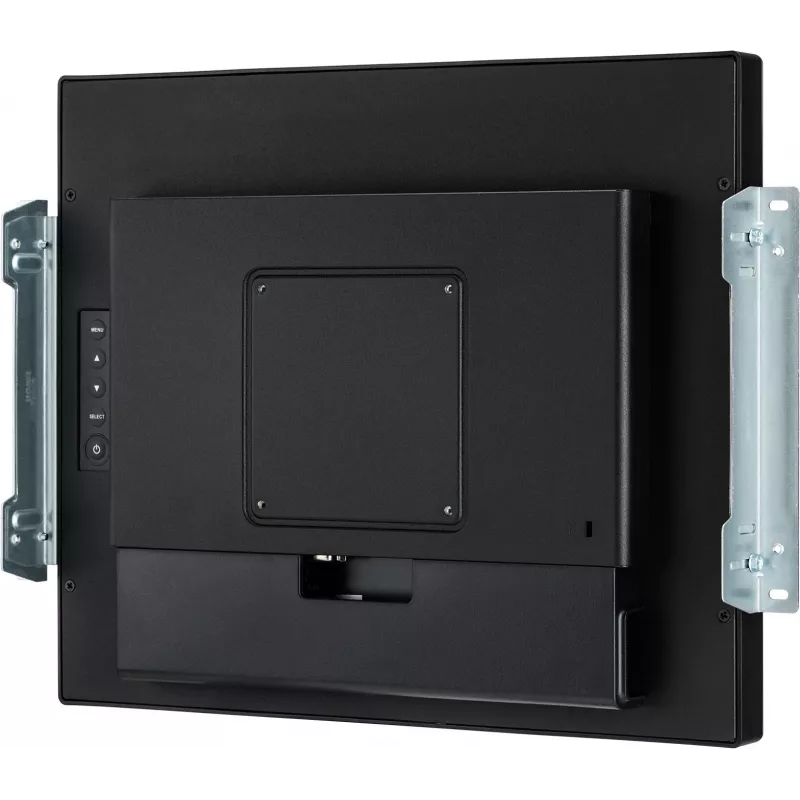

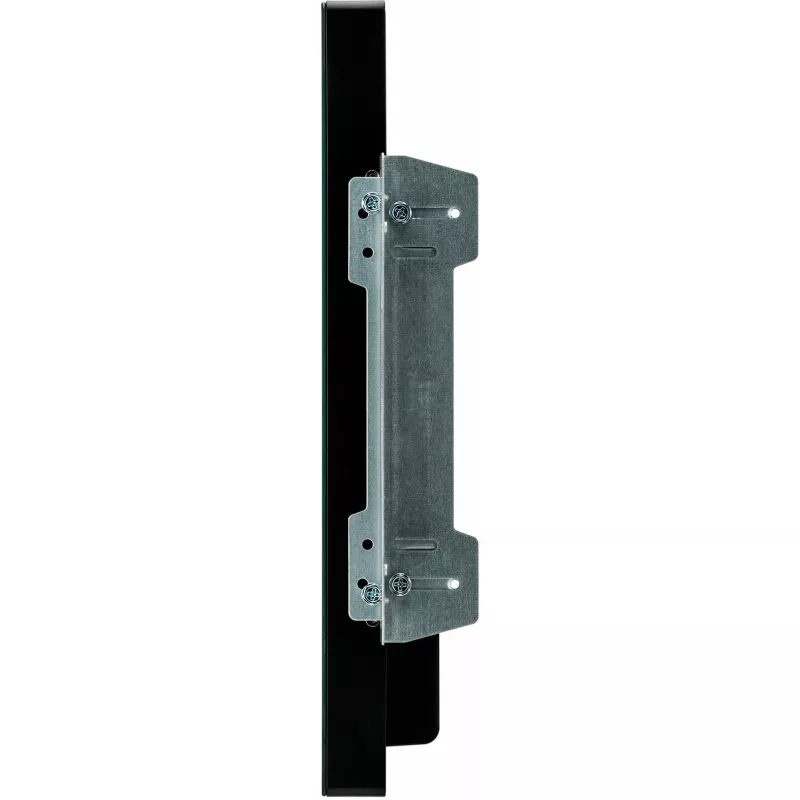

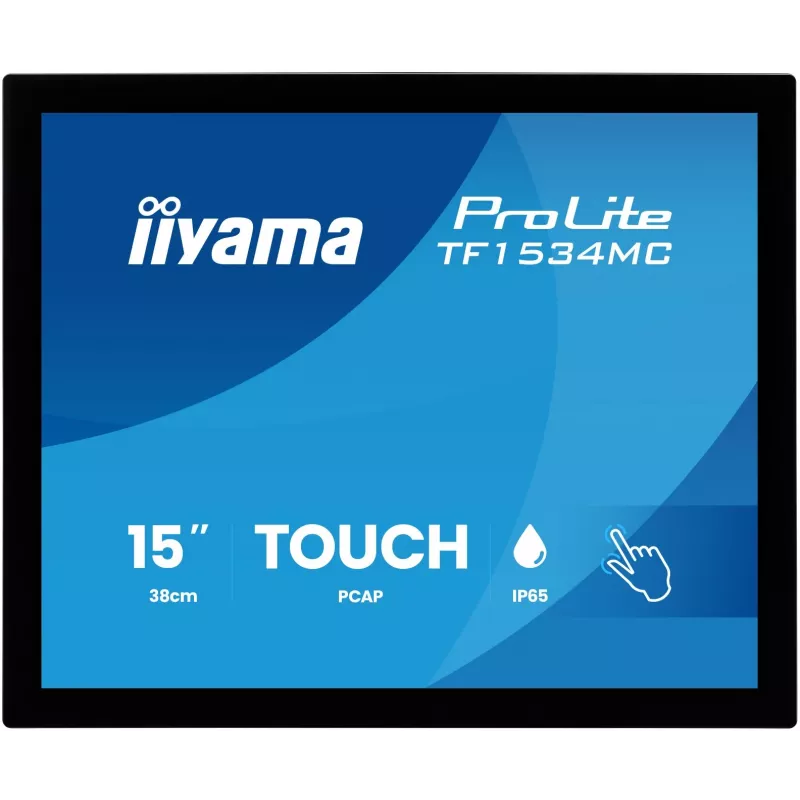

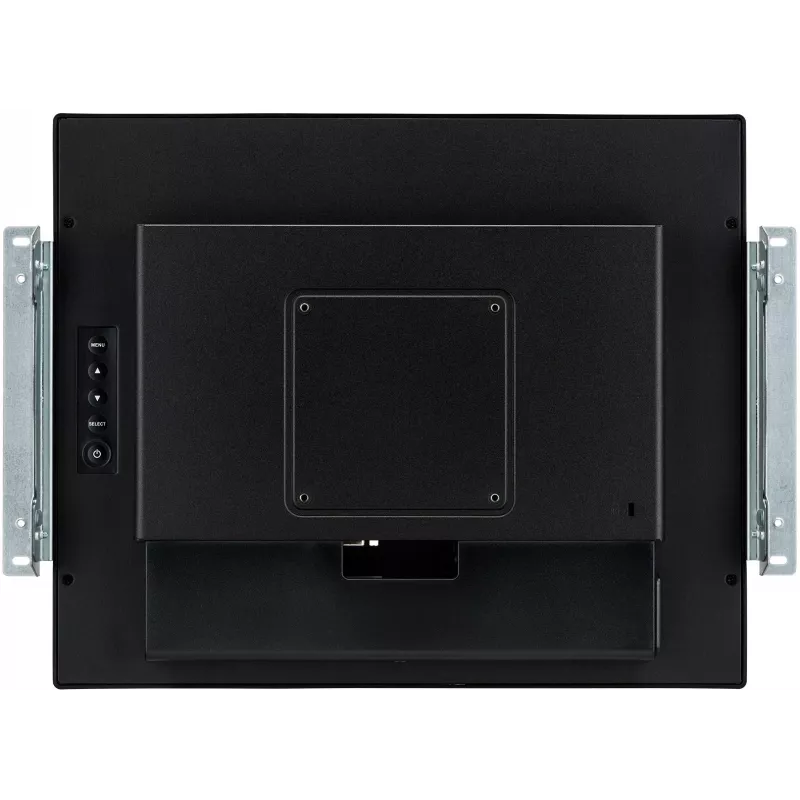

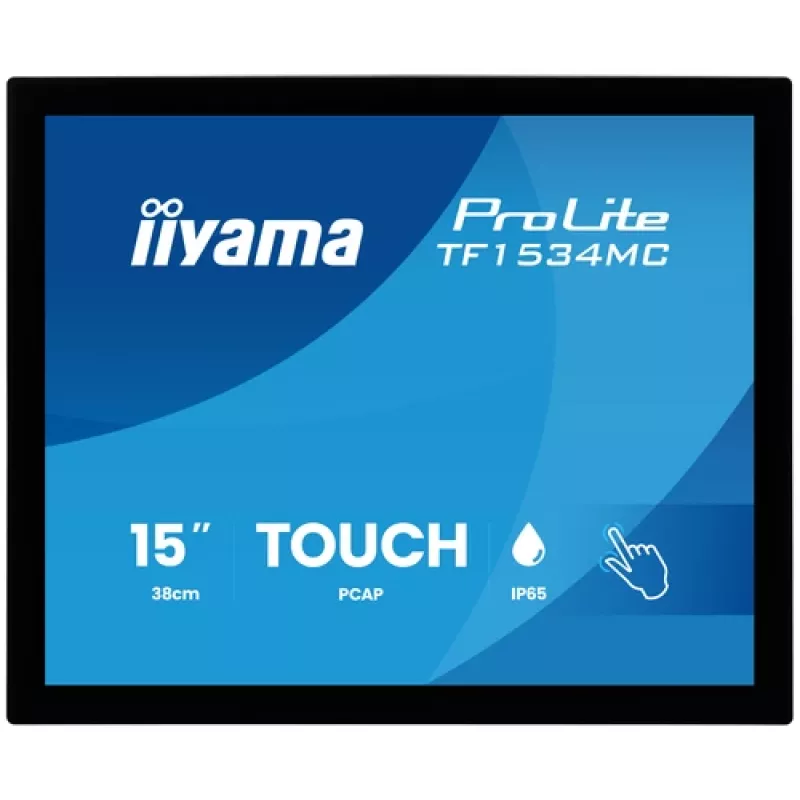

The IIYAMA ProLite TF1534MC-B8X is a 15-inch (38 cm) open frame touch monitor with an edge-to-edge glass design and touch-through-glass function for flexible integration. It features a TN panel with XGA resolution and projective capacitive 10-point touch technology.

Key features

• 15" (38 cm) open frame touchscreen monitor
• Edge-to-edge glass design
• Touch-through-glass function
• Projective capacitive touchscreen with 10 touch points
• Touch method: pen, finger, glove
• USB touch interface
• Touch through glass: 6 mm
• Palm recognition: yes
• HDCP: yes
• OSD key lock: yes
• Glass hardness: 7H
• 60950 Ball Drop Test: yes
• Water and dust protection: IP65 (front side)
• OSD menu languages: EN, DE, FR, ES, IT, CN, JP
• Kensington-lock prepared
• Plug & Play: DDC2B
• Orientation: landscape, portrait, face-up
• VESA mounting: 100 x 100 mm
• Cable management: yes
• MTBF: 50000 hours
• Included accessories: power cable (1.8 m), USB cable (1.8 m), HDMI cable (1.8 m), DP cable (1.8 m), safety notes, startup guide, cable cover
• Power supply: DC 12 V, external power adapter
• Power consumption: 9 W typical, 1.5 W standby, 0.3 W off
• Regulations: CE, ErP, EAC, cULus, REACH, WEEE, RoHS support, UKCA
• Energy efficiency class: D
• Other: contains more than 0.1% lead
• Dimensions (W x H x D): 338 x 267 x 45 mm
• Weight: 2.7 kg

Specifications

• Brand: Iiyama
• MPN: TF1534MC-B8X
• Product colour: Black
• Display diagonal: 15" (38 cm)
• Panel technology: TN
• Aspect ratio: 4:3
• Resolution: 1024 x 768
• Brightness: 350 cd/m²
• Brightness with touch panel: 301 cd/m²
• Light transmittance: 90%
• Contrast: 800:1 with touch panel
• Response time: 8 ms
• Viewing angle: horizontal/vertical: 170°/160°; right/left: 85°/85°; up/down: 80°/80°
• Displayable colours: 16.2 million
• Horizontal frequency: 31-60 kHz
• Active area H x W: 304 x 228 mm, 12 x 9"
• Pixel pitch: 0.297 mm
• Colour: matte, black
• Analog video input: 1x VGA
• Digital video input: 1x HDMI, 1x DisplayPort
• Audio output: speakers 2x2W
