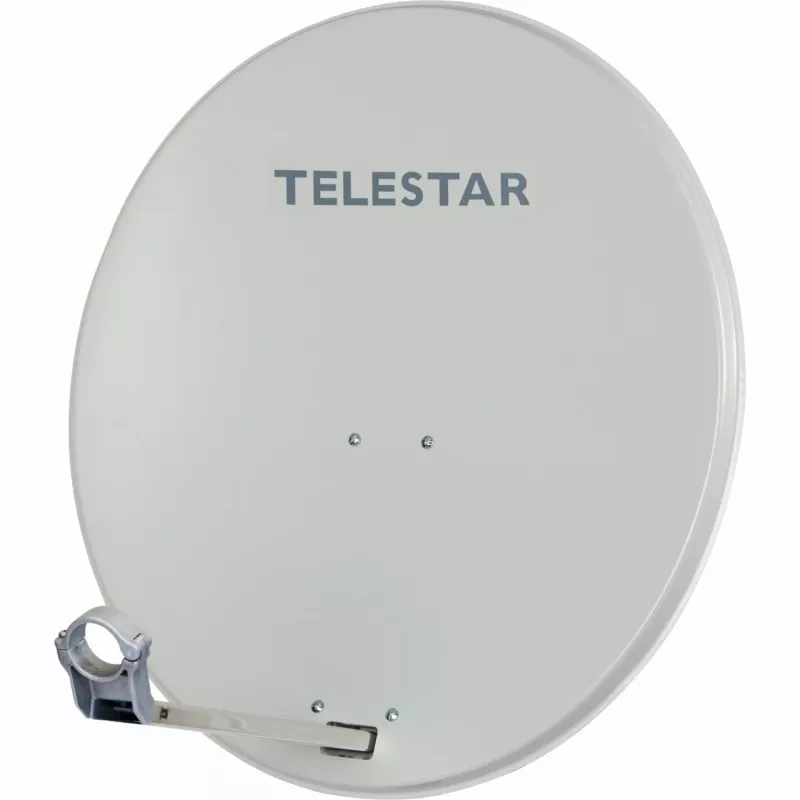

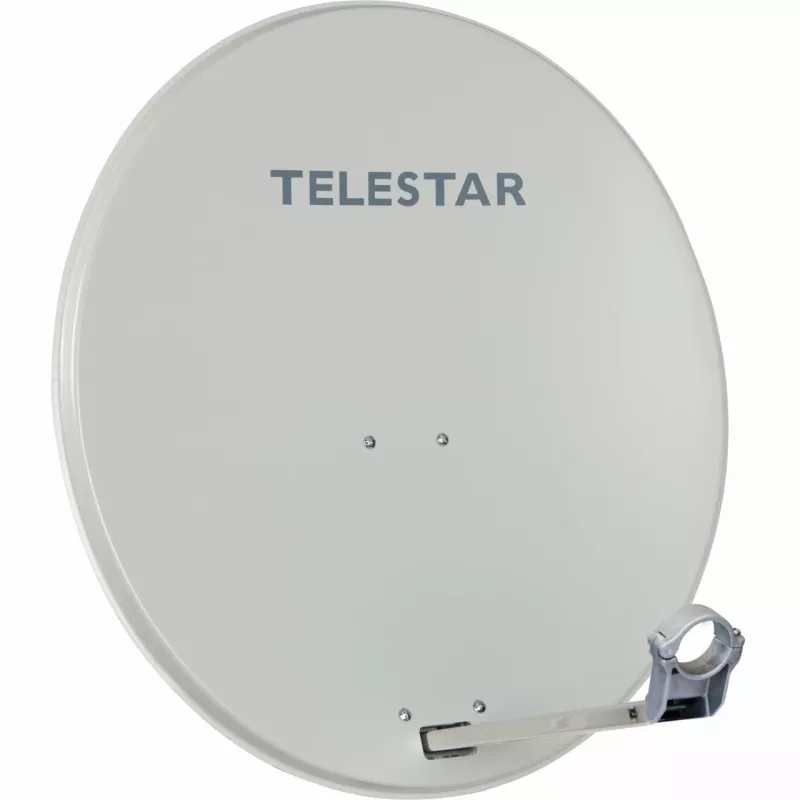

IMPERIAL Telestar Digirapid 80 antena parabólica gris (5109721-AB)

Reliable satellite reception in fringe areas often requires a larger reflector. The Telestar Digirapid 80 offers an 80 cm offset dish that gathers more signal than smaller models, helping to maintain a stable picture during heavy rain or in weak-signal locations.

Who is it for

This dish suits viewers who need dependable Ku-band reception for free-to-air or encrypted satellite channels, especially in regions where a 60 cm dish struggles. It is also a practical choice for caravanners and campers who want a robust, easily aligned antenna.

Main features

• 80 cm aluminum offset reflector for strong signal gain.
• Galvanized steel mount with powder-coated reflector for corrosion resistance.
• Universal mast clamp fits poles from 32 to 60 mm.
• Pre-assembled feed arm simplifies installation.
• Elevation adjustment range from 10° to 60°.
• Supports one LNB with a 40 mm holder.

Specifications

• Antenna type: Offset satellite dish
• Reflector diameter: 80 cm
• Reflector material: Aluminum
• Mount material: Galvanized steel
• Colour: Grey
• Frequency range: 10.7 - 12.75 GHz
• Gain (Ku-band): 38.5 dB at 11.7 GHz
• Offset angle: 25°
• F/D ratio: 0.6
• LNB holder diameter: 40 mm
• Mast clamp diameter: 32 - 60 mm
• Elevation adjustment range: 10° - 60°
• Wind load resistance: Up to 200 km/h
• Polarization: Linear
• Mounting type: Mast/wall mount
• Corrosion protection: Powder-coated reflector, galvanized mount
• Number of LNBs supported: 1
• Assembly: Pre-assembled feed arm

Tips

Use a satellite finder to align the dish precisely. The 25° offset angle means the dish face appears almost vertical when pointed at many satellites. Check local wind conditions and secure the mast firmly; the dish withstands gusts up to 200 km/h.
