Impresora de etiquetas TSC TH220T con LCD, 128 MB DRAM y memoria flash

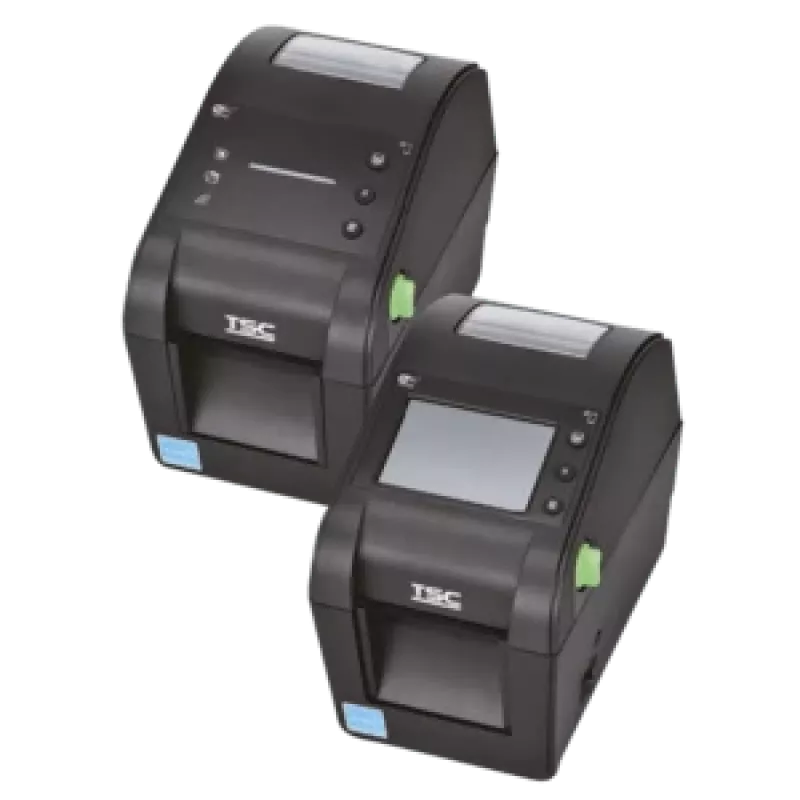

TSC TH220T with LCD is a thermal transfer label printer with 203 dpi (8 dots/mm) resolution, designed for retail, logistics and light industrial use. The printer supports media widths up to 60 mm and a maximum print width of 54 mm, handling label rolls up to 127 mm in diameter. It features a touchscreen display, real time clock and internal memory (128 MB RAM and 128 MB Flash) for storing templates and configurations.

Advantages

The TH220T offers thermal transfer technology for durable labels, on-device configuration via the touch screen and reliable connectivity including USB type B, USB Host, RS232 and Ethernet. It supports fast printing up to 203 mm/s and includes a Micro SD slot for additional storage. The package contains a USB cable, an external power supply unit and an EU power cable.

Suitable for

• Printing product labels and price tags in retail environments
• Generating shipping and logistic labels in warehouses
• Creating identification tags and small-batch labels in light industrial settings

Key specifications

• Printing method: Thermal transfer
• Resolution: 203 dpi (8 dots/mm)
• Maximum media width: 60 mm
• Maximum print width: 54 mm
• Maximum roll diameter: 127 mm
• Maximum print speed: 203 mm/s
• Display: Touchscreen
• Real time clock: Yes
• Interfaces: USB (Type B), USB Host, RS232, Ethernet
• Memory: 128 MB RAM, 128 MB Flash
• Micro SD slot: Yes
• Included accessories: USB cable, external power supply unit, EU power cable

How to use

Install the supplied external power supply and connect the printer to a host device using the USB Type B, RS232 or Ethernet interface as required. Load thermal transfer labels with a maximum media width of 60 mm and set the ribbon and label guides. Configure print parameters and templates via the touchscreen display or load templates from internal memory or a Micro SD card. Start printing from the connected host or use the device controls to print stored templates.

Recommendations

For consistent print quality, use ribbons and label media compatible with thermal transfer printing, keep the print head clean and store labels in a dry environment. Use the internal memory or a Micro SD card to store frequently used templates and settings for faster operation.
