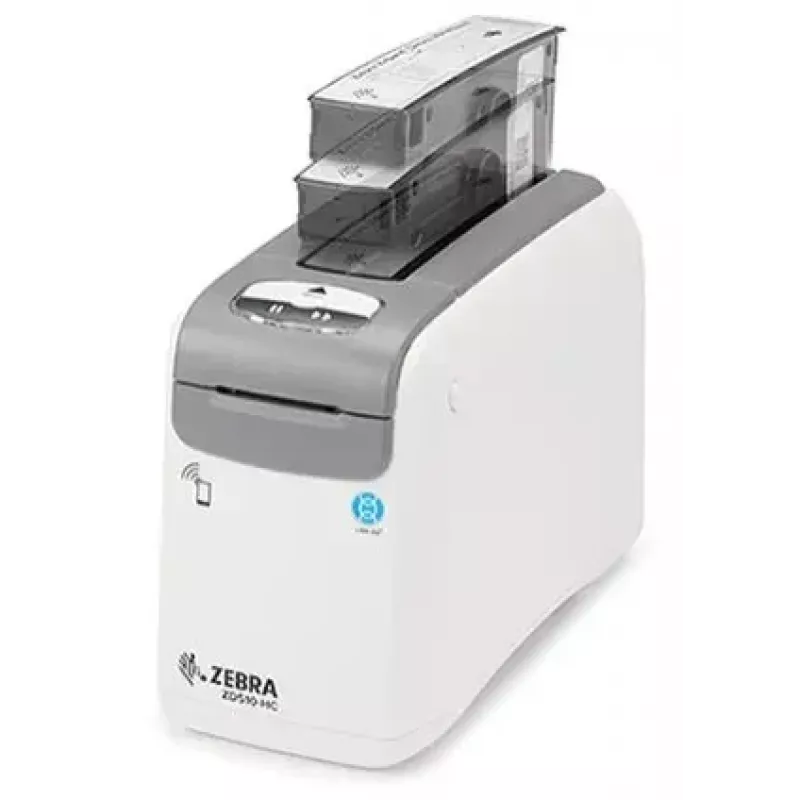

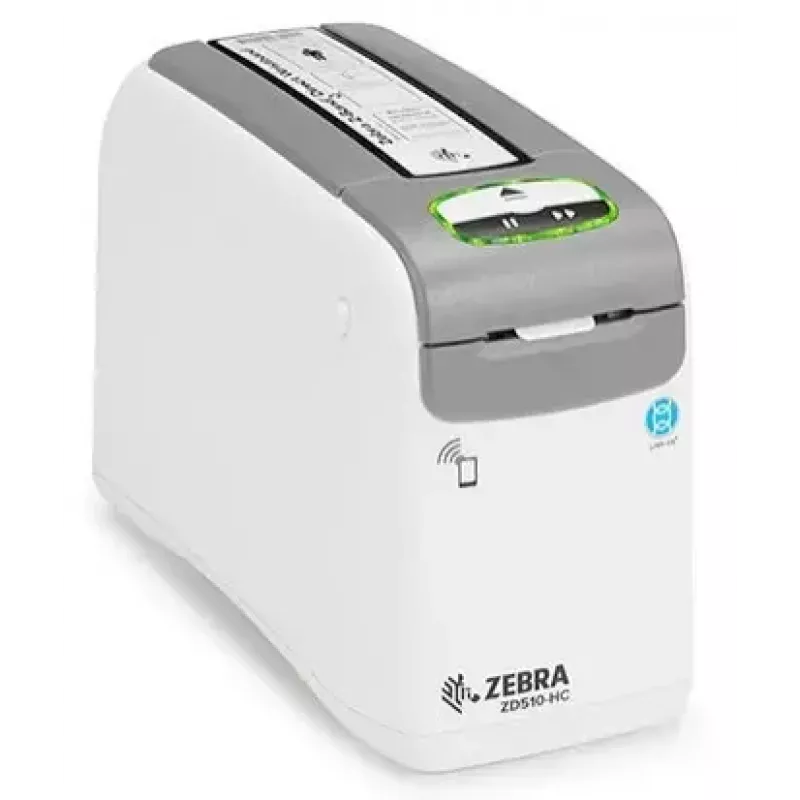

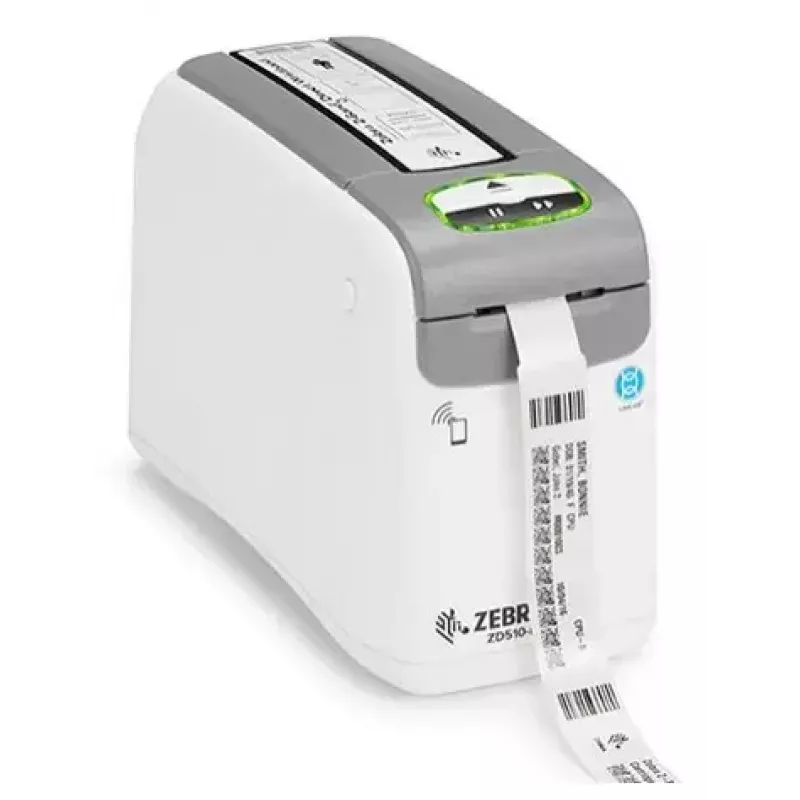

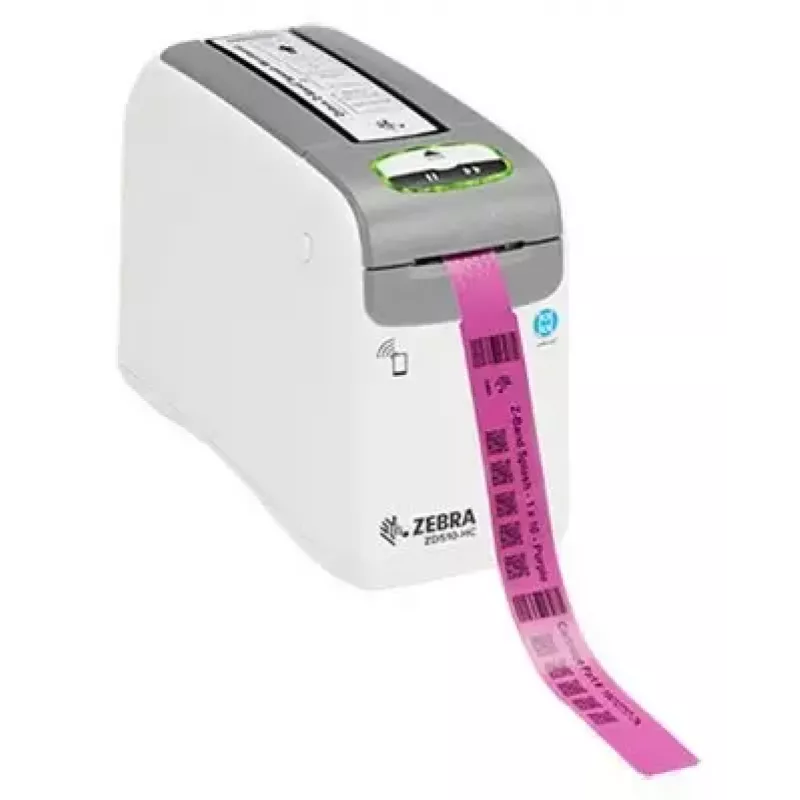

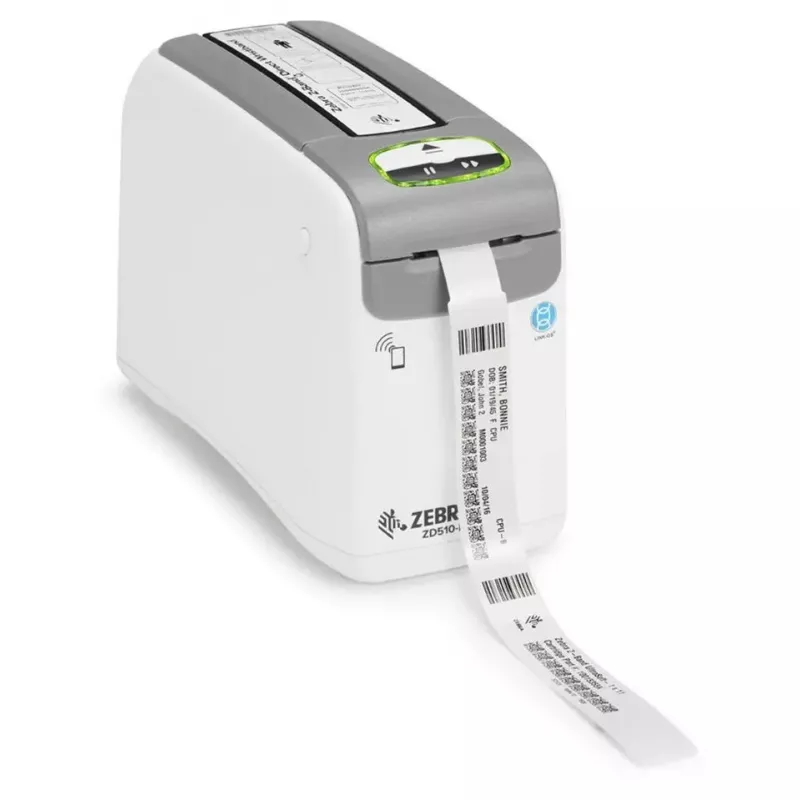

Impresora de etiquetas Zebra ZD510-HC térmica directa 300 x 300 DPI 102 mm/s Ethernet, USB, 30,16 mm de ancho de impresión

The Zebra ZD510-HC is a healthcare-ready direct thermal wristband and label printer designed for clinical and point-of-care environments. It combines easy-to-load wristband cartridges with reliable printing mechanics, a disinfectant-ready UV-resistant housing and wired connectivity to deliver fast, consistent wristband printing for patient identification and similar small-label tasks.

Advantages

The printer requires minimal training: insert a Zebra Z-Band cartridge and start printing; the device auto-detects wristband size and optimises darkness and speed. Z-Band wristbands are engineered for durable images and reliable scanning, with resistance to hand sanitizers and availability in multiple sizes and colours. The housing is designed to withstand regular sanitising with harsh chemicals and UV light, helping to reduce cross-contamination risk. Wired Ethernet and USB connections provide stable networked printing in clinical settings.

Suitable for

• Patient wristbands and identification in hospitals and clinics
• Point-of-care label printing in wards and nursing stations
• Wristbands for amusement parks, water parks and events
• Small-label printing where a compact, disinfectant-ready device is needed

When it may not be suitable

The ZD510-HC uses direct thermal printing, so it is not suitable for applications requiring long-term exposure to heat or sunlight without additional protective measures, as direct thermal prints can fade over very long periods. It does not include wireless (Wi‑Fi) connectivity out of the box, so locations requiring wireless printing will need a wired network or external wireless bridging solution.

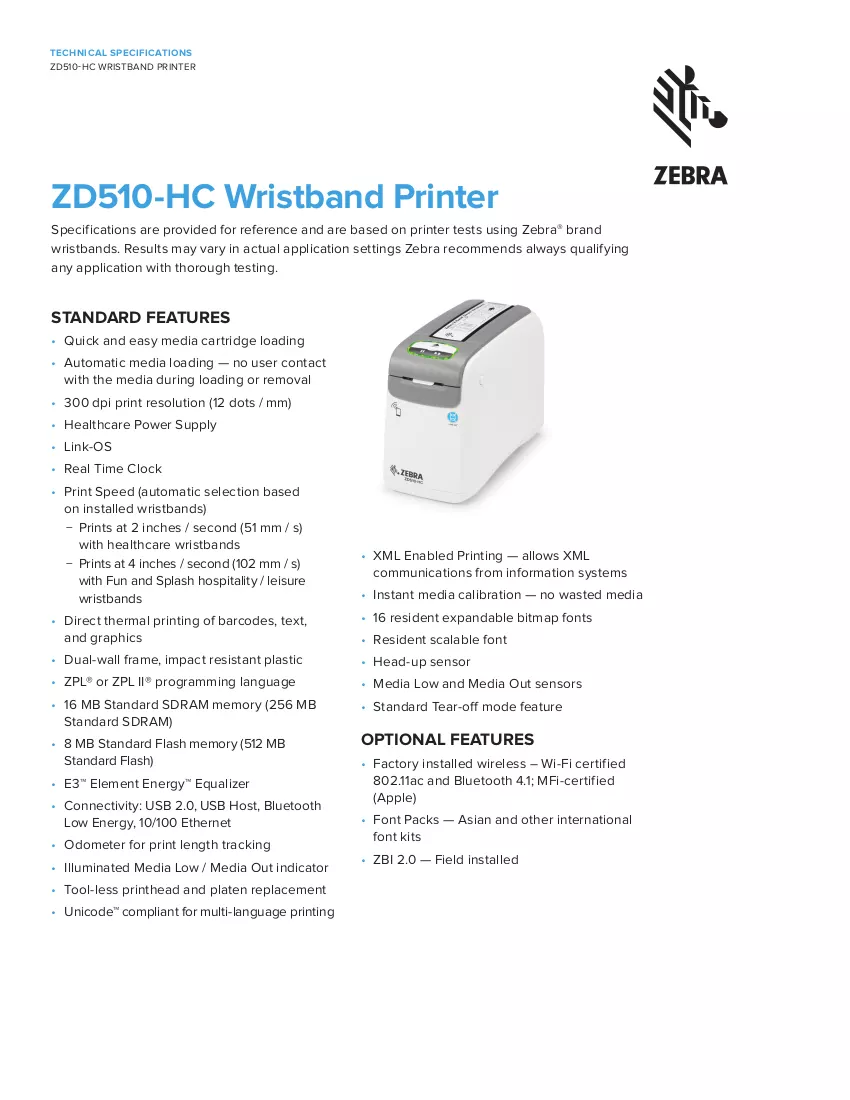

Key specifications

• Print technology: Direct thermal
• Maximum resolution: 300 x 300 DPI
• Maximum print width: 30.16 mm
• Print speed: up to 102 mm/sec
• Connectivity: Ethernet LAN, USB
• Weight: 1.4 kg
• Colour (housing): White, disinfectant-ready UV-resistant enclosure

How to use

Load a Zebra Z-Band wristband cartridge into the ZD510-HC, connect the printer to a wired network via Ethernet or to a workstation via USB, and send print jobs from your hospital information system or label-design software. The printer will automatically detect the wristband size and apply recommended darkness and speed settings; adjust settings in the printer driver or application if a different print density is required.

What to consider before purchase

• Requirement for wired connectivity (Ethernet/USB) — no built‑in Wi‑Fi
• Use of direct thermal media — consider longevity needs and environmental exposure
• Compatibility with Zebra Z-Band wristband cartridges for antimicrobial-coated wristbands
• Space and mounting at point-of-care locations; device weight 1.4 kg

Recommendations

Use genuine Zebra Z-Band wristbands to ensure optimal print durability and scanning performance. Clean the printer housing according to Zebra’s disinfectant guidelines and place the device on a stable surface close to the point of use to minimise handling time and support infection-control workflows.
