Impresora de gran formato Epson SureColor SC-T5400M — A0, 2400×1200 dpi, ancho máximo de rollo 91,4 cm, grosor de medios 0,8 mm

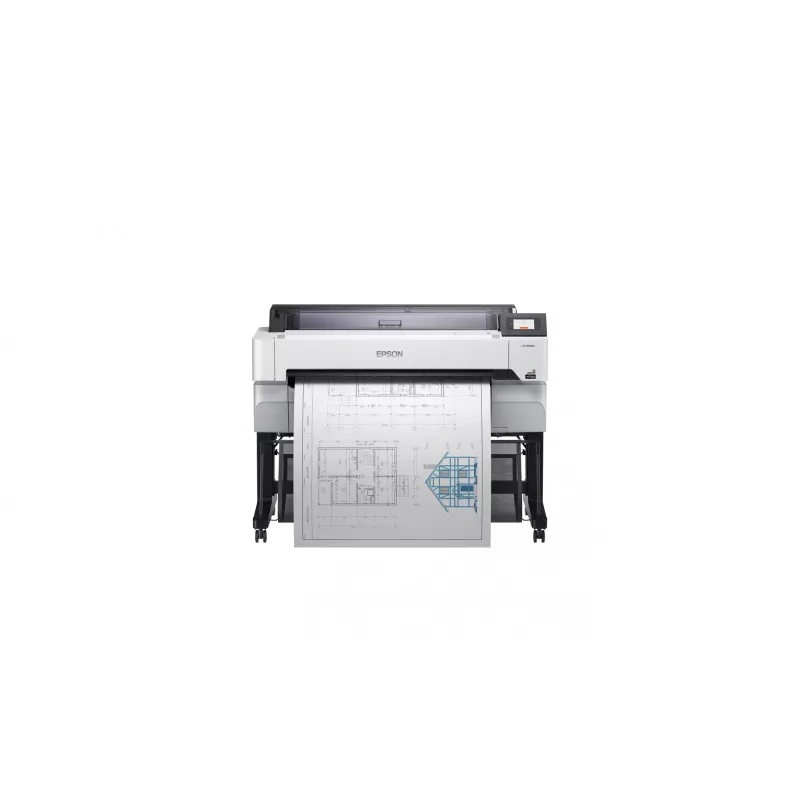

The Epson SureColor SC-T5400M is a large-format printer and integrated scanner engineered for technical drawings, CAD output and poster production. It supports printing up to A0 (841 × 1189 mm) at a maximum optical resolution of 2400 × 1200 DPI, accepts media up to 0.8 mm thick, and accommodates rolls with a maximum width of 91.4 cm. Connectivity options include Apple AirPrint and secure network protocols (TLS/SSL). The built-in flatbed scanner reaches up to 600 × 600 DPI and offers scan-to-email, scan-to-FTP and scan-to-USB functions. The device is suited for environments requiring precise line work, detailed plots and reliable large-format output.

Advantages

The printer delivers high-resolution output up to 2400 × 1200 DPI to reproduce fine details and sharp line work required for technical plans and maps. Support for media thickness up to 0.8 mm and a 91.4 cm maximum roll width provides flexibility for a range of substrates, from standard plotter paper to thicker media. Integrated scanning with up to 600 × 600 DPI and networked scan destinations simplifies digitizing originals. Secure connectivity via TLS/SSL and support for AirPrint enable both protected network deployment and convenient mobile printing.

Suitable for

• Architectural and engineering drawings (CAD, blueprints)
• Large posters and presentation boards
• GIS maps and technical diagrams
• Scan-to-digital workflows for document archiving

Key specifications

• Maximum print size: A0 (841 × 1189 mm)
• Maximum print resolution: 2400 × 1200 DPI
• Maximum roll width: 91.4 cm
• Maximum media thickness: 0.8 mm
• Built-in scanner resolution: up to 600 × 600 DPI
• Scan destinations: email, FTP, USB
• Connectivity: network with TLS/SSL support, Apple AirPrint
• Weight: 88 kg

How to use

Install the printer on a stable, level surface sized to accommodate its footprint and allow access to the roll and scanning area. Load media either from roll or sheet according to the user guide, ensuring thickness does not exceed 0.8 mm and roll width does not exceed 91.4 cm. Configure network settings via the control panel or the web interface, enabling TLS/SSL for secure communications and setting up AirPrint if mobile printing is required. For scanning, place the original on the flatbed and choose the appropriate resolution and destination (email, FTP or USB) from the scanner menu. Use the printer driver on your workstation to select A0 or other supported page sizes and the desired print resolution before sending a job.

Recommendations

For consistent print quality, use media recommended for large-format technical printing and verify the media thickness before loading. Calibrate printer settings for line art and CAD output to preserve fine detail, and schedule regular maintenance tasks such as head checks and nozzle cleaning. When using network scan and print functions, maintain updated firmware and enforced TLS/SSL settings to protect data in transit.
