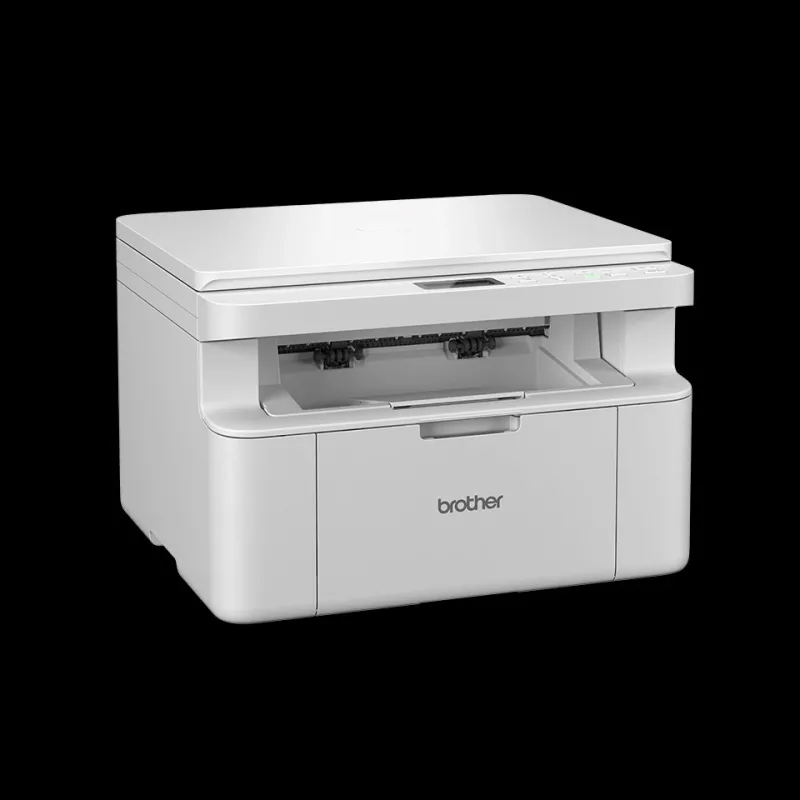

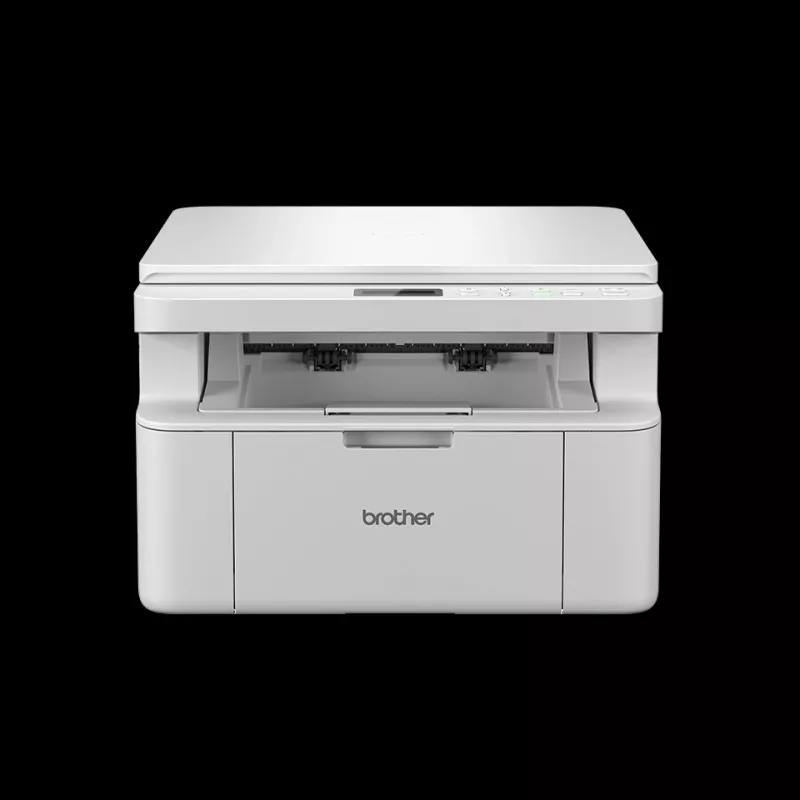

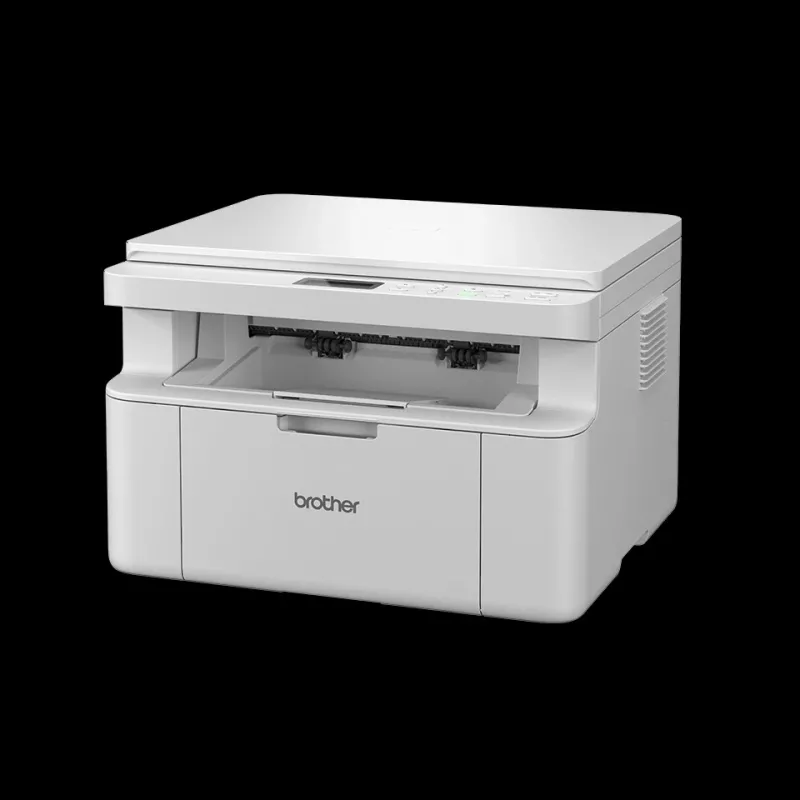

Impresora multifunción láser Brother DCP-L1630W — monocromo, 20 páginas/min, WLAN, dúplex, 2400x600 DPI

Brother DCP-L1630W is a monochrome multifunction laser device for printing, copying and scanning. It supports up to 20 ppm black print speed with a maximum resolution of 2400 x 600 DPI, manual duplex printing and a 150-sheet input capacity with 50-sheet output. Built-in Wi‑Fi and Wi‑Fi Direct enable mobile printing; the device includes a 2-line LCD, USB port and 128 MB internal memory for basic office and home use.

Advantages

Compact white housing with button controls and a 2-line LCD provides straightforward operation. Mono laser print technology offers sharp black text at up to 2400 x 600 DPI. Wireless connectivity including Wi‑Fi and Wi‑Fi Direct plus support for Brother Mobile Connect allows printing from mobile devices. Manual duplex and N-in-1 functions reduce paper usage. The unit includes necessary starter consumables and an AC cable for immediate setup.

Suitable for

• Home offices and small businesses needing reliable black-and-white printing
• Environments where space is limited and a compact multifunction device is required
• Mobile users who need Wi‑Fi or Wi‑Fi Direct printing from smartphones and tablets

Key specifications

• Print technology: Monochrome laser
• Print speed (A4, black, normal): 20 ppm
• Maximum print resolution: 2400 x 600 DPI
• Duplex printing: Manual duplex supported
• Input capacity: 150 sheets
• Output capacity: 50 sheets
• Internal memory: 128 MB
• Display: Built-in 2-line LCD
• Connectivity: Wi‑Fi, Wi‑Fi Direct, USB; mobile printing via Brother Mobile Connect
• Scan type: Flatbed CIS scanner
• Optical scan resolution: 600 x 1200 DPI
• Copying: Mono copying, maximum copy resolution 600 x 600 DPI
• Supported paper sizes: A4, A5, B5, Letter
• Paper weight supported: 65–105 g/m²
• Power: AC 220–240 V, 50/60 Hz
• Operating temperature: 10–32.5 °C
• Dimensions (W×D×H): 385 × 340 × 255 mm
• Weight: 11.8 kg

How to use

Connect the device to mains power using the included AC cable and follow the quick installation guide to complete initial setup. Use the front paper tray for loading standard A4 or compatible paper types within the recommended 65–105 g/m² range. Configure wireless settings via the LCD and the printer software or use Wi‑Fi Direct for direct mobile connections. For duplex printing, enable manual duplex in the driver and follow on-screen prompts to reinsert pages. Use the flatbed scanner for single-page scanning tasks and select TWAIN or OCR destinations in your scanning application as needed.

Recommendations

For consistent print quality and reliable operation, use paper within the specified weight range, keep the device in an environment between 10–32.5 °C and 20–80% relative humidity, and update printer drivers to maintain compatibility with Windows, macOS, iOS and Linux systems.
