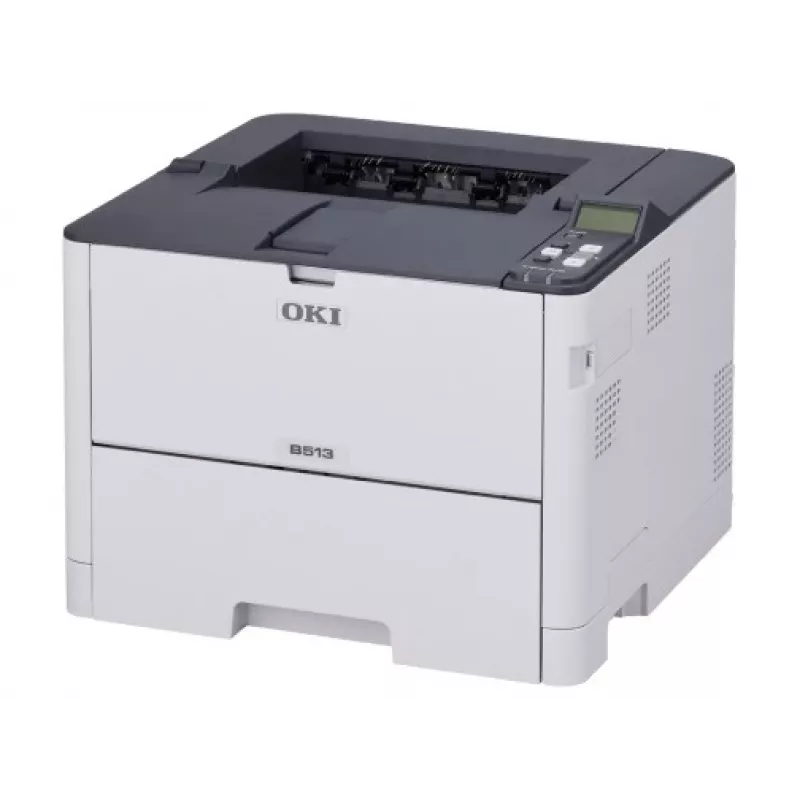

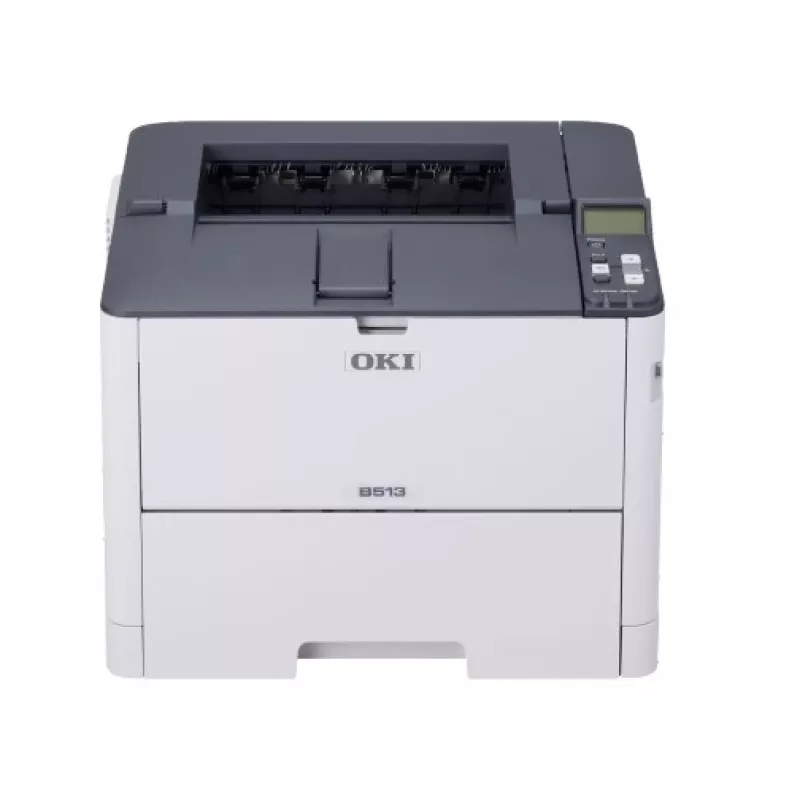

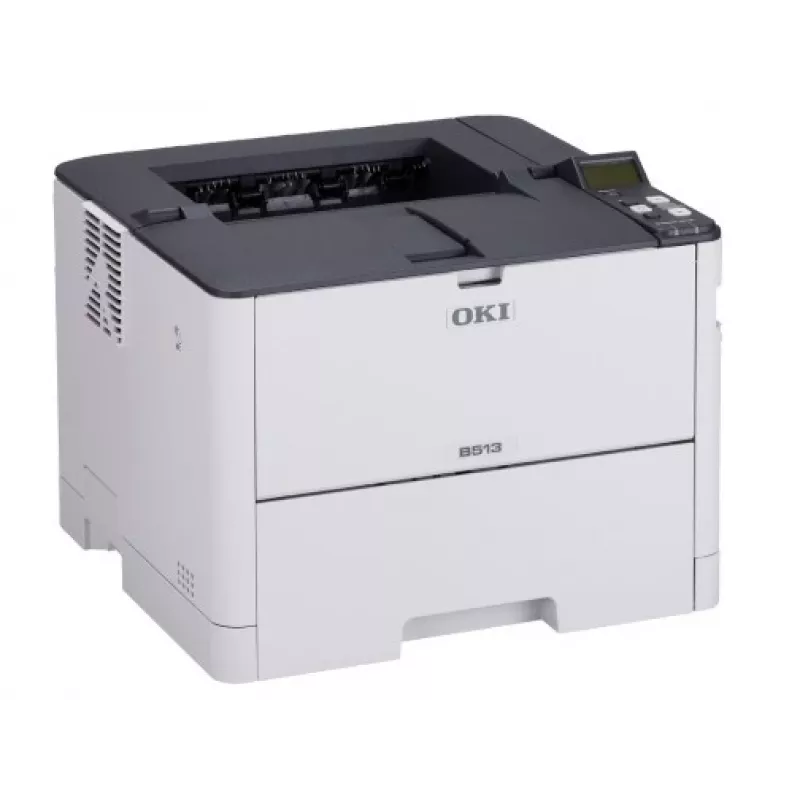

Impresora OKI B513dn LED 1200 x 1200 DPI A4 45 ppm

The OKI B513dn is a compact, high-performance mono LED printer designed for productive offices with heavy print volumes. It delivers up to 45 pages per minute at a maximum resolution of 1200 x 1200 DPI, supports duplex printing and offers a durable design rated for up to 7 years or 600,000 pages. The printer combines robust LED printing technology with improved energy efficiency, a front-only service orientation and an upgraded display and connectivity to simplify operation across platforms.

Advantages

The B513dn provides reliable, high-speed monochrome output in a small footprint suitable for tight spaces and under-desk placement. It includes large standard paper capacity with options to expand, quick first-page output, and support for a wide range of media sizes and weights up to 256 gsm. Front-only access and a built-in LCD make installation and maintenance straightforward.

Suitable for

• High-volume office printing and departmental use
• Workspaces with limited floor or shelf space
• Environments requiring duplex documents and fast turnaround
• Users needing support for a variety of paper sizes, including banners

Key specifications

• Print technology: LED
• Print speed: 45 ppm (A4)
• Resolution: 1200 x 1200 DPI
• Duplex printing: Yes
• First page out (approx.): 4.1 seconds
• Maximum monthly duty cycle: 100,000 pages

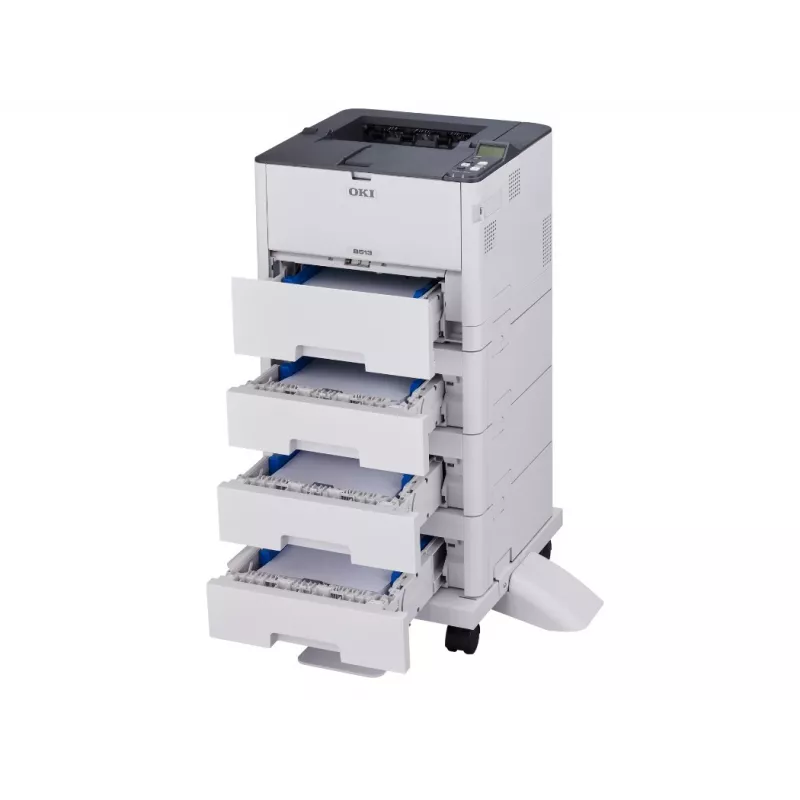

• Standard input capacity: 630 sheets (expandable to 2,220 sheets)
• Supported media: A6 to 1.32 m banners, up to 256 gsm
• Memory: 512 MB; Processor: 667 MHz
• Connectivity: USB, Ethernet LAN
• Built-in display: LCD
• Product colour: White, Grey
• Weight: 15.5 kg

How to use

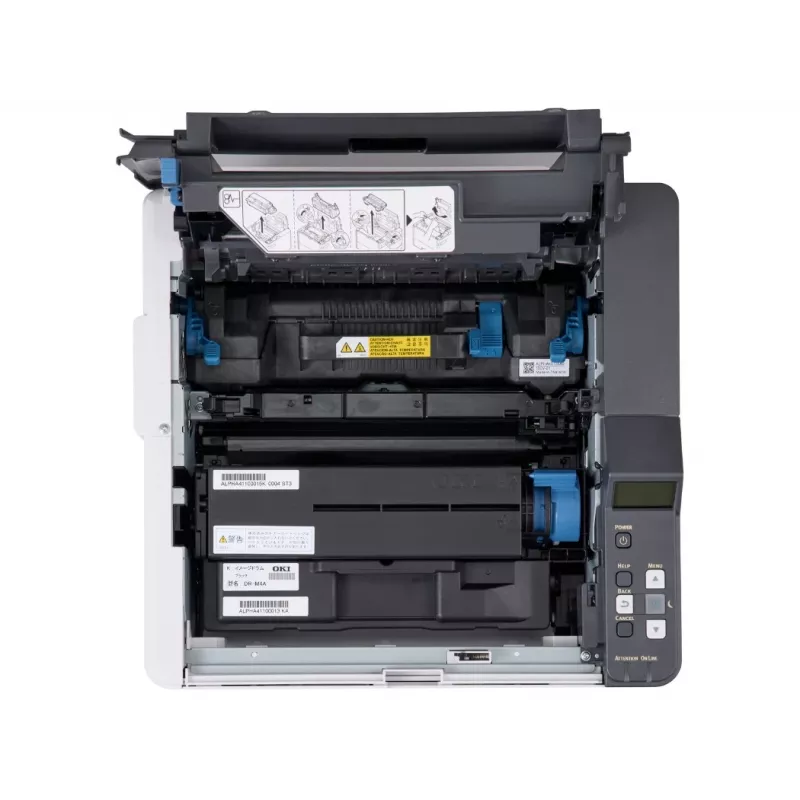

Place the OKI B513dn on a stable surface with at least 10 cm clearance around the device. Load paper into the front input tray according to the size guides, select the required print settings on the LCD or from your computer, and send the job via USB or network connection. For duplex printing, enable double-sided printing in the printer driver. Routine maintenance such as replacing consumables and clearing jams is carried out from the front of the device.

Recommendations

For consistent performance in high-volume environments, use media within the supported weight range (up to 256 gsm), perform regular consumable replacements, and ensure the device has the recommended 10 cm clearance. For networked installations, use the Ethernet connection for stable multi-user access.
