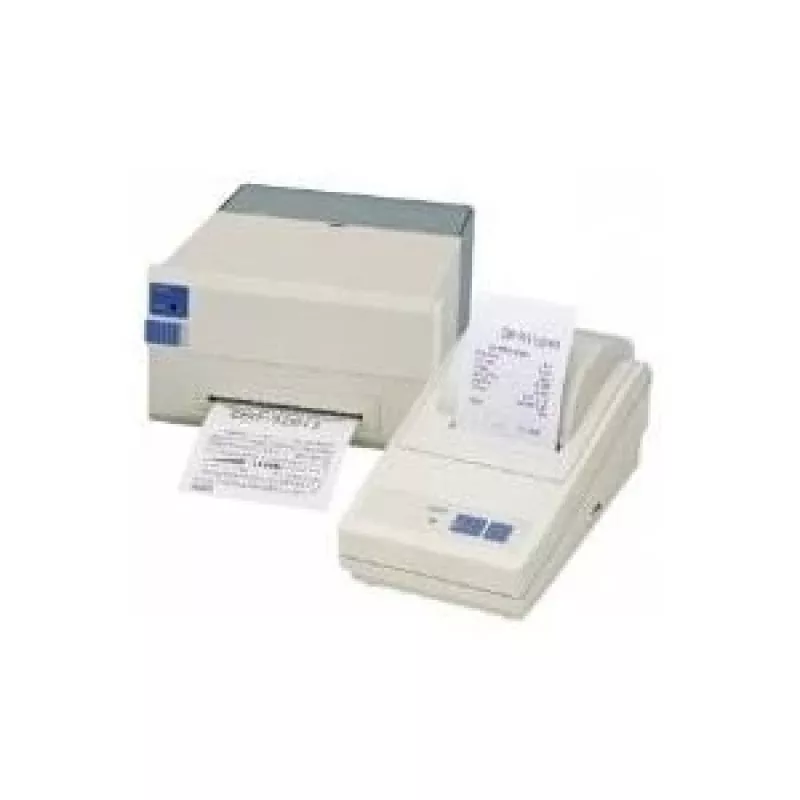

Impresora POS Citizen CBM-920II

The Citizen CBM-920II is a wired dot-matrix POS printer designed for panel mounting and reliable high-speed receipt printing. It prints at up to 150 mm/sec, supports a maximum paper width of 57.5 mm and roll diameters up to 6.9 cm, and is built with a robust mechanism rated for a minimum MCBF of 1,000,000 lines. The printer includes an automatic paper loading system, a paper end sensor and an integral memory switch, and supports bit-image graphics printing for flexible receipt layouts.

Advantages

Robust construction and a high MCBF provide dependable long-term operation in retail and POS environments. Fast 150 mm/sec dot-matrix printing balances speed and reliability for receipts and simple graphics. Built-in auto loading and a paper end sensor reduce operator intervention, while the integral memory switch and bit-image graphics capability increase formatting flexibility. Compact white housing and light weight (0.47 kg) make it suitable for space-constrained installations.

Suitable for

• Retail tills and checkout counters
• Hospitality and ticketing where durable receipt printing is required
• Panel-mounted POS systems with space constraints
• Environments needing basic graphics on receipts (logos, simple images)

Key specifications

• Model: Citizen CBM-920II (MPN CBM920II24RFDC)
• Print technology: Dot Matrix
• Print speed: 150 mm/sec
• Maximum printing width: 57.5 mm
• Maximum roll diameter: 69 mm
• Ribbon life: approx. 1.5 million characters
• Printable media thickness: up to 130 µm
• Weight: 0.47 kg
• Product colour: White
• Panel-mount ready with auto loading and paper end sensor

How to use

Install the CBM-920II into the panel cutout according to the panel-mounting instructions, connect the required wired interface and power supply, then load the paper roll using the automatic loading mechanism. Configure the printer settings via the integral memory switch and verify paper-end sensor operation. Send print jobs from the POS system using the appropriate driver or protocol; the printer supports standard dot-matrix command sets and bit-image graphics for logos or receipts.

Recommendations

Use compatible ribbons and paper within the specified thickness (up to 130 µm) and roll diameter (≤69 mm). Regularly check ribbon life and replace when print density declines; following these measures will maintain reliable performance and help achieve the specified MCBF.
