Impresora POS Citizen CBM-920II matricial 150 mm/s con cable

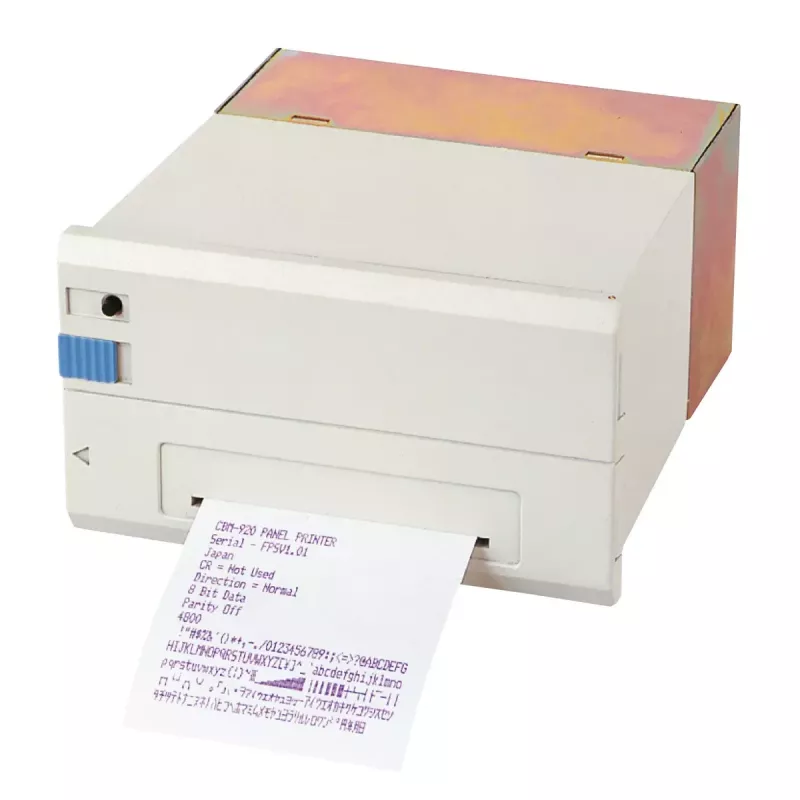

The CBM-920II is a wired dot matrix POS printer designed for panel mounting. It offers a print speed of 150 mm/sec and includes an automatic paper loading mechanism and a paper end sensor to maintain continuous operation. The printer has compact dimensions (106 mm width, 180 mm depth, 88 mm height) and a white enclosure suitable for retail and hospitality counters.

Advantages

The device features robust construction with a mean cycles between failures metric (MCBF) of at least 1.0 million lines, ensuring long-term reliability. It supports bit image graphics printing and includes an integral memory switch to expand functionality. A durable autocutter rated for 1.5 million cuts reduces maintenance needs and supports high-volume usage.

Suitable for

• Retail point-of-sale receipts
• Hospitality check and order printing
• Panel-mounted kiosk or counter installations
• Environments requiring continuous unattended printing

Key specifications

• Printing technology: Dot matrix
• Maximum print speed: 150 mm/sec
• Autocutter durability: 1.5 million cuts
• MCBF (reliability): ≥ 1,000,000 lines
• Paper handling: Automatic paper loading, paper end sensor
• Graphics: Bit image graphics printing supported
• Interface: Wired connectivity
• Dimensions (W × D × H): 106 × 180 × 88 mm
• Color: White

How to use

Mount the CBM-920II in the designated panel opening following the installation instructions for secure fixing. Connect the printer to a power source and the host POS system using the wired interface. Load roll paper using the automatic loading feature and verify the paper end sensor is unobstructed. Configure print settings and memory switch options through the device controls or the POS software as required before normal operation.

Recommendations

Use paper rolls within the manufacturer's specified width and thickness ranges, perform regular cleaning of the print head and paper path, and schedule preventive maintenance checks to preserve the MCBF and cutter life. For panel-mounted installations, ensure adequate ventilation and secure mounting to prevent vibration or misfeeds.
