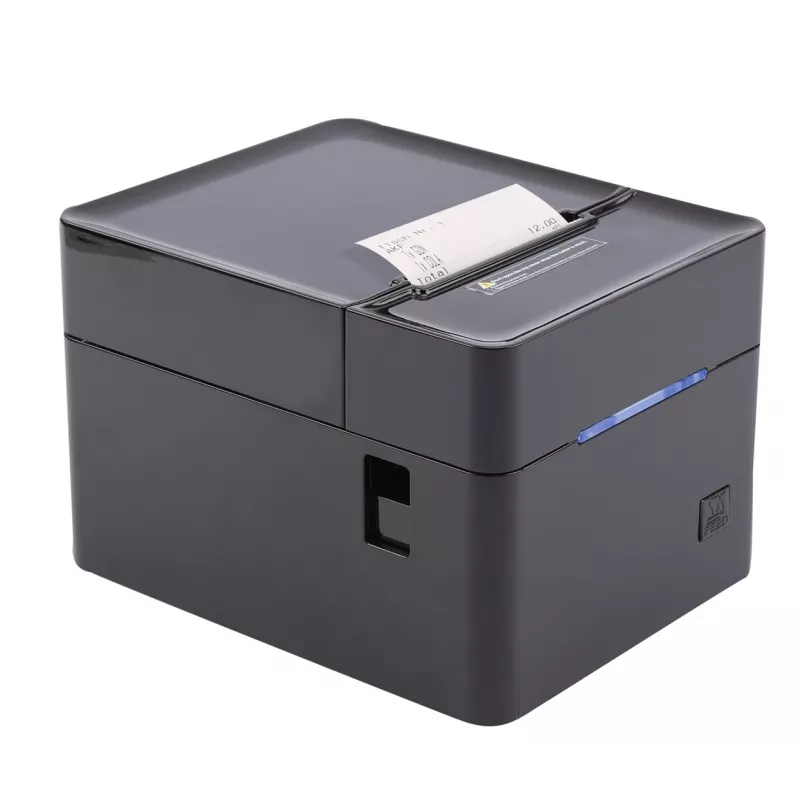

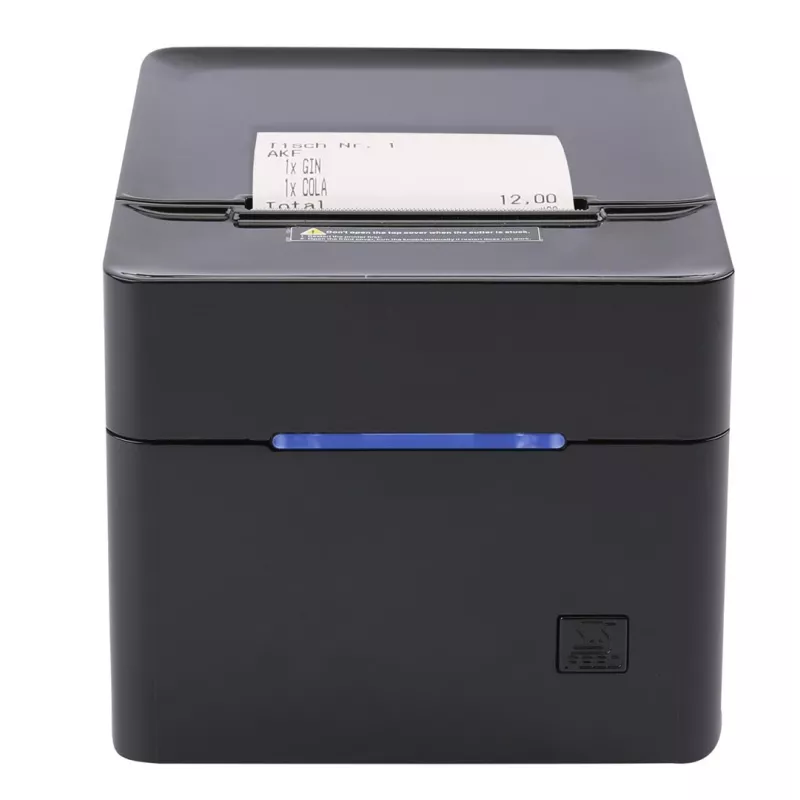

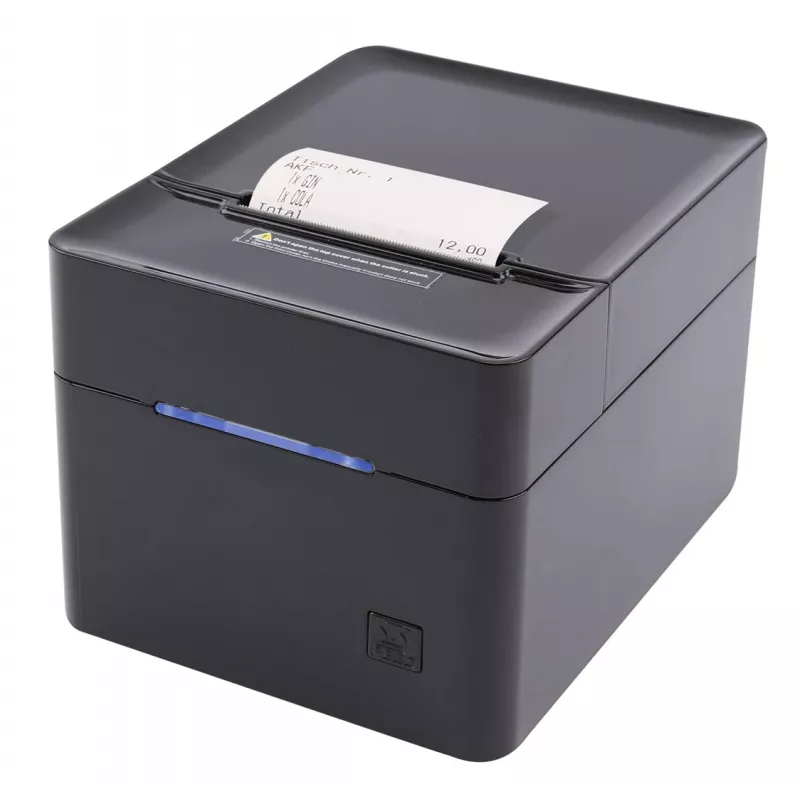

Impresora POS Olympia 947990055 — impresión térmica directa, 250 mm/s, diámetro de rollo 80 mm, ancho de impresión 80 mm, USB Type-A, RS-232, con cable, negra

Olympia 947990055 is a wired direct thermal POS printer designed for printing receipts and tickets at a maximum speed of 250 mm/min. It accepts thermal paper rolls up to 80 mm in diameter and provides a print width of up to 80 mm, making it suitable for retail and hospitality environments that require compact, reliable receipt output. The printer connects via USB Type-A and RS‑232 serial interfaces and is supplied in black.

Advantages

The printer uses direct thermal technology which eliminates the need for ink or toner and reduces maintenance. It supports partial and full paper cutting options and offers several character sizes and line capacities for flexible receipt formatting. Multiple wired interfaces (USB‑A, RS‑232, Ethernet, parallel) ensure compatibility with a wide range of POS systems. Its compact form and moderate weight simplify installation in small counters or ticketing points.

Suitable for

• Retail point-of-sale receipt printing
• Hospitality receipts and invoices
• Ticketing and queue management slips

Key specifications

• Printing method: direct thermal
• Maximum print speed: 250 mm/min
• Printable width: 80 mm (paper width 80 mm, effective print width 72 mm)
• Maximum paper roll diameter: 80 mm
• Paper cut: partial cut or full cut
• Character sizes: 9×17 or 12×24 (at 200 dpi)
• Characters per line: 42 / 48 / 53 (depending on font/size)
• Connectivity: USB Type-A, RS‑232 serial, RJ45 (Ethernet), IEEE1284 (parallel)
• Included data cable: RS‑232 9‑pin to 25‑pin
• Power supply: AC adapter 230 V input, 24 V 2 A output
• Connectivity technology: wired
• Colour: black
• Weight: 1.6 kg

How to use

Install the printer on a stable surface near the POS terminal and connect it to mains power using the supplied 230 V adapter. Load a thermal paper roll (up to 80 mm diameter) following the paper path indicated in the device, close the cover, and feed the paper through the cutter. Connect the printer to your system using the appropriate wired interface (USB‑A, RS‑232, Ethernet or parallel) and install any required drivers or configure the serial parameters on your POS software. Test-print a receipt to confirm correct alignment, character size, and cut operation.

Recommendations

Use good-quality thermal paper sized 80×Ø≤80 mm and store paper rolls away from direct sunlight and high humidity to preserve print contrast. For reliable operation, keep the printer’s print head and cutter free of debris and perform periodic checks of cable connections. Configure the POS software to match the character size and line settings supported by the printer.
