Indicador de funcionamiento direccionable SATEL WZ-400

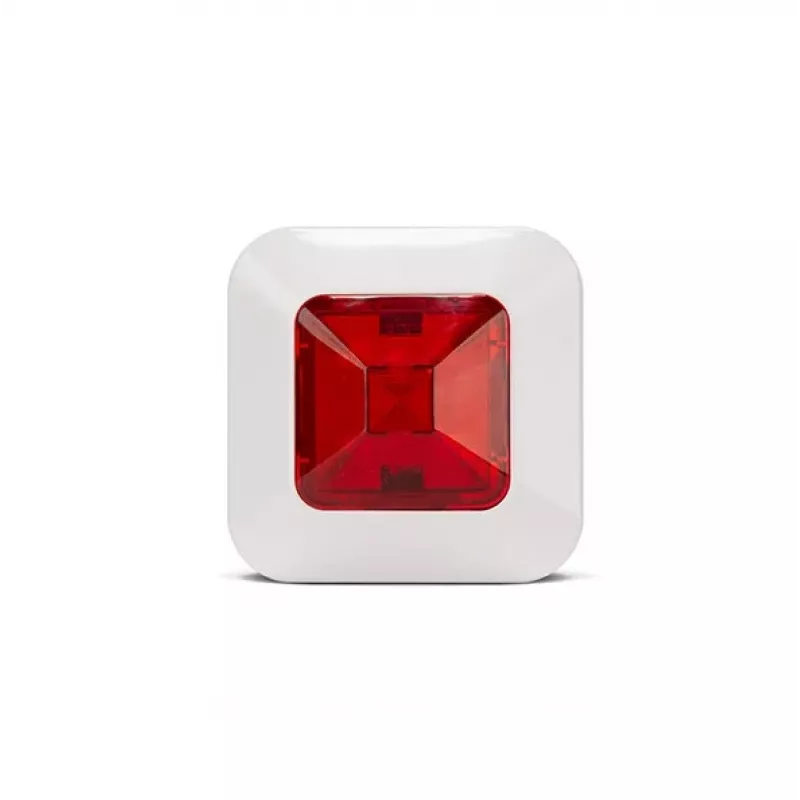

The SATEL WZ-400 is a compact addressable operation indicator designed for use with SATEL INTEGRA and VERSA control panels. It provides clear visual status indication for zones, partitions, or system states via a red LED. The device communicates over the Satel Addressable Bus (RS-485 based) and is powered directly from the bus at 12 VDC. Its flush-mount design fits standard electrical boxes, making it ideal for indoor security and alarm system installations.

Advantages

Easy integration with SATEL alarm systems; low power consumption; reliable LED indication; compact size for discreet mounting.

Suitable for

• Security system installers
• Home and business alarm systems
• Visual status monitoring in control rooms

Key specifications

• Product Type: Addressable Operation Indicator
• Indication Type: LED (Red)
• Compatibility: SATEL INTEGRA, VERSA control panels
• Communication Protocol: Satel Addressable Bus (RS-485 based)
• Operating Voltage: 12 VDC (from bus)
• Current Consumption: 10 mA (standby), 15 mA (LED ON)
• Operating Temperature: -10°C to +55°C
• Humidity: 93 ±3%
• Mounting Type: Flush-mount (in standard electrical box)
• Enclosure Material: PCB with plastic lens/cover
• Protection Class: IP20
• Certification: CE
• PCB Dimensions: 30 x 30 mm

Recommendations

For optimal performance, use with SATEL INTEGRA or VERSA panels and ensure proper bus wiring. Suitable for indoor use only.
