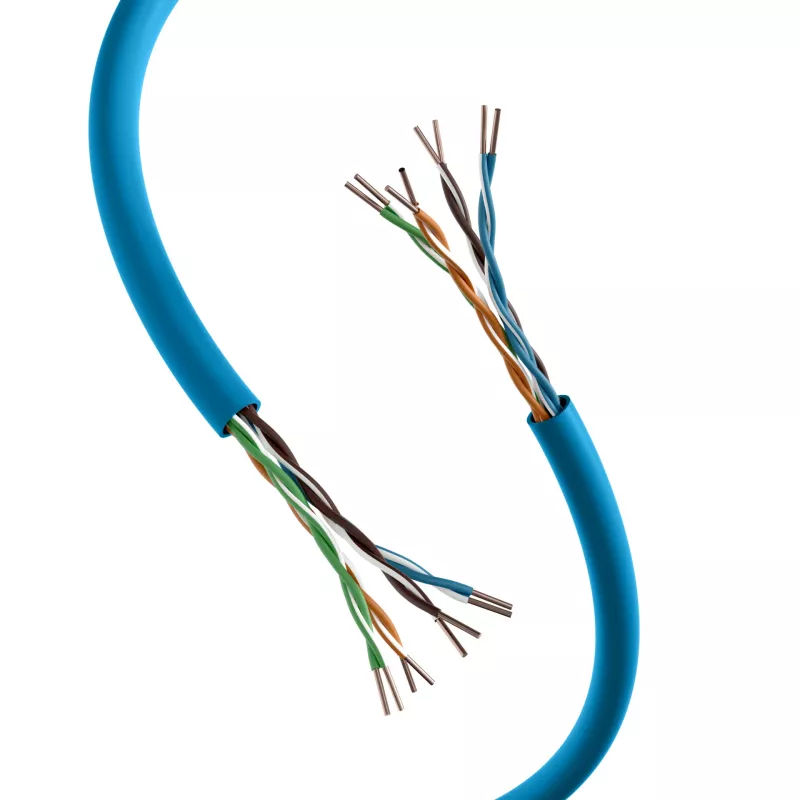

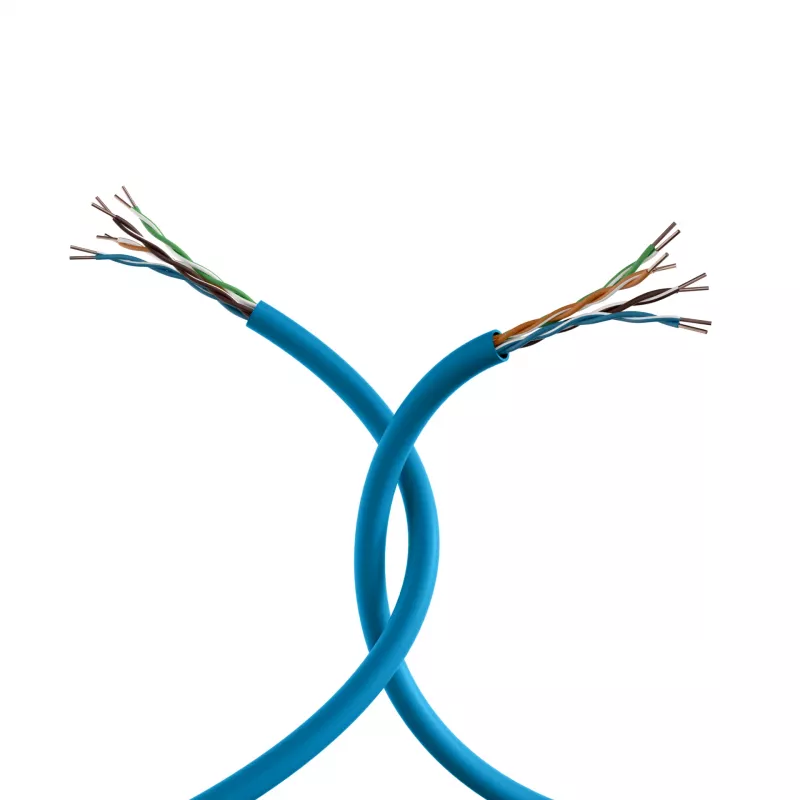

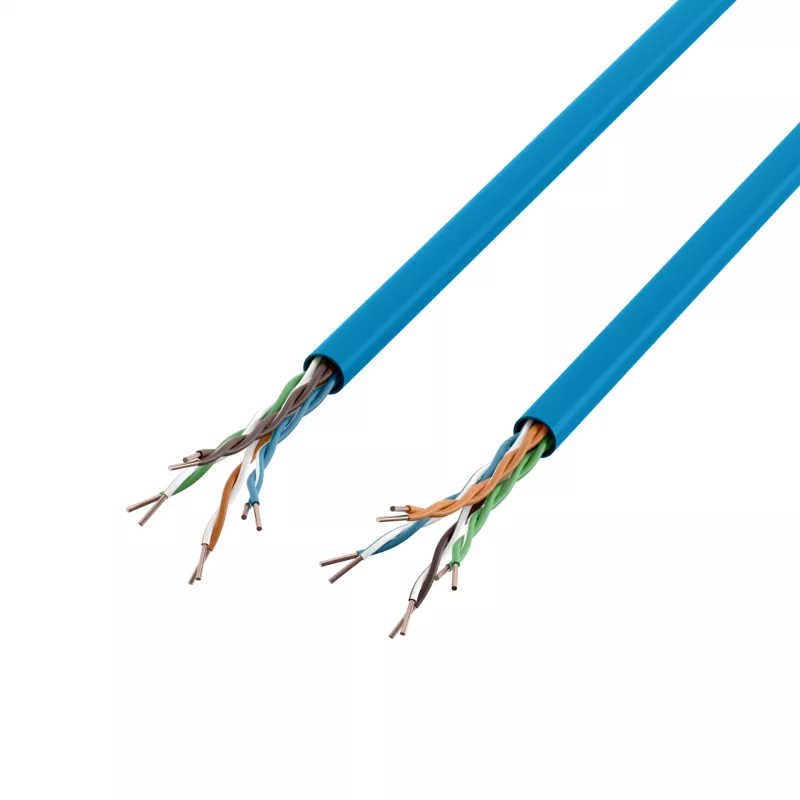

INFRALAN Cat.6A 500 MHz U/UTP cable de instalación de 4 pares, AWG23, CPR B2ca, RAL5015 azul, 305m 99960.305-CPR

Network installation cable for high-performance data transmission up to 10 Gigabit Ethernet. The Cat.6A U/UTP cable with 500 MHz bandwidth and AWG23 solid copper conductors ensures reliable performance in fixed installations.

Advantages

Unshielded twisted pair design reduces weight and cost while maintaining signal integrity for 10GBASE-T applications. The CPR B2ca fire classification allows use in buildings with strict fire safety requirements. The RAL5015 blue jacket provides clear identification for network cabling.

Suitable for

• Structured cabling in office buildings
• Data centers and server rooms
• 10 Gigabit Ethernet backbone connections
• PoE applications up to 100W

Key specifications

• Category: Cat.6A (Class EA)
• Bandwidth: 500 MHz
• Shielding: U/UTP (unshielded)
• Conductor: Solid copper, AWG23
• Length: 305 m on reel
• Fire class: CPR B2ca
• Jacket colour: RAL5015 blue

Recommendations

Use with Cat.6A RJ45 connectors and patch panels to maintain channel performance. Install in conduits or cable trays to protect the unshielded construction.
