INFRALAN U-DQ(ZN)BH OM4 12G (1x12) Eca 3000N LSZH negro cable de fibra óptica 7,5 mm 54512D2E-CPR

With a tensile strength of 3000 N, this INFRALAN U-DQ(ZN)BH OM4 cable withstands demanding installations while delivering high-performance multimode fibre connectivity.

Overview

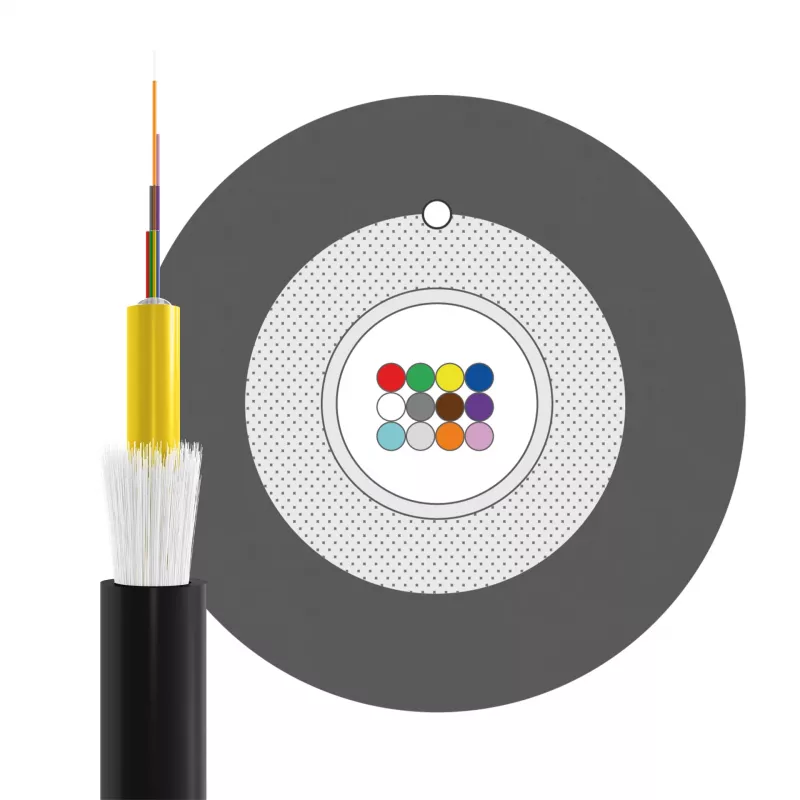

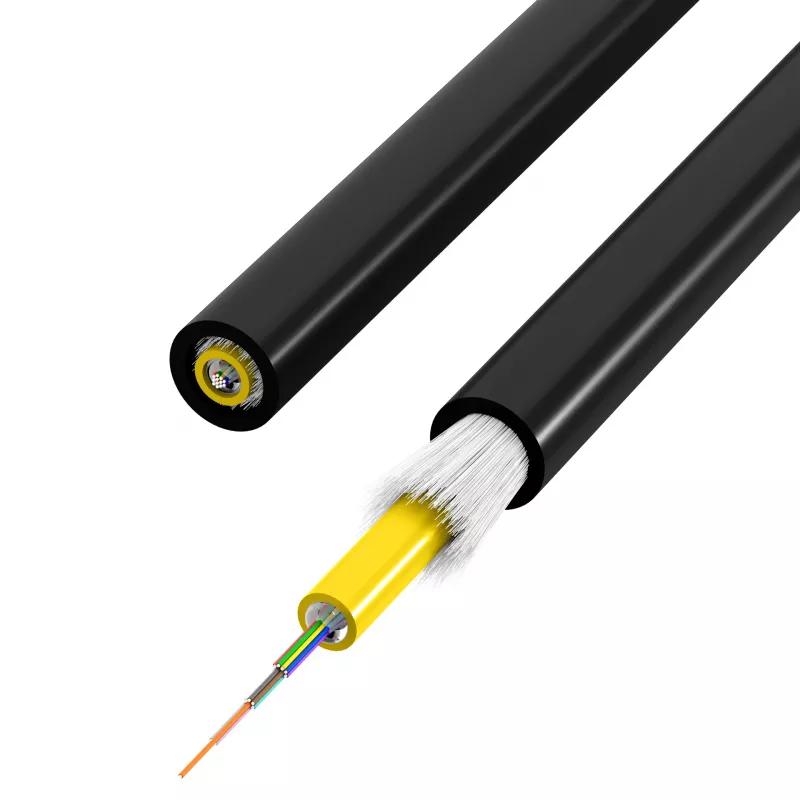

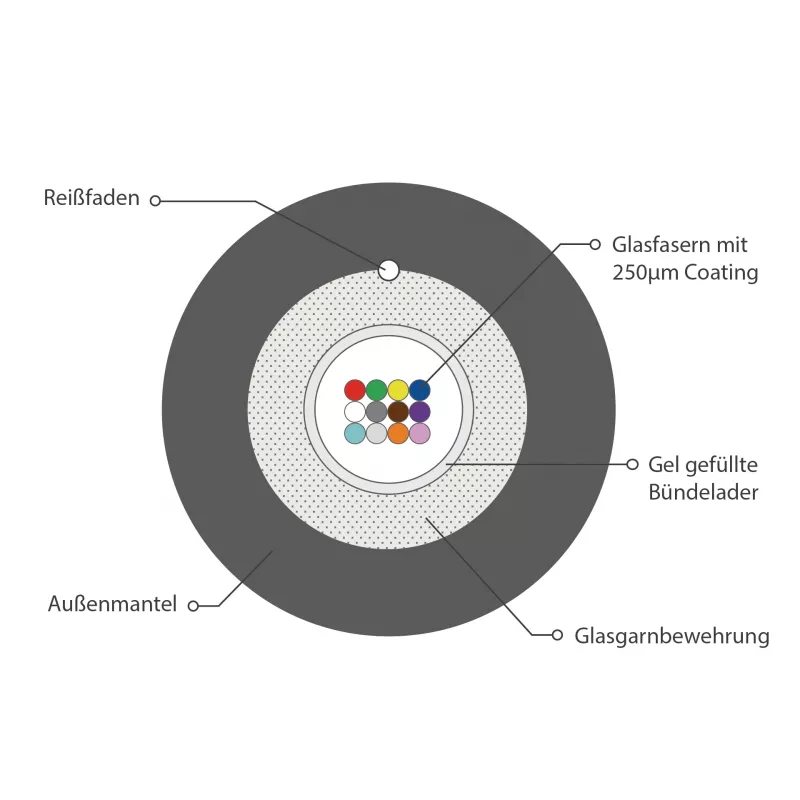

The INFRALAN U-DQ(ZN)BH OM4 12G cable features 12 OM4 multimode fibres in a loose tube construction with non-metallic strain relief. The LSZH (Low Smoke Zero Halogen) black sheath ensures safety in fire-sensitive environments, and the Eca CPR classification confirms compliance with European fire safety standards.

What stands out

• OM4 multimode fibre supports 4700 MHz·km OFL bandwidth at 850 nm for high-speed data transmission.
• Robust 3000 N tensile strength and dry water-blocking design suit universal indoor/outdoor use.
• LSZH jacket emits low smoke and zero halogens, enhancing safety in enclosed spaces.
• Eca CPR rating meets stringent fire performance requirements.

Technical details

• Fibre type: OM4 multimode, 50/125 µm core/cladding diameter
• Fibre count: 12 (1x12)
• Construction: Loose tube, non-metallic strain relief
• Sheath material: LSZH (Low Smoke Zero Halogen)
• CPR fire classification: Eca
• Tensile strength: 3000 N
• Outer diameter: 7.5 mm
• Cable colour: Black
• Wavelengths: 850 nm, 1300 nm
• Bandwidth (850 nm): 4700 MHz·km OFL / 3500 MHz·km EMB
• Bandwidth (1300 nm): 500 MHz·km
• Application: Universal (indoor/outdoor)
• Water blocking: Dry (non-metallic elements)
• Operating temperature: -20°C to +70°C
• Installation temperature: -5°C to +50°C
• Minimum bending radius (static): 75 mm (10 x OD)
• Minimum bending radius (dynamic): 150 mm (20 x OD)

Our verdict

A reliable, high-strength OM4 cable for demanding fibre installations, offering excellent bandwidth and safety compliance.
