InLine 19110K sin categorizar InLine 19110K

Efficient cable management in 1U:Optimizes horizontal cable routing in 19" racks and ensures clear structure when laying patch cables.
Robust plastic D-rings in C-design:Five rotatable cable clips offer flexible cable routing while protecting against kinks and abrasion.
Zero HE mounting option:Saves valuable rack space as installation takes place in the same U area as active devices – without additional height units.
Tool-free adjustment:D-rings can be removed and repositioned without tools – for maximum flexibility when requirements change.
Completely pre-assembled with mounting material:Quick and easy integration thanks to complete scope of delivery including replacement D-rings.

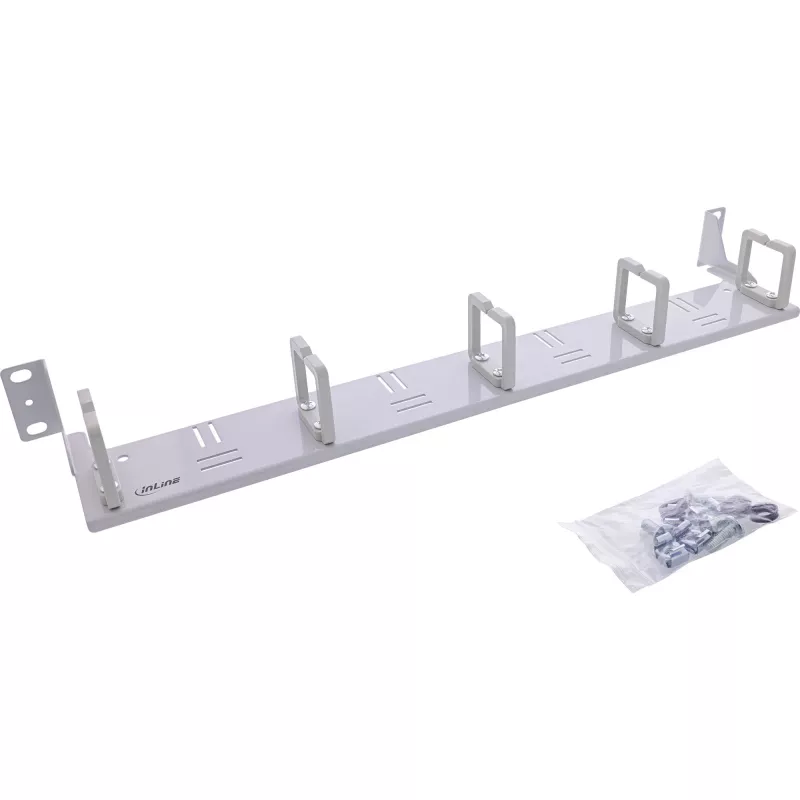

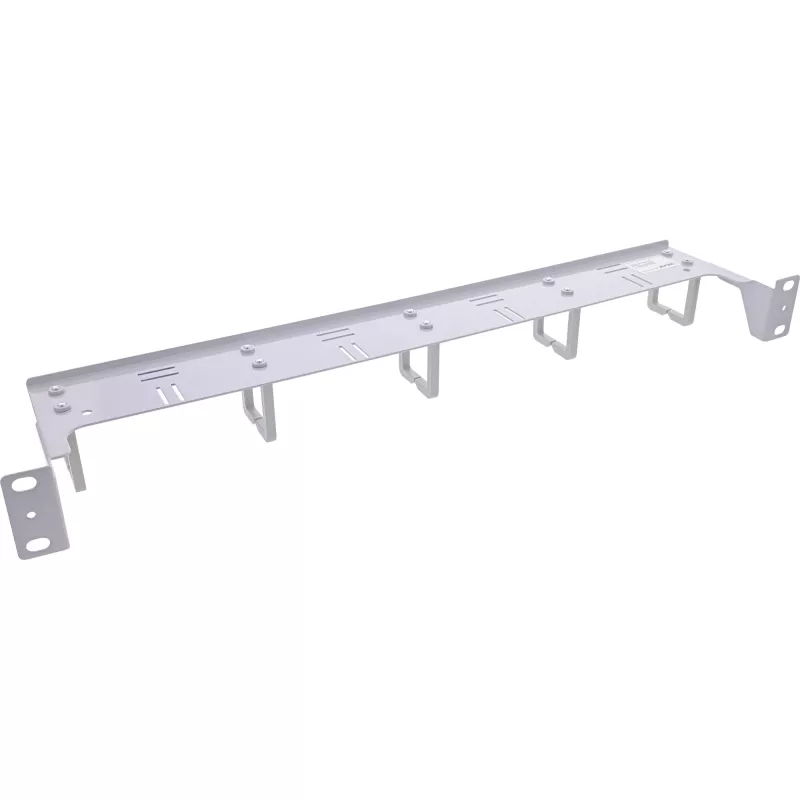

The InLine 19" cable management panel with five horizontal plastic brackets has been specially developed for professional IT environments where structured and efficient cable management is essential. The D-rings in a sturdy C-design can be rotated 360°, removed without tools, and thus offer maximum flexibility.
Ideal for system houses, IT service providers, and network technicians, the 1U panel is suitable for the safe and clean organization of patch and network cables in 19-inch racks. The zero-U mounting saves valuable space, as the panel can be installed directly in the area of the active devices – without any additional height units required.
Rounded plastic brackets prevent damage from abrasion or excessive bending stress, thus extending the service life of the connected devices. The versatile mounting slots also allow for fastening with cable ties, increasing the flexibility of cable routing.
The panel is delivered pre-assembled and includes all mounting materials as well as additional replacement D-rings – a reliable solution for professional-level structured cabling.

Material: Sheet steel (panel), plastic (D-rings)
Installation height: 1U
Compatibility: 19-inch racks
Depth: approx. 100 mm
Dimensions of D-rings: approx. 43 × 43 mm
Number of D-rings: 5
D-rings: removable without tools
Scope of delivery: panel, mounting hardware, replacement D-rings

InLine 19110K. Type: Cable panel, Product colour: White. Quantity per pack: 1 pc(s). Weight: 325 g

How to use

Mount the panel into a standard 19" 1U rack using the supplied hardware; the L-shaped profile positions cable guides to reduce bend and strain. Route cables through the C-type brackets and over the rounded D-rings; secure cabling with cable ties through the surface slots as needed. D-rings can be rotated or removed without tools to adapt to different cable bundles or maintenance tasks.

Recommendations

Install the panel adjacent to the equipment it serves to maximise the zero-HE benefit and minimise cable length. Use the rounded D-rings for delicate patch cords and avoid sharp bends; replace D-rings if worn and keep mounting hardware tightened to prevent movement.
