InLine 57885C Switch KVM, 2 puertos, HDMI, 8K@60Hz, USB 3.2, con IR y RS-232

The InLine 57885C KVM switch lets you control two computers with one mouse, keyboard, and HDMI display. It supports resolutions up to 8K@60Hz and 4K@144Hz, with HDR formats including Dolby Vision and HDR10+. Switch between systems via front buttons, hotkeys, IR remote, or RS-232.

Key features

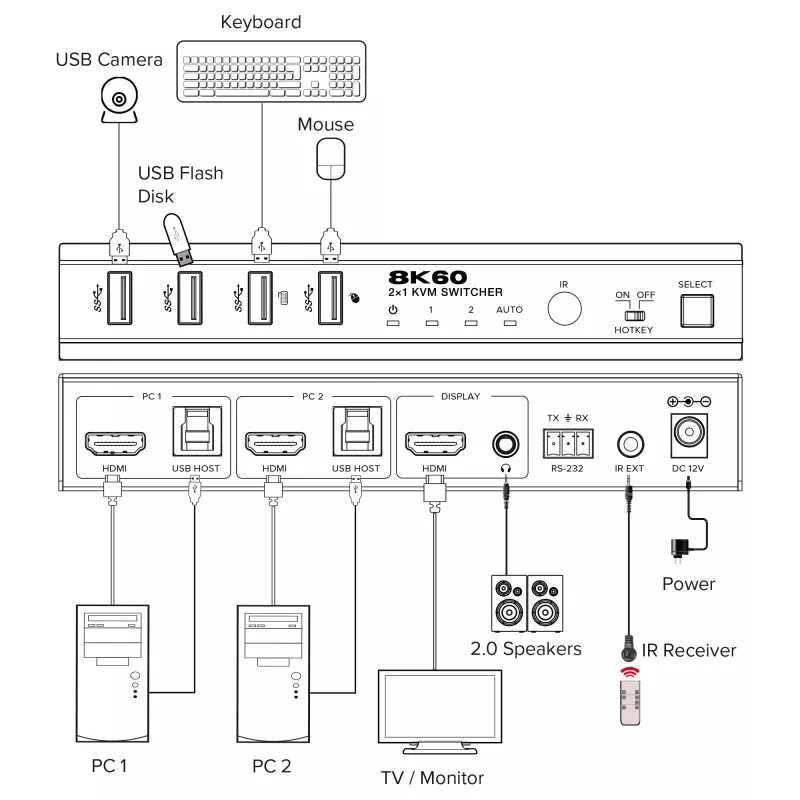

• Control two computers with one mouse, keyboard, and HDMI display
• Supports up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI 2.1 with HDCP 2.3, CEC, and no video/audio latency
• 4 × USB 3.2 Gen.1 ports for sharing peripherals
• Switching via button, hotkey, IR remote control, or RS-232
• ESD protection: ±8 kV air / ±4 kV contact

Specifications

• Brand: InLine
• MPN: 57885C
• HDMI inputs: 2 × HDMI (type A, 19-pin)
• HDMI output: 1 × HDMI (type A, 19-pin)
• Video resolution: up to 8K@60 Hz, 4K@120 Hz/144 Hz, 1080P@240 Hz
• HDMI standard: HDMI 2.1
• HDCP compatibility: HDCP 2.3
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Colour depth: 8, 10, 12 bits
• Video/audio latency: none
• CEC support: yes
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Audio output L/R: PCM 2.0CH (3.5 mm stereo)
• USB ports: 4 × USB 3.2 Gen.1 (USB-A), 2 × USB Host (USB-B)
• Supported USB speeds: USB 3.2 Gen.1 (with hotkey OFF), USB 1.1 (with hotkey ON)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm jack socket (38 kHz)
• Dimensions: 175 × 100 × 30 mm
• Weight: 506 g
• Housing: metal, black
• Operating ambient temperature: 0–40 °C
• Storage ambient temperature: –20–60 °C
• Humidity: 20–90 % RH (non-condensing)
• ESD protection: ±8 kV air / ±4 kV contact
• Recommended HDMI cable lengths: Up to 2 m: 8K / 4K@120Hz; Up to 5 m: Ultra HDMI 2.1; Up to 10 m: 1080p with standard cable
• External power supply: External plug-in power adapter with lock
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 12.0 V DC
• Output current: max. 1.0 A
• Output power: 12.0 W
• Average efficiency in operation: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W

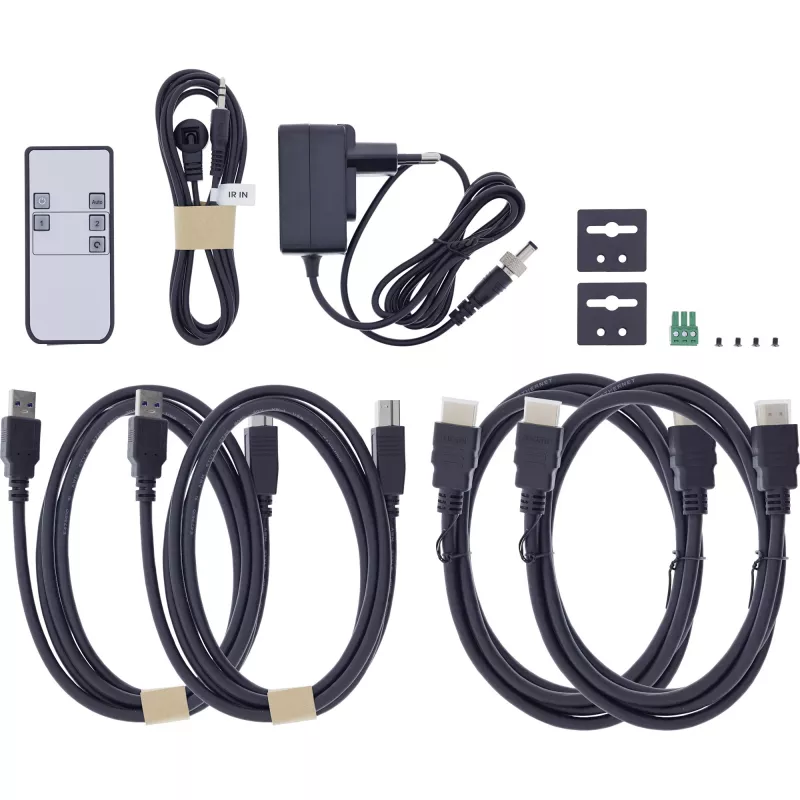

• Scope of delivery: 1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz; 1 × IR remote control; 1 × IR receiver cable (1.5 m, 38 kHz); 2 × HDMI cable (1.5 m); 2 × USB 3.2 Gen.1 cables (1.8 m, USB-A to USB-B); 1 × 12 V/1 A power supply with lock and country adapters; 1 × 3-pin terminal connection plug; 2 × mounting brackets; 4 × screws (KM3×4); 1 × user manual in German/English
• Complies with HDMI standard: 2.0
• Article type: Switch
• Article height: 3.0cm
• Article length: 10cm
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
• Country of origin: Taiwan
