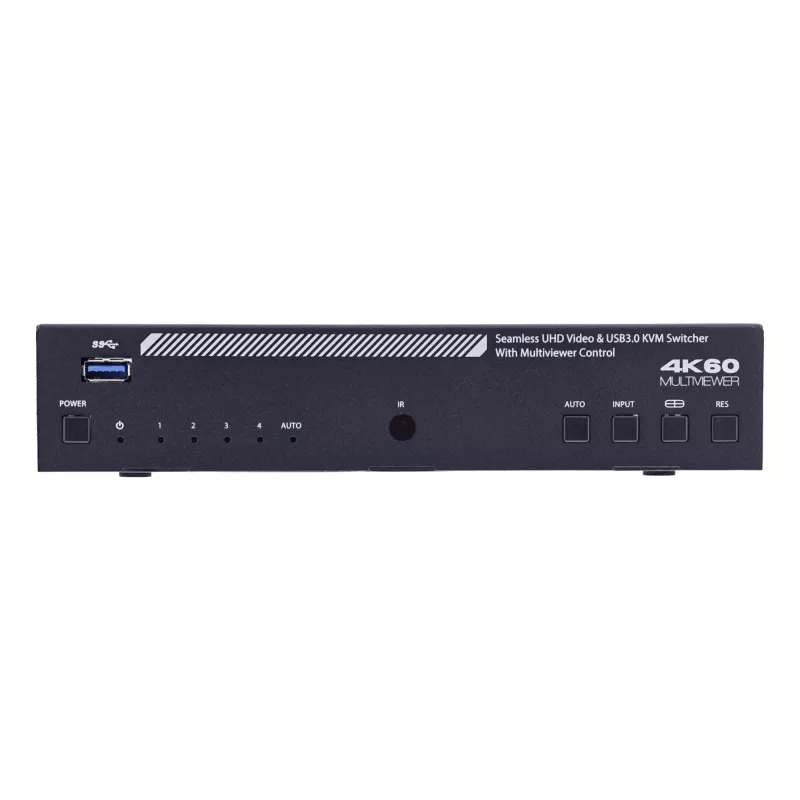

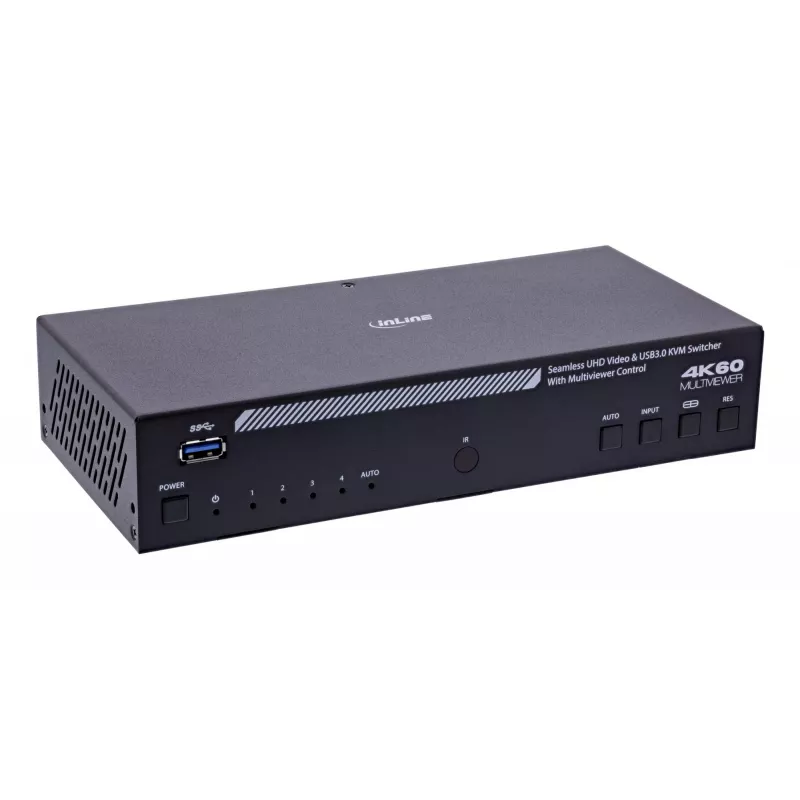

The InLine 57885I is a 4-way HDMI KVM switch with multiviewer function, allowing you to control and monitor up to four HDMI sources simultaneously on a single UHD display. It supports resolutions up to 3840×2160@60Hz (4:4:4) and offers flexible multiview modes including PIP, PBP, Triple and Quad. Switching can be done via front panel, IR, hotkey, OSD, RS-232 or controller software.

Key features

  • Control up to four HDMI sources on one screen
  • Multiview modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
  • Seamless switching via button, hotkey, IR, OSD, RS-232 or software
  • USB KVM for shared keyboard, mouse and USB devices
  • Supports 4K@60Hz, HDR and multiple audio formats
  • EDID management with predefined and user-defined modes
  • Metal housing, black

Specifications

  • Brand: InLine
  • MPN: 57885I
  • Product colour: Black

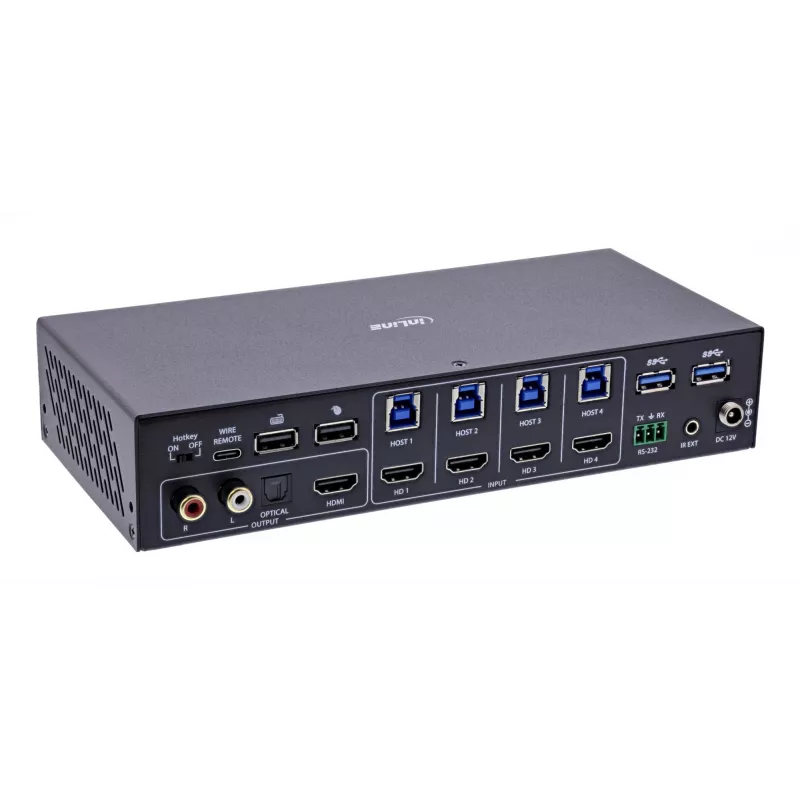

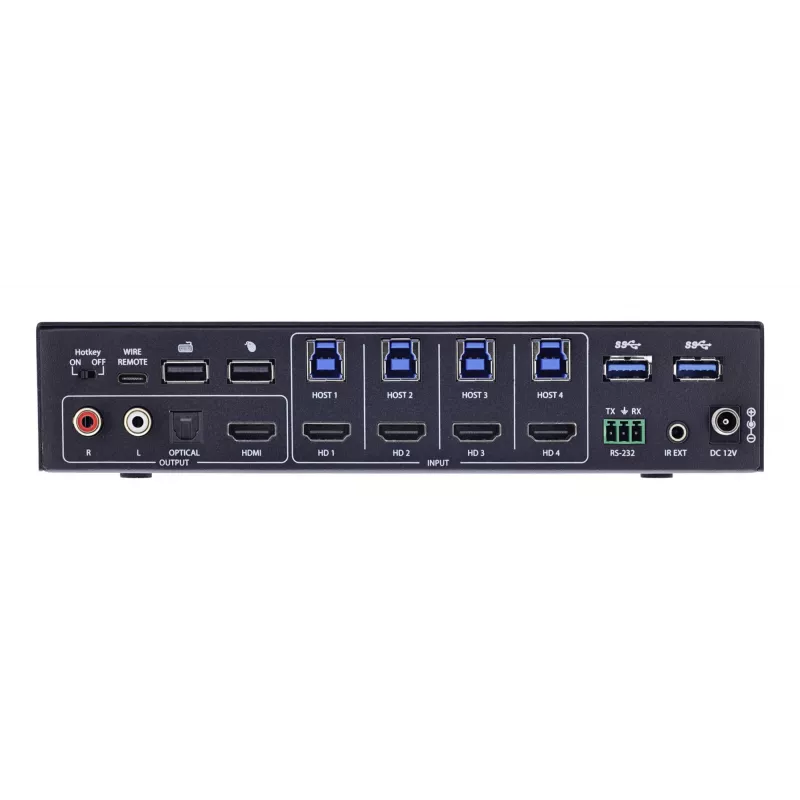

  • Inputs: 4 × HDMI (Type A, 19-pin), 4 × USB 3.2 Gen.1 host (USB-B)
  • Outputs: 1 × HDMI OUT (Type A), 1 × 3.5 mm stereo jack (L/R, PCM2.0), 1 × S/PDIF (optical)
  • Additional connections: 2 × USB 2.0 for mouse/keyboard, 3 × USB 3.2 Gen.1 for USB devices, 1 × RS-232 (3-pin terminal connection), 1 × IR EXT (3.5 mm stereo)
  • Supported resolutions: up to 3840×2160@60Hz (4:4:4), 18 Gbps
  • Supported audio formats: HDMI: PCM2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-HD, DSD; SPDIF: Dolby Digital/Plus, DTS 5.1, PCM2.0; 3.5 mm L/R: PCM2.0
  • HDMI version: 2.0b
  • HDCP compatibility: 2.2 / 1.x
  • Colour depth: 8 / 10 / 12 bits
  • Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • Control: Front panel, IR, hotkey, OSD, RS-232, controller software
  • EDID management: Predefined and user-defined modes
  • Housing: Metal, black
  • Dimensions: 220 × 100 × 44 mm
  • Weight: 443 g
  • Operating temperature: 0–40 °C
  • Storage temperature: –20–60 °C
  • Humidity: 20–90% (non-condensing)
  • ESD protection: ±8 kV air / ±4 kV contact
  • External power supply: external plug-in power adapter with lock, input 100–240 V AC, 50/60 Hz, output 12.0 V DC, max. 2.5 A, 25.0 W
  • Average operating efficiency: 89.26%
  • Efficiency at low load (10%): 85.60%
  • Power consumption at zero load: 0062 W

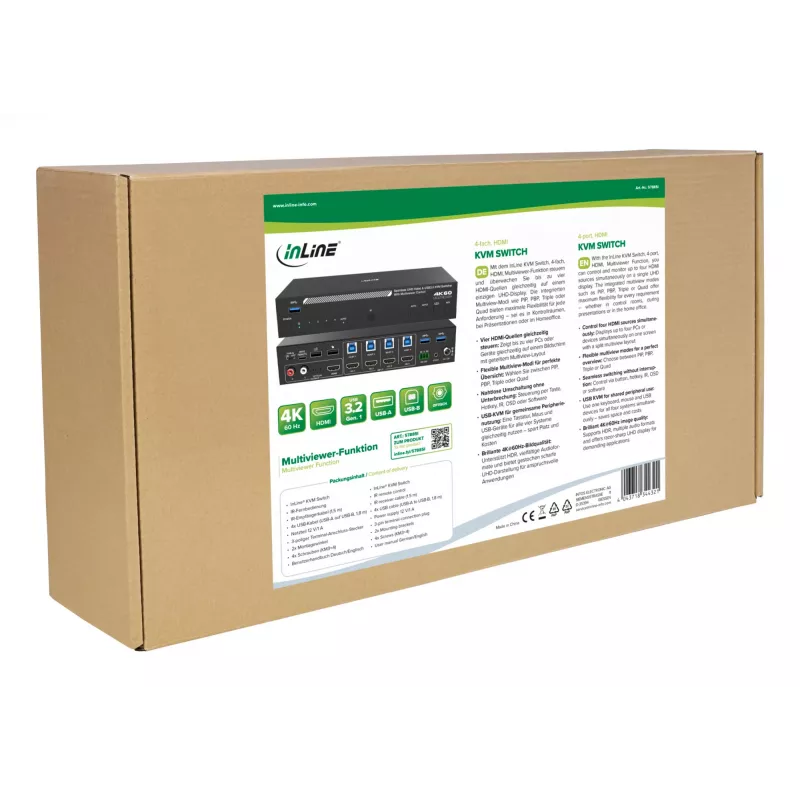

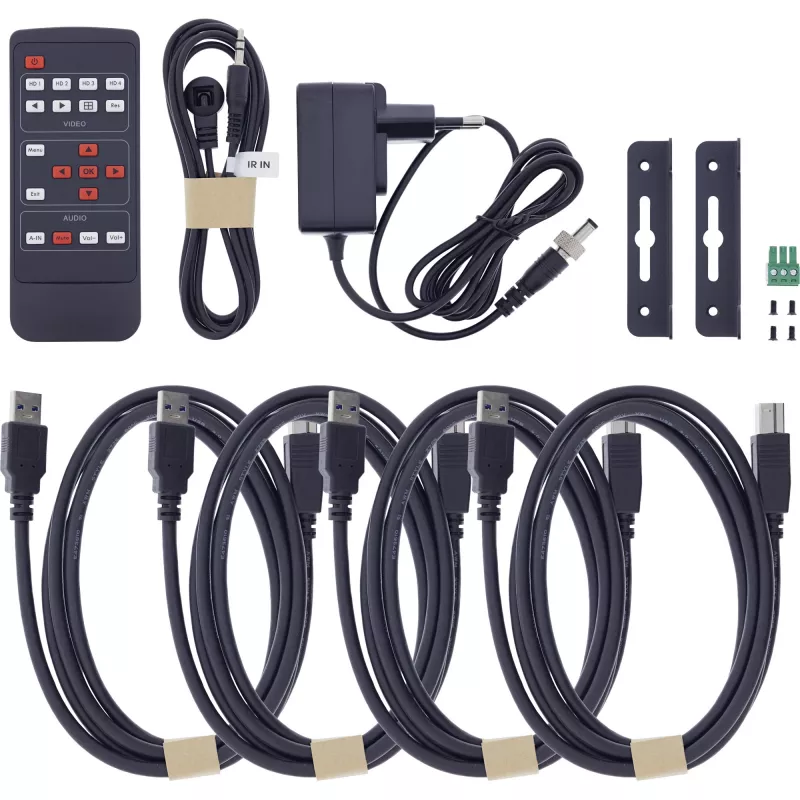

  • Scope of delivery: 1 × InLine KVM switch, 1 × IR remote control, 1 × IR receiver cable (38 kHz, 1.5 m), 4 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m), 1 × 12 V/2.5 A power supply with lock, 1 × 3-pin terminal connection plug, 2 × mounting brackets, 4 × screws (KM3×4), 1 × user manual in German/English
  • Type 1: KVM switch
  • Number of CPU: 4
  • Incl. KVM cableset: Yes
  • Type 2: 4-fold HDMI KVM
  • Number of consoles: 1
  • Audio per CPU: 3.5mm jack x1
  • Screen connectors per console: 1
  • Video outputs per console: HDMI x1
  • Periphery inputs per CPU: USB-B female x1
  • Video inputs per CPU: HDMI x1
  • USB peripherals: Yes
  • USB specification: USB 3.2 Gen.1
  • Article width: 10cm
  • Article length: 22cm
  • Article height: 4.5cm
  • Complies with HDMI standard: 2.1
  • Manufacturer No.: 57885I
  • EAN Barcode: 4043718344321
  • Country of origin: Taiwan
Aspectos destacados
  • Control rooms and monitoring stations
  • Presentation setups and meeting rooms
  • IT desks and multi-PC workplaces
  • Home office environments requiring multiple system access
  • Inputs: 4 × HDMI (Type A), 4 × USB 3.2 Gen 1 (USB-B)
  • Outputs: 1 × HDMI OUT (Type A), 1 × 3.5 mm stereo jack, 1 × S/PDIF (optical)
  • Additional ports: 2 × USB 2.0 for keyboard/mouse, 3 × USB 3.2 Gen 1 for USB devices, 1 × RS-232, 1 × IR EXT
  • Maximum resolution: 3840×2160 @ 60Hz (4:4:4), 18 Gbps
  • HDMI version: 2.0b; HDCP compatibility: 2.2 / 1.x
  • Colour depth: 8 / 10 / 12 bit; colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • Supported audio formats via HDMI: PCM2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS‑HD, DSD; SPDIF: Dolby Digital/Plus, DTS 5.1, PCM2.0; 3.5 mm L/R: PCM2.0
  • Multiview modes: Single, PIP, PBP (1/2), Triple (1/2), Quad (1/2)
  • Control methods: Front panel, IR remote, hotkey, OSD, RS-232, controller software
  • EDID management: Predefined and user-defined modes
  • Housing: metal, black; dimensions: 220 × 100 × 44 mm; weight: 443 g
  • Operating temperature: 0–40 °C; storage: –20–60 °C; humidity: 20–90% non-condensing
  • ESD protection: ±8 kV air / ±4 kV contact
  • Power: external power adapter, 12 V DC, max. 2.5 A
