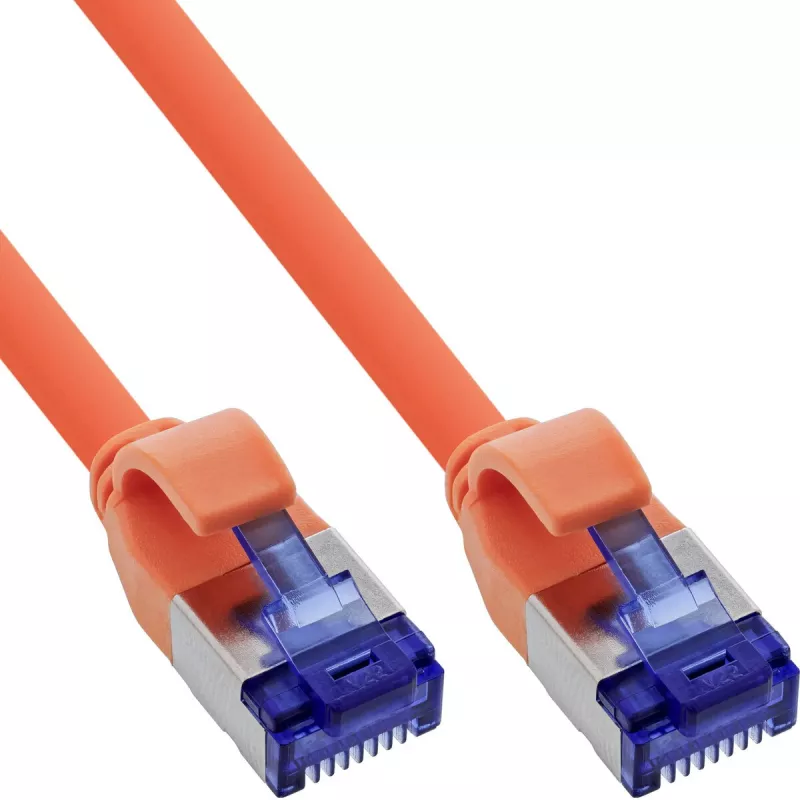

InLine 74901O Cable de conexión Slim, Cat.6A, S/FTP, TPE (LSZH), flexible, PoE, naranja, 1 m

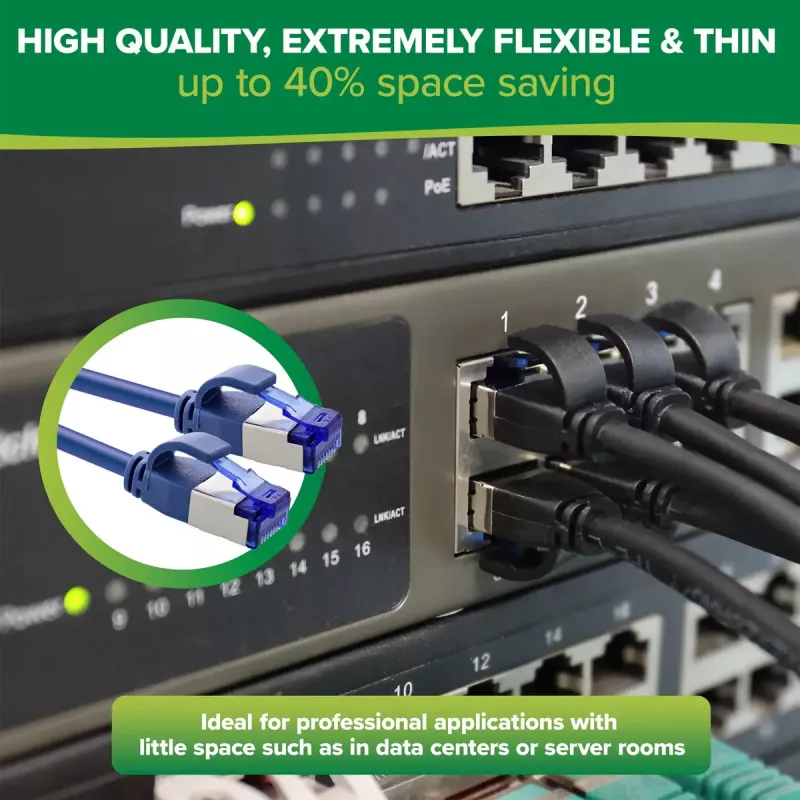

The InLine 74901O is a slim Cat.6A S/FTP patch cable with a flexible TPE (LSZH) sheath, designed for space-saving network installations. It supports data transfer rates up to 10 Gbit/s and PoE up to 87 watts (4PPoE), making it suitable for powering devices such as IP cameras, access points, and VoIP telephones over the network cable.

Key features

• Slim design with AWG28 wire gauge
• Full Cat.6A transmission quality up to 500 MHz

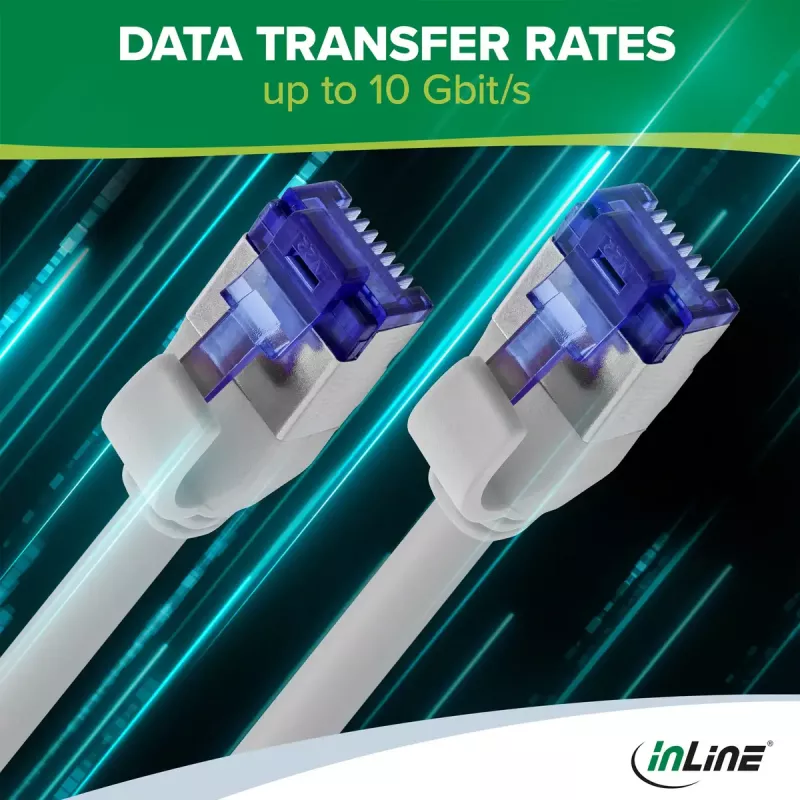

• Data transfer rate up to 10 Gbit/s
• PoE support up to 87 watts (4PPoE)

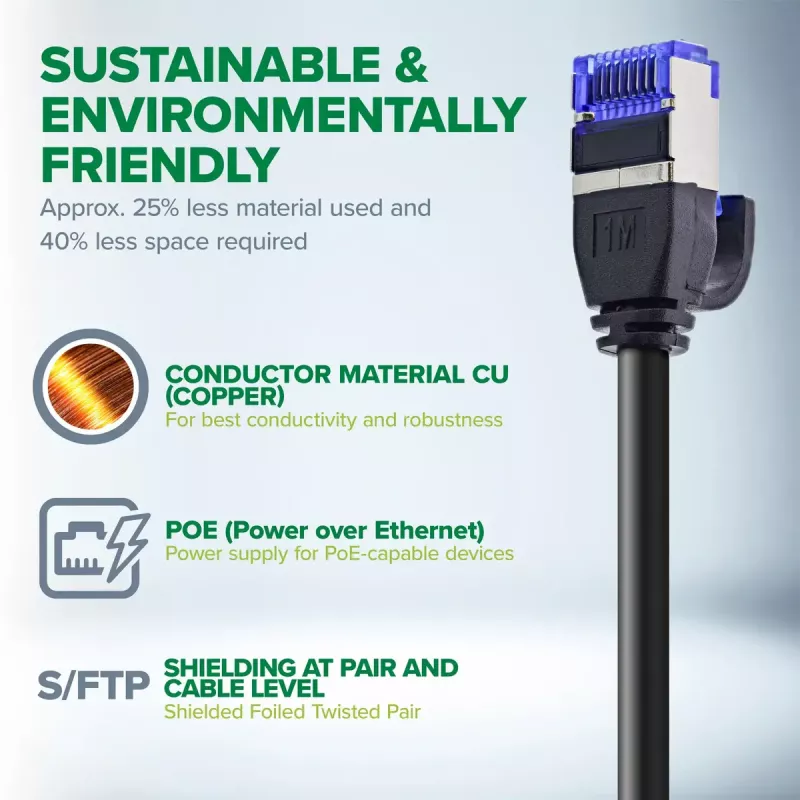

• S/FTP shielding (pair and overall shielding)
• TPE (LSZH) sheath: halogen-free, flame-retardant, flexible
• Pure copper conductors
• Gold-plated contacts
• 1:1 assignment according to T568B
• Operating temperature: -20 to +75 °C

Specifications

• Brand: InLine
• MPN: 74901O
• Product colour: Orange
• Length: 1 m
• Category: Cat.6A
• Cable construction: S/FTP
• Sheath material: TPE (LSZH)
• Wire gauge: AWG28
• Outer diameter: 4.1 mm
• Connector side A: RJ45 plug straight
• Connector side B: RJ45 plug straight
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• PoE support: Yes, up to 87 watts (4PPoE)
• Wire pairs used for power transmission: All
• Operating temperature: -20 to +75 °C
• Storage temperature: -20 to +75 °C
