InLine 95020 Set de cables de baja tensión/media tensión/alta tensión

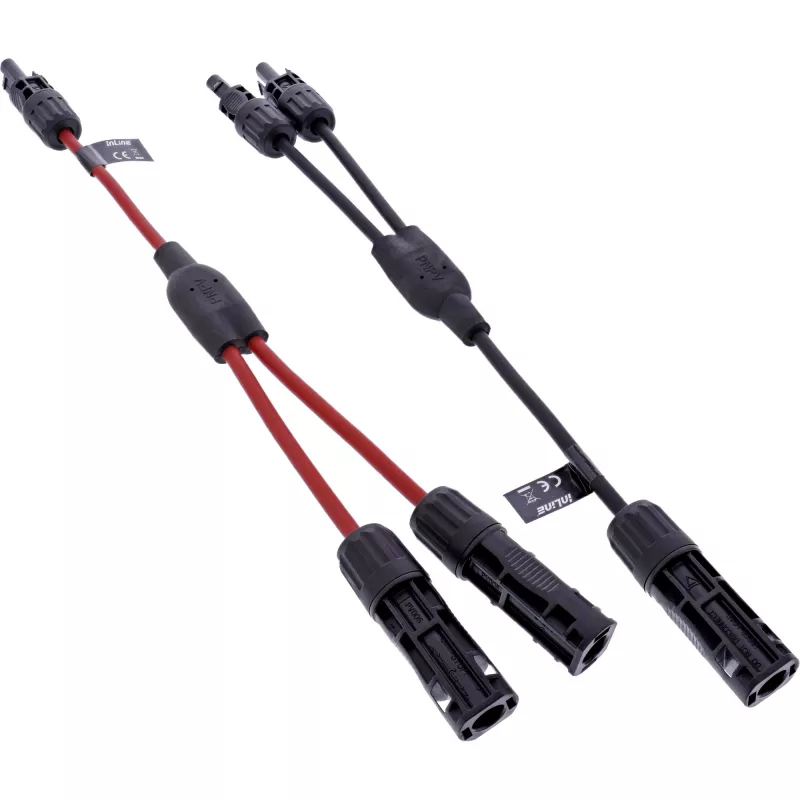

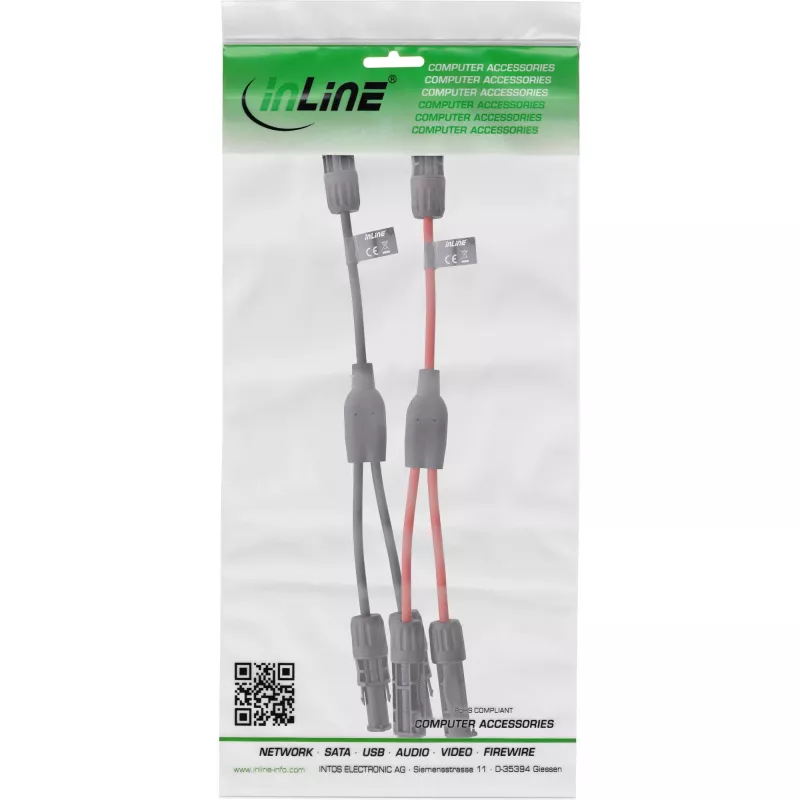

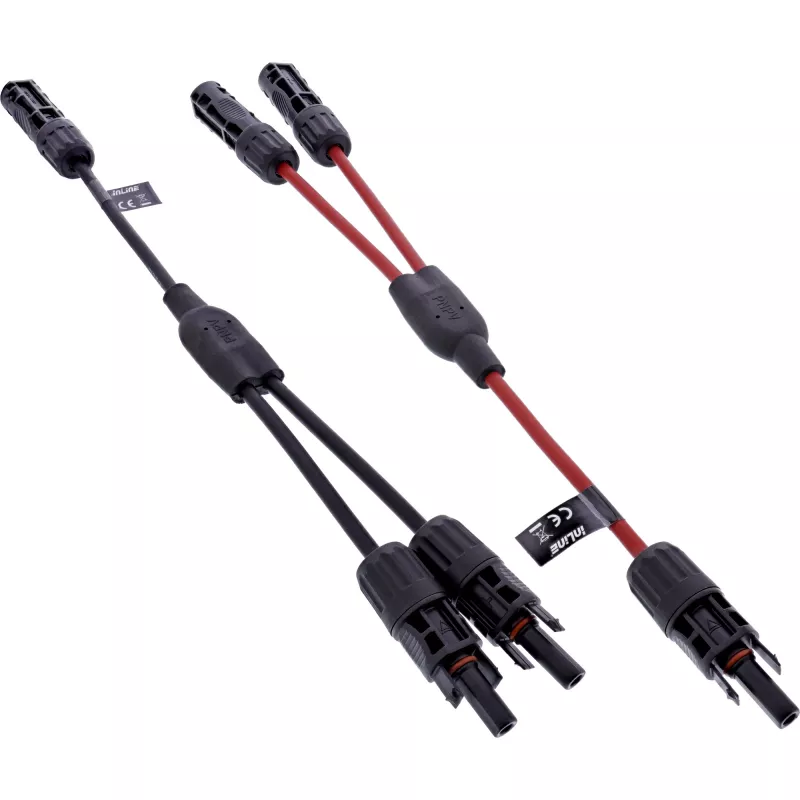

The InLine 95020 cable set is a high-quality solar cable Y-splitter designed to distribute DC connections to the corresponding solar modules. It features a conductor cross-section of 4 mm², supports up to 1500 V and 30 A, and comes with male and female connectors. The cable length is 0.36 m, making the set suitable for short-distance branching in photovoltaic installations.

Advantages

The InLine 95020 offers a compact Y-splitter design that ensures reliable DC power distribution between solar panels. Its 4 mm² conductors and 1500 V / 30 A rating meet common photovoltaic system requirements. Pre-assembled male and female connectors simplify installation and reduce assembly time.

Suitable for

Key specifications

How to use

Connect the male and female connectors of the InLine 95020 to the corresponding connectors on the solar panels or extension cables, ensuring correct polarity. Use the 0.36 m cable length for short-distance branching inside the array. Verify that the system voltage does not exceed 1500 V and that the expected current is within the 30 A rating before energizing the circuit.

Recommendations

Inspect connectors and cables for damage before installation, maintain proper polarity, and follow local electrical codes and safety guidelines when integrating the cable set into a photovoltaic system.
