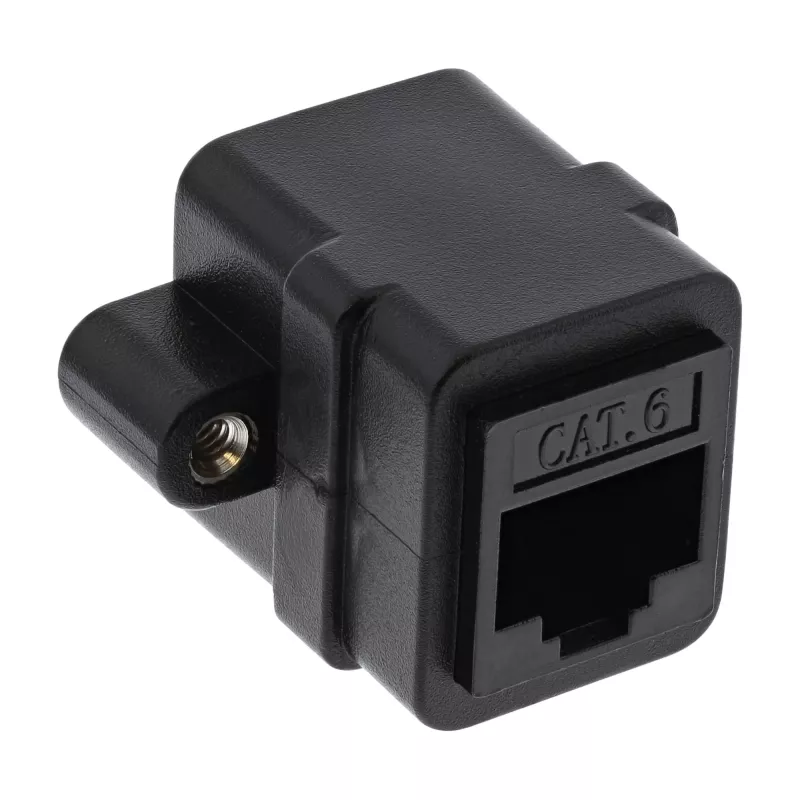

InLine Acoplador de cable de red UTP 2x RJ45 hembra para instalación

The InLine Patch Cable Coupling UTP 2x RJ45 female is designed for installation with a screw mount. It features an opening for an RJ45 socket of approximately 16x16mm and a hole spacing of approximately 25mm. The coupling provides 1:1 assignment and supports PoE and PoE+ according to IEEE 802.3af and IEEE 802.3at.

Key features

• 2x RJ45 female connectors

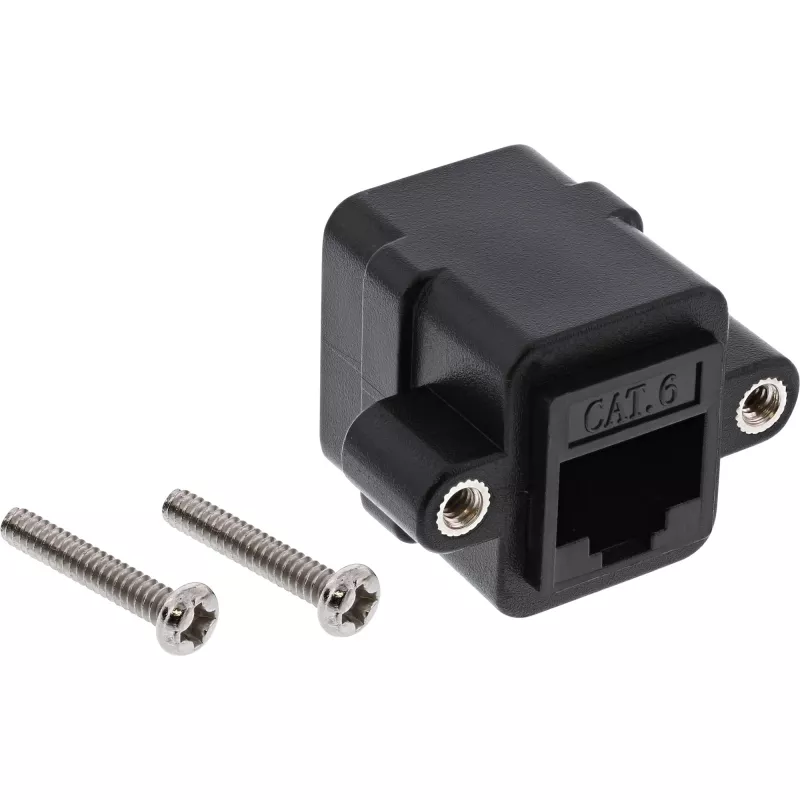

• For installation with screw mount
• Opening for RJ45 socket approx. 16x16mm
• Hole spacing: approx. 25mm
• 1:1 assignment
• PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
• ISO/IEC 11801:2002 Class E
• ISO/IEC EN 50173 Class E
• EIA/TIA 568-C Cat.6

Specifications

• Brand: InLine
• MPN: 69990Y
• Product colour: Black
• Side A: RJ45 female
• Side B: RJ45 socket
• Thread length of attached screws #4-40: approx. 15mm
• Storage temperature: -40°C to +70°C
• Operating temperature: 10°C to +60°C
