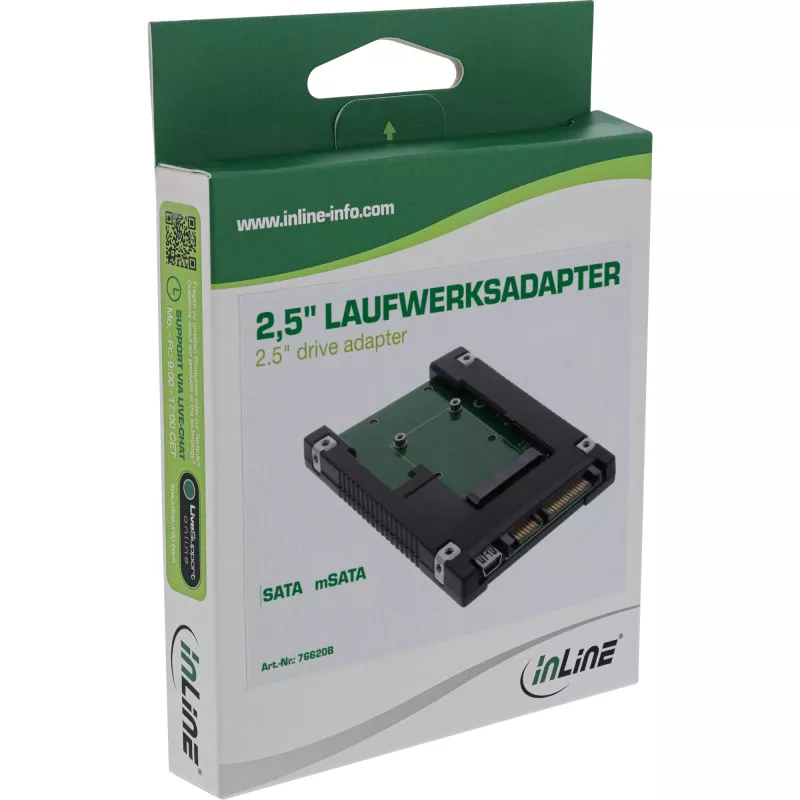

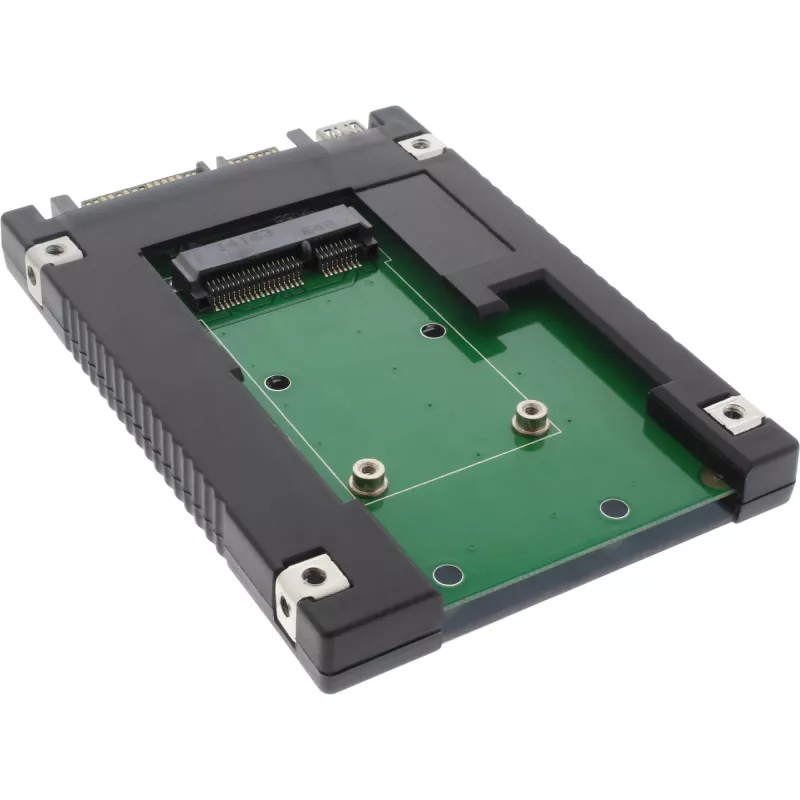

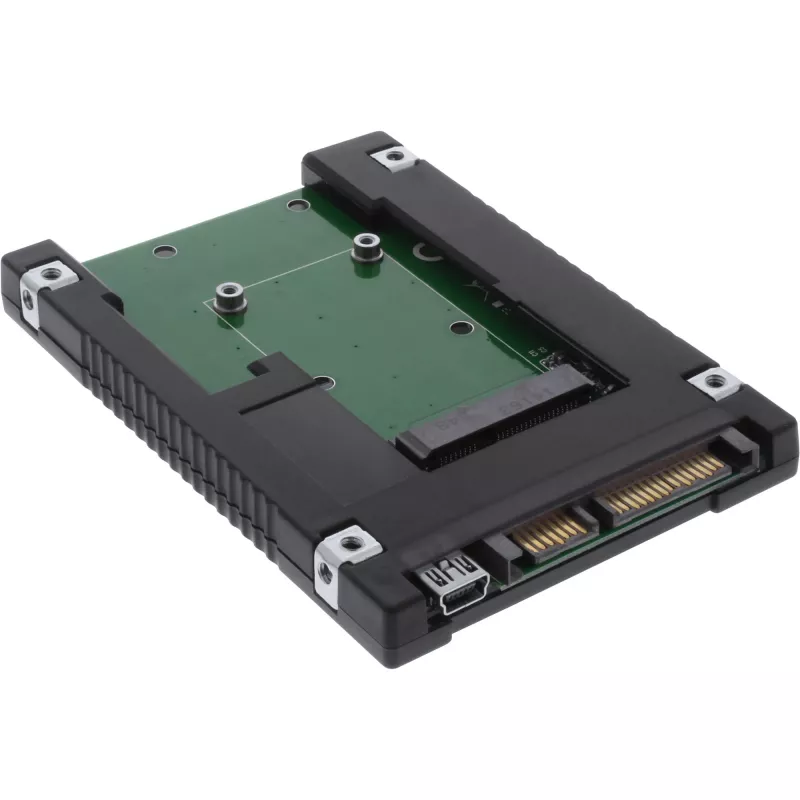

InLine adaptador de unidad 2,5 pulgadas SATA a SSD mSATA 76620B negro

This 2.5" SATA to mSATA SSD adapter lets you use an mSATA SSD as a standard 2.5" SATA drive in laptops and desktop PCs. After installation the mSATA SSD is detected by the operating system as a regular SATA storage device and can be formatted or set as a boot drive. The adapter is compatible with Intel mSATA SSDs and also supports USB-type mSATA modules, and comes in a black finish.

Advantages

The adapter provides a cost-effective way to repurpose mSATA SSDs for systems with 2.5" SATA bays. Its compact design enables straightforward installation, and durable construction ensures stable operation. The device allows the connected mSATA SSD to function as a bootable drive and maintains compatibility with common operating systems.

Suitable for

• Upgrading storage in laptops that accept 2.5" SATA drives
• Installing an mSATA SSD into desktop PCs with 2.5" bays or drive brackets
• Using mSATA SSDs as boot drives
• Testing or repurposing Intel and USB-type mSATA modules

Key specifications

• Form factor conversion: mSATA to 2.5" SATA
• Supported media: Intel mSATA SSD and USB-type mSATA modules
• Interface to host: SATA (2.5")
• Product colour: Black
• Manufacturer part number (MPN): 76620B
• EAN: 4043718217007

How to use

Power off the computer and open the drive bay or access panel. Insert the mSATA SSD into the adapter’s mSATA connector and secure it according to the adapter’s mounting method. Install the assembled adapter into the 2.5" SATA bay and connect the SATA data and power cables if required. Close the case, power on the system and enter the BIOS/UEFI or the operating system to verify the drive is detected. Format or configure the drive as needed and set it as the boot device if desired.

Recommendations

Handle the mSATA SSD and adapter with anti-static precautions. Verify compatibility of the mSATA module type before installation and back up important data prior to configuring the drive as a boot device.
